ASSY-HARNESS,GAUGE,DGTL

9 month ago

50 0 

2 year

Product details

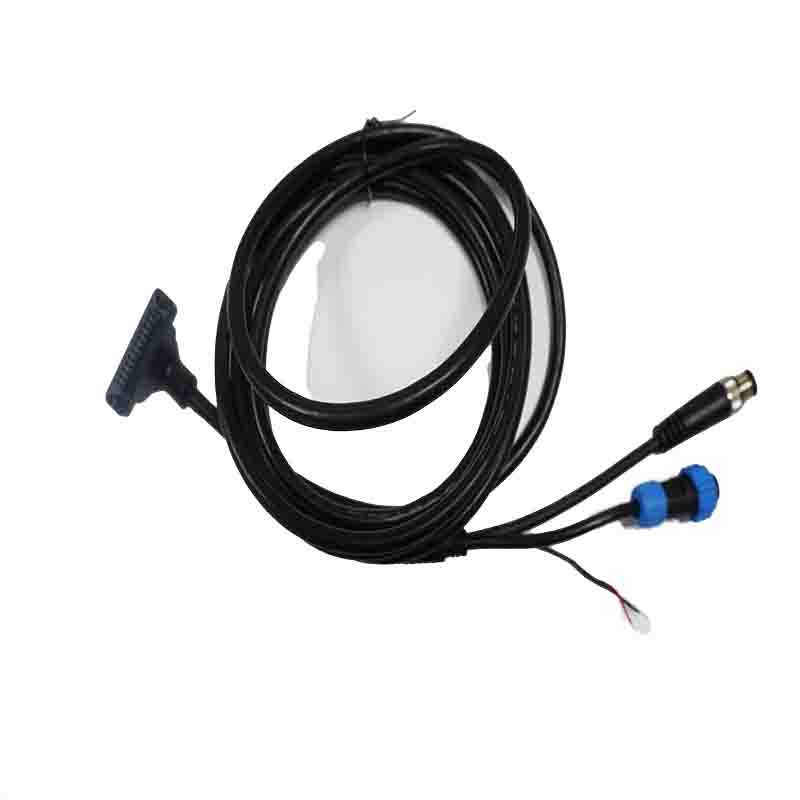

In the intricate ecosystem of modern automotive technology, the Digital Gauge Harness Assembly (ASSY-HARNESS,GAUGE,DGTL) stands as a critical communication backbone, bridging the gap between a vehicle’s operational systems and its digital dashboard. This unassuming yet vital component ensures that drivers receive accurate, r

eal-time data, making it indispensable for both safety and performance in contemporary automobiles.

A digital gauge harness is more than just a bundle of wires; it is a precision-engineered assembly designed to transmit electrical signals between sensors, control modules, and digital gauges. Unlike traditional analog harnesses, it is optimized for the high-speed, low-noise data transfer required by modern digital dashboards, which display everything from speed and fuel levels to engine diagnostics and advanced driver-assistance system (ADAS) alerts. Each wire is insulated with durable materials to resist heat, vibration, and electromagnetic interference—common challenges in the harsh under-hood environment.

Item	Details
Product Name	High Accuracy DGTL Assy Harness System
Type	Multi-Connector High Precision Digital Signal Wiring Harness
Voltage	12V / 24V / 48V Industrial & Automotive System, Customized Available
Length	Customized Length Available (Standard 2m/3m/5m Options)
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Working Temperature	-40℃~+105℃ Or Customized
Specific Shipping Cost	Please Contact Us

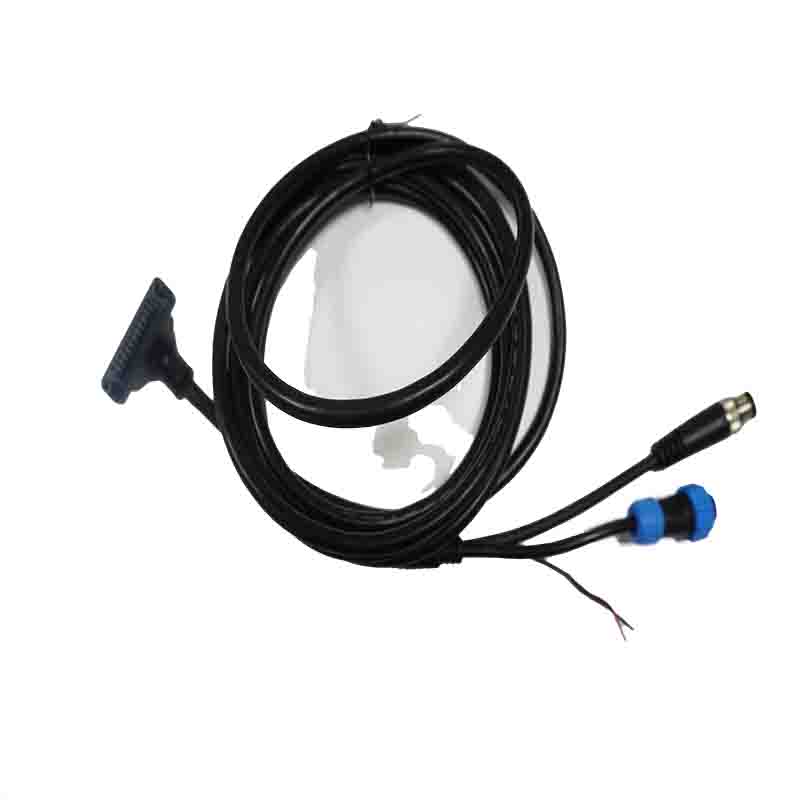

The technical sophistication of these harnesses directly impacts a vehicle’s functionality. For instance, when a driver checks the digital speedometer, the harness transmits pulses from the wheel speed sensor to the gauge cluster in milliseconds, ensuring the reading is instantaneous and accurate. Similarly, it relays critical engine temperature data to prevent overheating, or battery voltage information to alert drivers of electrical issues. In electric vehicles, this role becomes even more crucial, as the harness must handle data from high-voltage systems while maintaining strict safety standards. DGTL Harness Gauge Tool

Manufacturers prioritize reliability and scalability in designing digital gauge harnesses. Modular designs allow for easy integration with different vehicle models, reducing production costs while ensuring compatibility with evolving technology. Quality control is paramount: each harness undergoes rigorous testing, including continuity checks, voltage resistance tests, and environmental stress screening, to ensure it meets automotive industry standards such as ISO 15022.

As vehicles evolve toward full electrification and autonomous driving, the role of the digital gauge harness will only grow. Future iterations may incorporate fiber-optic elements for even faster data transfer, or smart features like self-diagnostic capabilities to detect wire degradation. In essence, the ASSY-HARNESS,GAUGE,DGTL is not just a component—it is the nervous system that keeps drivers informed and vehicles operating at their best, proving that even the most behind-the-scenes parts are foundational to modern automotive innovation.
