In the realm of diesel engine maintenance and diagnostics, two components stand out for their ability to streamline data access and ensure operational reliability: the
Cummins 9P male-female green straight connectors and the OBD Y-type adapter. Together, this combination forms a robust interface that bridges Cummins engines’ proprietary systems with universal on-board diagnostics (OBD) protocols, becoming an indispensable asset for technicians and fleet managers worldwide.

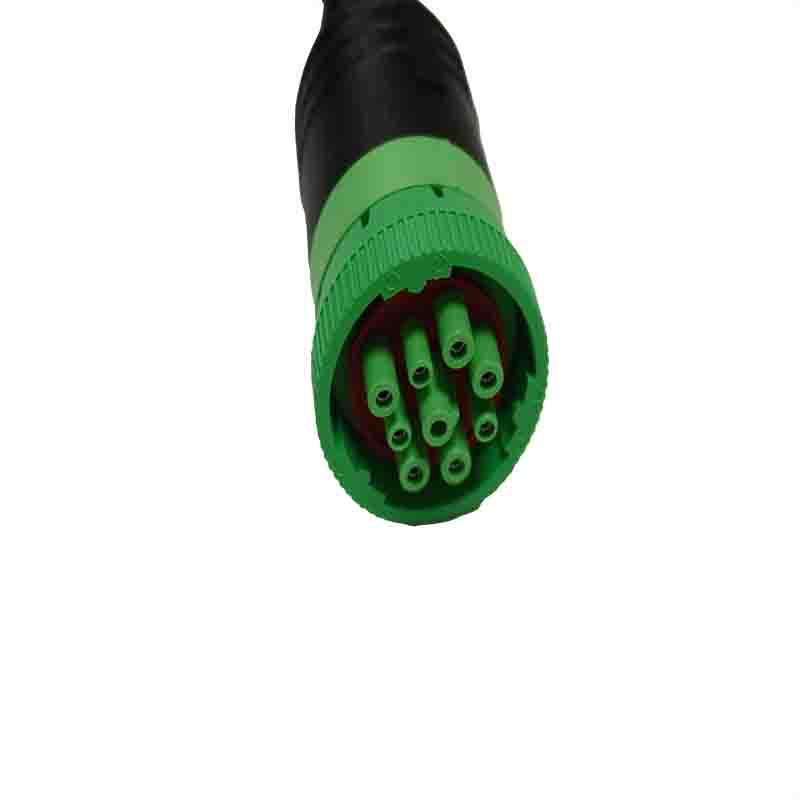

The Cummins 9P green straight connectors are engineered with precision to meet the rigorous standards of diesel engine environments. Their distinct green housing serves as a visual identifier for Cummins’ dedicated diagnostic ports, eliminating confusion with other connectors in cluttered engine bays. The male and female counterparts feature secure, straight-line connectivity—designed to resist vibration, moisture, and thermal stress, common challenges in heavy-duty applications like trucks, generators, and construction equipment. Each pin within the 9P configuration is gold-plated to ensure low-resistance signal transmission, a critical factor for capturing accurate data from
engine control modules (ECMs) without interference.

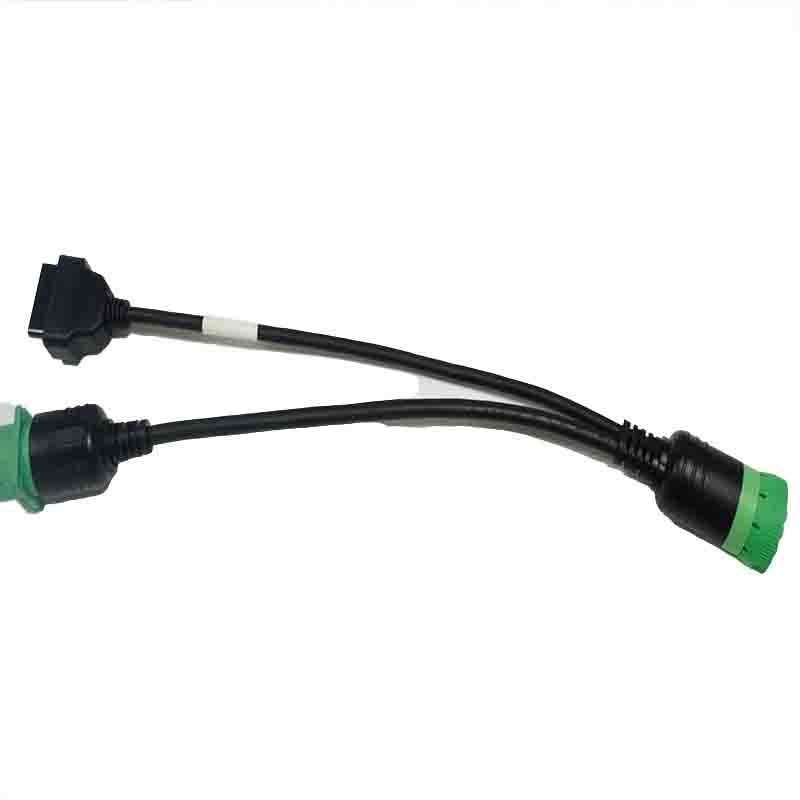

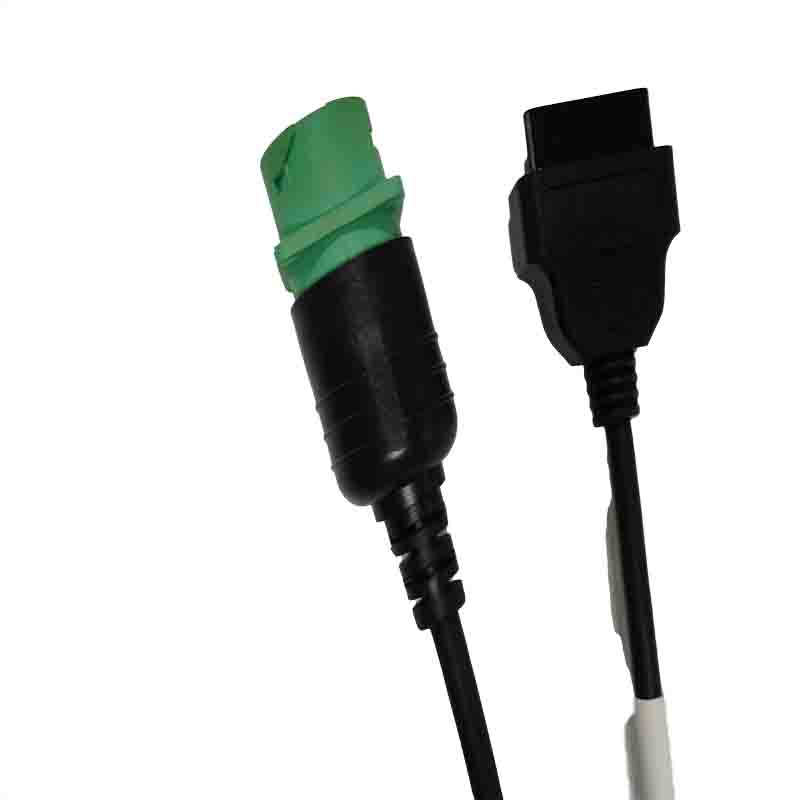

Complementing these connectors is the OBD Y-type adapter, a cleverly designed component that solves a common diagnostic dilemma: the need to access both proprietary Cummins data and universal OBD-II information simultaneously. The “Y” shape splits the connection, allowing one end to interface with the
9P connector (linking to the Cummins ECM) and the other two ends to connect to diagnostic scanners—one supporting Cummins’ proprietary software (such as Insite) and the other enabling OBD-II compliance checks. This eliminates the need for repeated connector changes, saving technicians valuable time during routine inspections or troubleshooting.
The synergy between these components delivers tangible benefits in real-world scenarios. For example, when diagnosing a Cummins-powered truck, a technician can use the 9P green connectors to tap into engine-specific data (like fuel injection timing and turbocharger performance) via Cummins software, while the OBD Y-adapter simultaneously feeds emissions-related data to an OBD-II scanner for regulatory compliance testing. This dual-access capability ensures that both performance issues and emissions standards are addressed in a single diagnostic session.
Durability and compatibility are central to their design. The
9P connectors are built to withstand temperatures ranging from -40°C to 125°C, while the OBD Y-adapter features flame-retardant housing to meet automotive safety standards. Together, they support seamless integration with a wide range of Cummins engines, from the B-Series to the X15, making them a versatile solution for mixed fleets. In an industry where downtime translates to significant costs, the Cummins 9P green straight connectors and OBD Y-type adapter emerge as more than just tools—they are enablers of efficient, accurate, and cost-effective engine maintenance.
