Lashing Wire Clamp

D Type Cable Lashing Clamps used in CATV and telephone Aerial Construction to secure terminating lashing wire or ground wire to a separate strand. There are two types D type Cable lashing wire clamp and E type Cable lashing wire clamp.

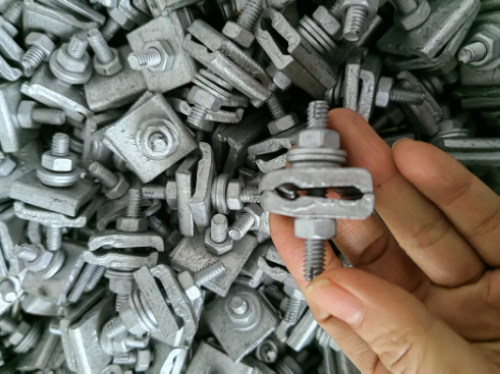

Yokelink D cable Lashing Clamp clamp has two separate clamping plate pieces, and is composed of a stud, two washers, and two bug Nuts, Lashing clamps ensure bug nuts are tightened and the lashing wire itself is terminated properly. A mechanical galvanized finish provides extra corrosion resistance and safety against weather.

Lashing Wire Clamp Features:

Accepts 1/4" (6.6M) messenger strand

Designed for easy and permanent termination of lashing wire to messenger strand

Constructed of high quality steel, mechanically plated per ASTM B695

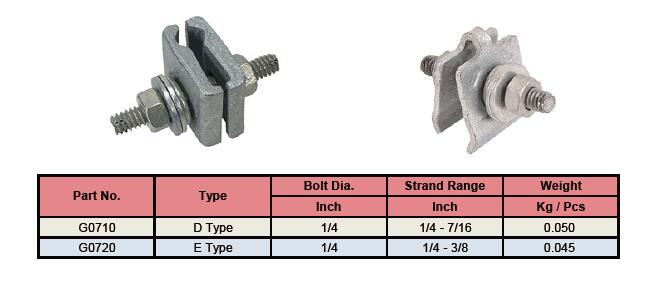

Lashing Wire Clamp Specifications:

Lashing Wire Clamp Type: D Type / E Type

Strand Range: 1/4-7/16 inch , 1/4-3/8 inch.

Material: Galvanized Steel / Stainless Steel

The strength of the lashing wire clamp jaws is more than 50,000 PSI. This makes the safety features of the product even better, as you can be sure the clamp jaws will not come undone when securing the lashing wire. This also minimizes damage to the cables.

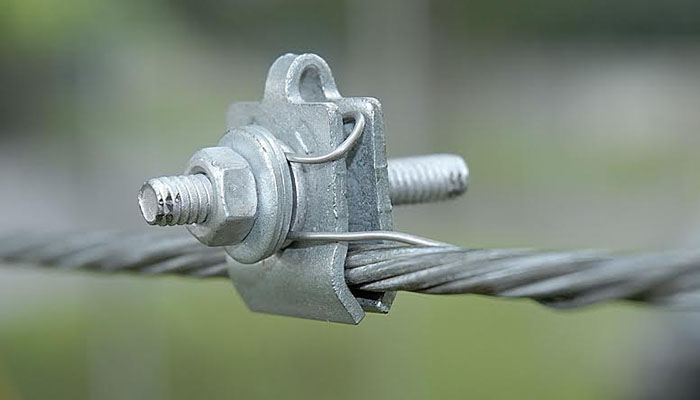

Lashing clamps ensure bug nuts are tightened and the lashing wire itself is terminated properly. Terminating lashing wires stops them from breaking, which would result in poor connection, injury, or damage to the entire span of the lashing wire.

Key Features:

* Two grooved plates on opposite sides of the strand

* Plates secured by a threaded stud with a flanged shoulder and washer to block slippage, and two hexagonal nuts

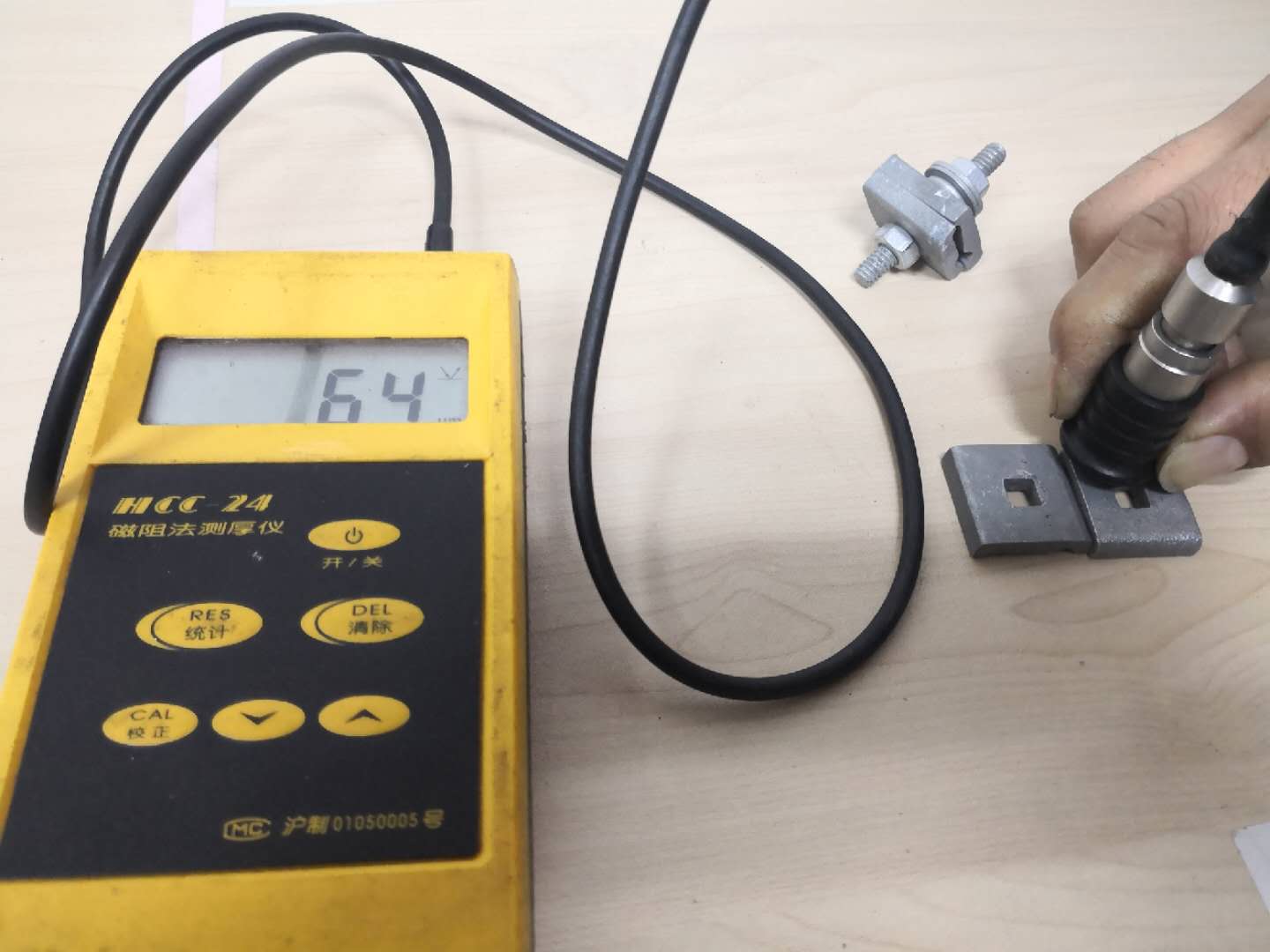

* A mechanical galvanized finish provides extra corrosion resistance and safety against weather

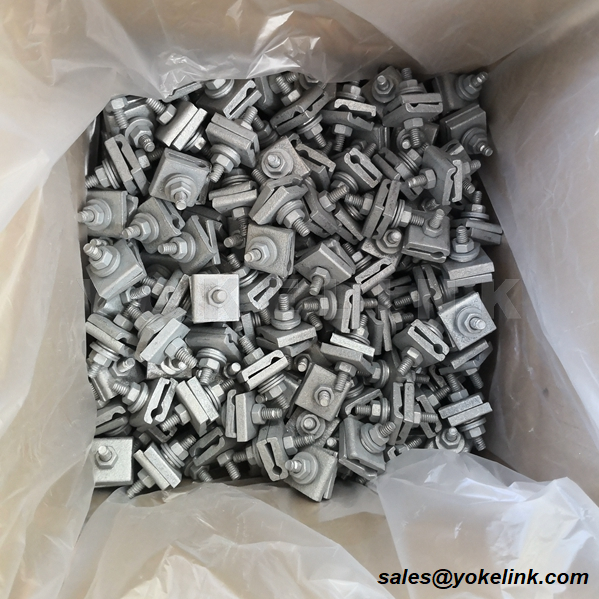

* Sold in 100-piece cartons
