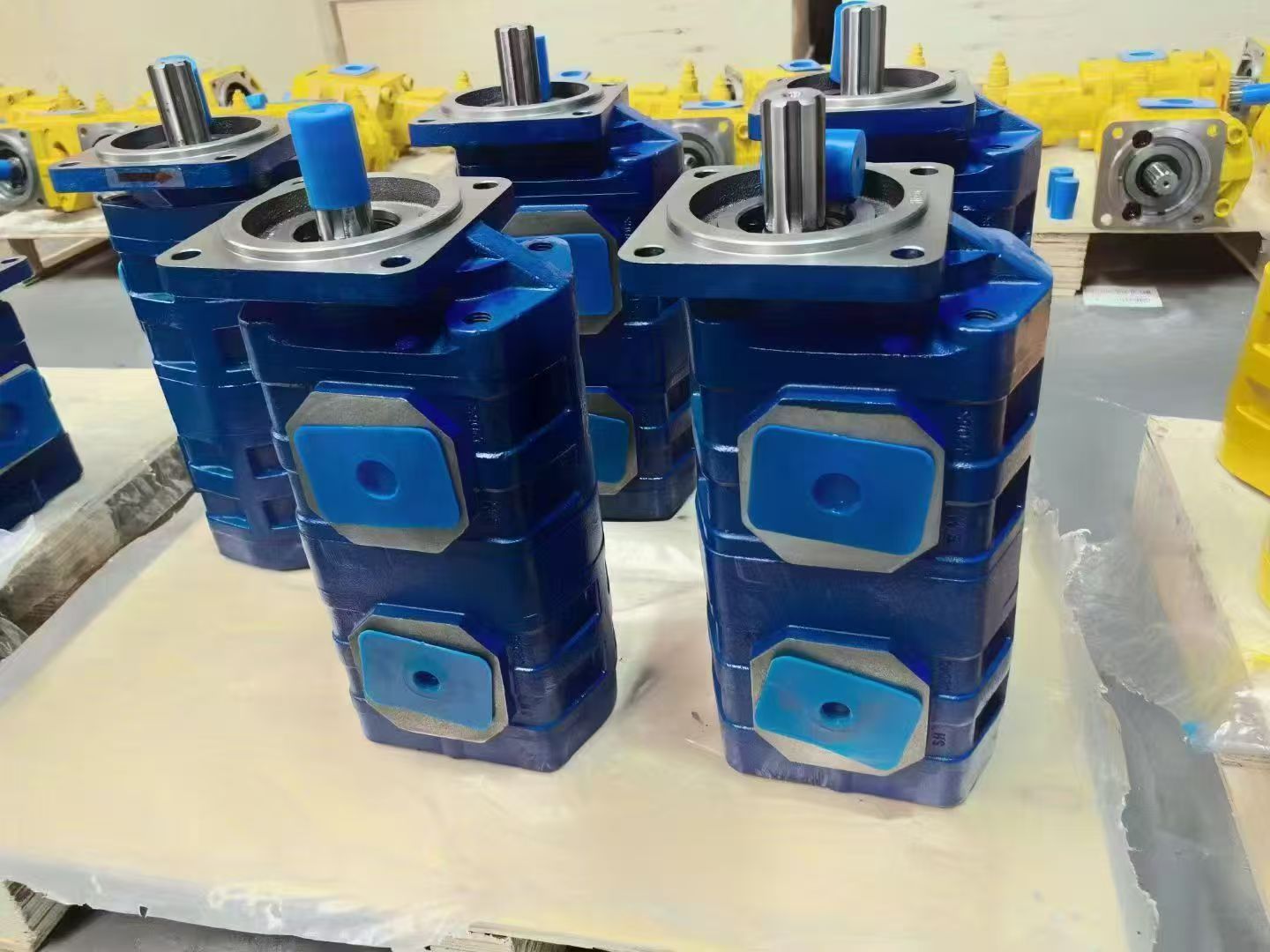

F5100 series high pressure gear pump
4 week ago
Product details
F5100 series high pressure gear pump displacement from 25 to 80 ml/r, the highest pressure can reach 25 MPa, the unique secondary seal structure can effectively improve the performance of the pump, side plate structure advanced, surface coating treatment, pressure and wear resistance, there are many types of connection can be designed as a single pump or multi-pump requireme
F5100 Series High-Pressure Gear Pump
I. Product Features
1. High Pressure Resistance: The F5100 series high-pressure gear pump can withstand working pressures up to 31.5 MPa or even higher, making it suitable for scenarios requiring high-pressure power, such as the vibration systems of vibratory rollers and the walking drive systems of large combine harvesters.
2. High Efficiency: This series of gear pumps boasts a high volumetric efficiency, typically reaching over 92%. It effectively reduces energy loss and enhances the overall efficiency of the system.
3. Excellent Impact Resistance: Designed with special features, the F5100 series high-pressure gear pump exhibits good impact resistance and can operate stably under harsh working conditions.
4. Low Noise Level: Through optimized design and precision manufacturing, this series of gear pumps generates relatively low noise during operation, contributing to an improved working environment.
5. Strong Anti-Pollution Capability: The F5100 series high-pressure gear pump has relatively low requirements for oil cleanliness and can resist, to a certain extent, impurities and pollutants in the oil, thereby extending its service life.
6. Compact Size and Light Weight: Adopting a compact design, this series of gear pumps is small in size and light in weight, facilitating easy installation and maintenance.
II. Application Scenarios
The F5100 series high-pressure gear pump is widely used in various hydraulic engineering machinery, especially in working conditions that require a pressurized oil source, such as loaders, road rollers, and cranes. For example, in the vibratory wheel of a vibratory roller, this series of gear pumps can provide stable high-pressure power, generating sufficient exciting force to ensure that the road surface meets the required compaction standards.
III. Technical Parameters (Examples)
The following are some possible technical parameters of the F5100 series high-pressure gear pump (specific parameters may vary depending on the model and manufacturer):
【表格】
Parameter Name Parameter Value
Nominal Pressure 31.5 MPa
Maximum Pressure 35 MPa (or higher)
Rated Rotational Speed 2000 rpm (or as per specific model)
Volumetric Efficiency ≥92%
Operating Temperature Range -20°C to 80°C (or as per specific model)
Material Cast Iron (or other high-strength materials as per specific model)
IV. Selection and Usage Considerations
1. Selection: When selecting an F5100 series high-pressure gear pump, it is essential to determine the appropriate model and parameters based on the specific application scenario and requirements. Factors such as the maximum working pressure, flow rate, and operating temperature range required by the system should be considered.
2. Installation and Commissioning: During installation and commissioning, it is crucial to follow the manufacturer's instructions strictly to ensure the correct installation and normal operation of the pump.
3. Maintenance and Upkeep: Regular maintenance and upkeep of the gear pump are key to extending its service life and maintaining stable performance. It is necessary to regularly check the oil cleanliness, replace filter elements, and inspect the condition of vulnerable parts such as seals.
