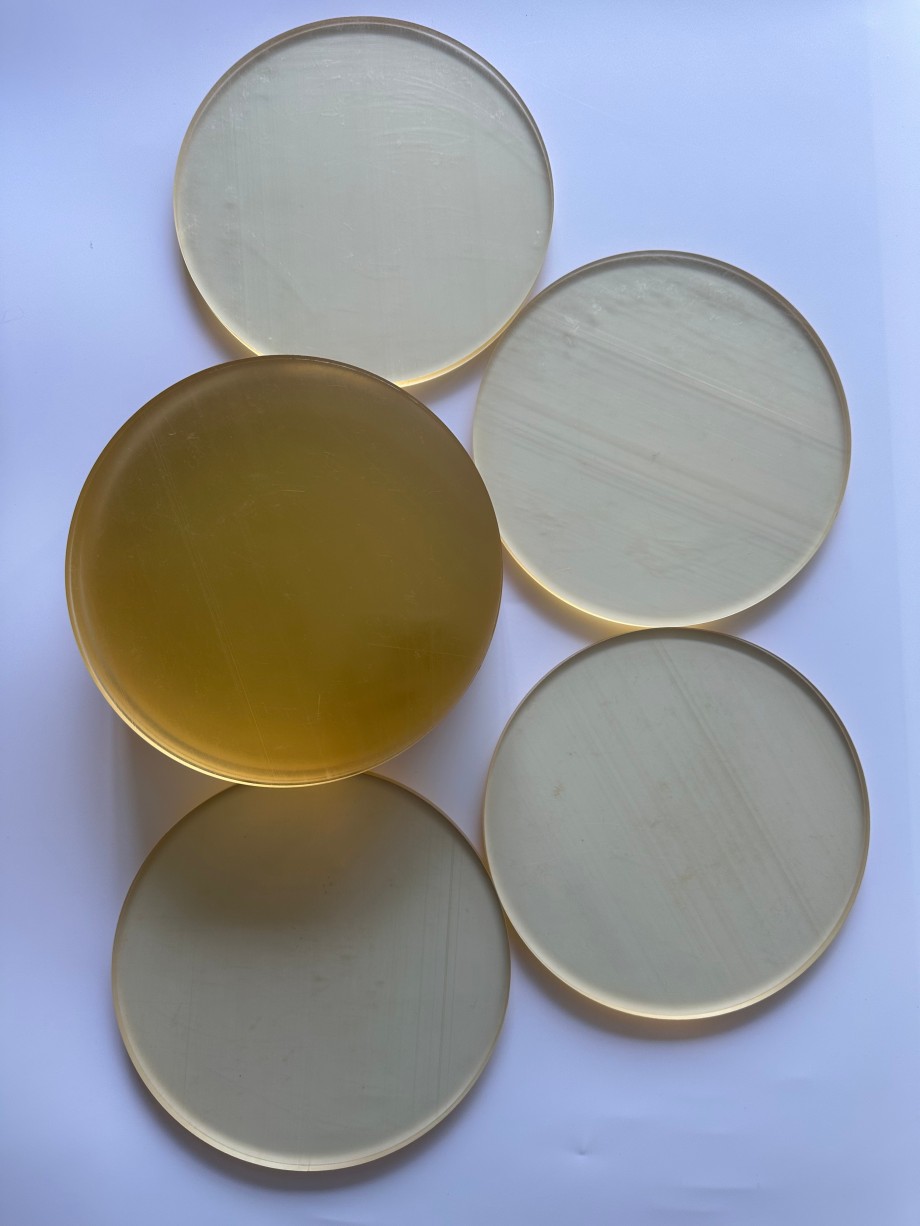

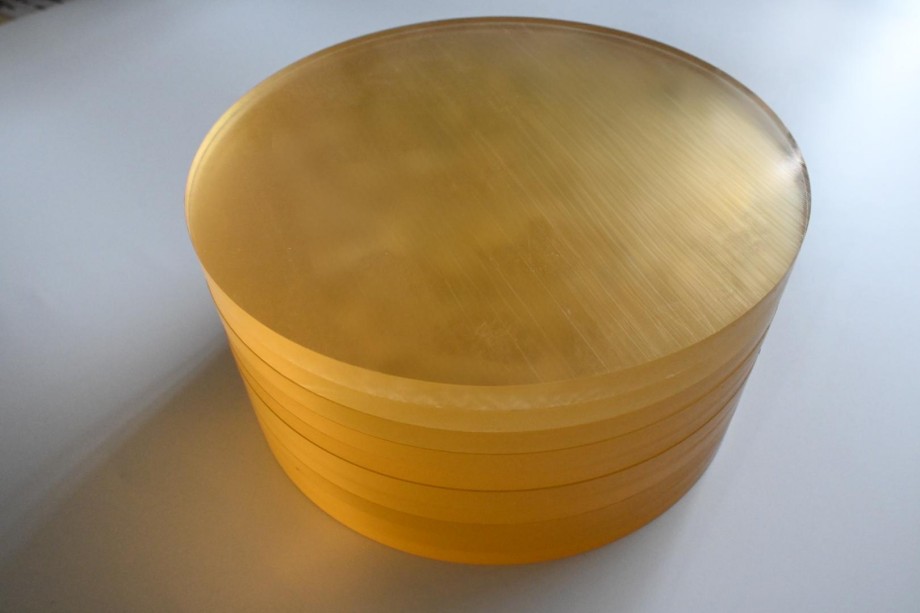

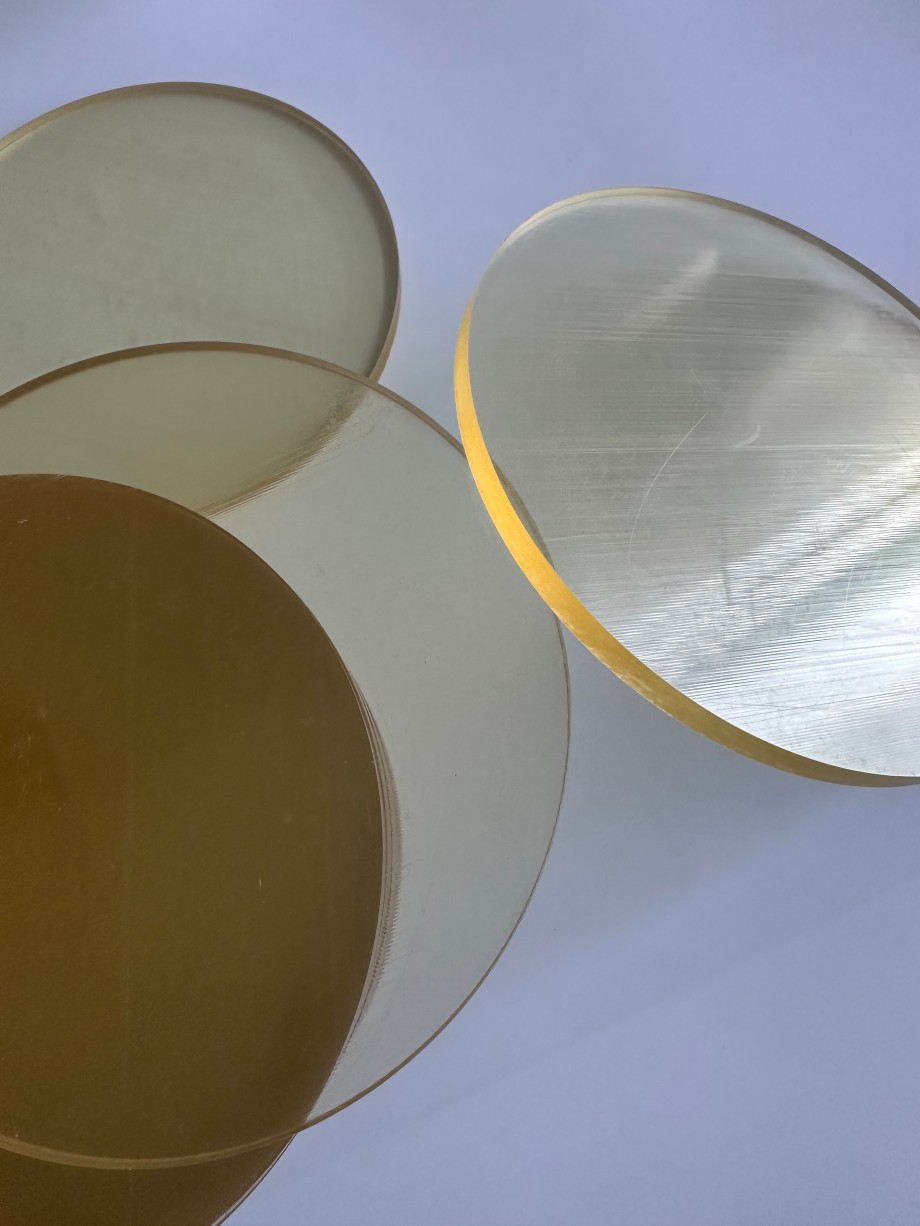

PSU plastic Polysulfone Disc

3 month ago

17 0 

Hony Engineering Plastics Limited

6 year

Product details

Udel® Polysulfone (PSU)

Udel® PSU resins offer a superior combination of highperformance properties that include:

• Excellent thermal stability

• High toughness and strength

• Good environmental stress cracking resistance

• High heat deflection temperature, 174°C (345°F)

• Combustion resistance

• Transparency

• Approved for food contact and potable water

• Low creep

This manual has been compiled to provide design

engineers with the necessary information to effectively

use Udel® PSU. It contains the mechanical, thermal,

and chemical properties of these materials and

recommendations for processing and part design.

Material Selection

Udel® PSU resins are amorphous sulfone polymers and

offer many desirable characteristics, such as resistance

to hydrolysis, thermal stability, retention of mechanical

properties at elevated temperatures, clarity, and

transparency.

This material is available in both unfilled grades and glassreinforced grades. The unfilled grades are available in a

range of melt viscosities.

Udel® PSU is indicated when higher thermal capability,

inherent flame resistance, better chemical resistance,

and improved mechanical properties are required. The

recommended maximum service temperature shown in

Table 1 may help you position polysulfone among other

engineering materials.

Mechanical Properties

The mechanical properties typically listed in a material

supplier’s data sheet are short-term properties. In some

cases, these values may be considered an indication of

the absolute maximum capability of a material.

These property values are obtained by preparing a

special test specimen, then subjecting the specimen to

an increasing load until failure, usually rupture, occurs.

The test specimens are specifically designed to obtain

reproducible results when tests are run under ideal

conditions. Because the tests are run quickly, the timerelated effects are minimized.

Environmental factors are eliminated by running the

tests in a controlled environment, thereby avoiding any

reduction in properties from chemical exposure.

Short-term mechanical properties usually include:

• Tensile strength and modulus

• Flexural strength and modulus

• Notched and unnotched izod impact

• Compressive strength

• Shear strength

• Surface hardness
