Product details

I. Basic Information

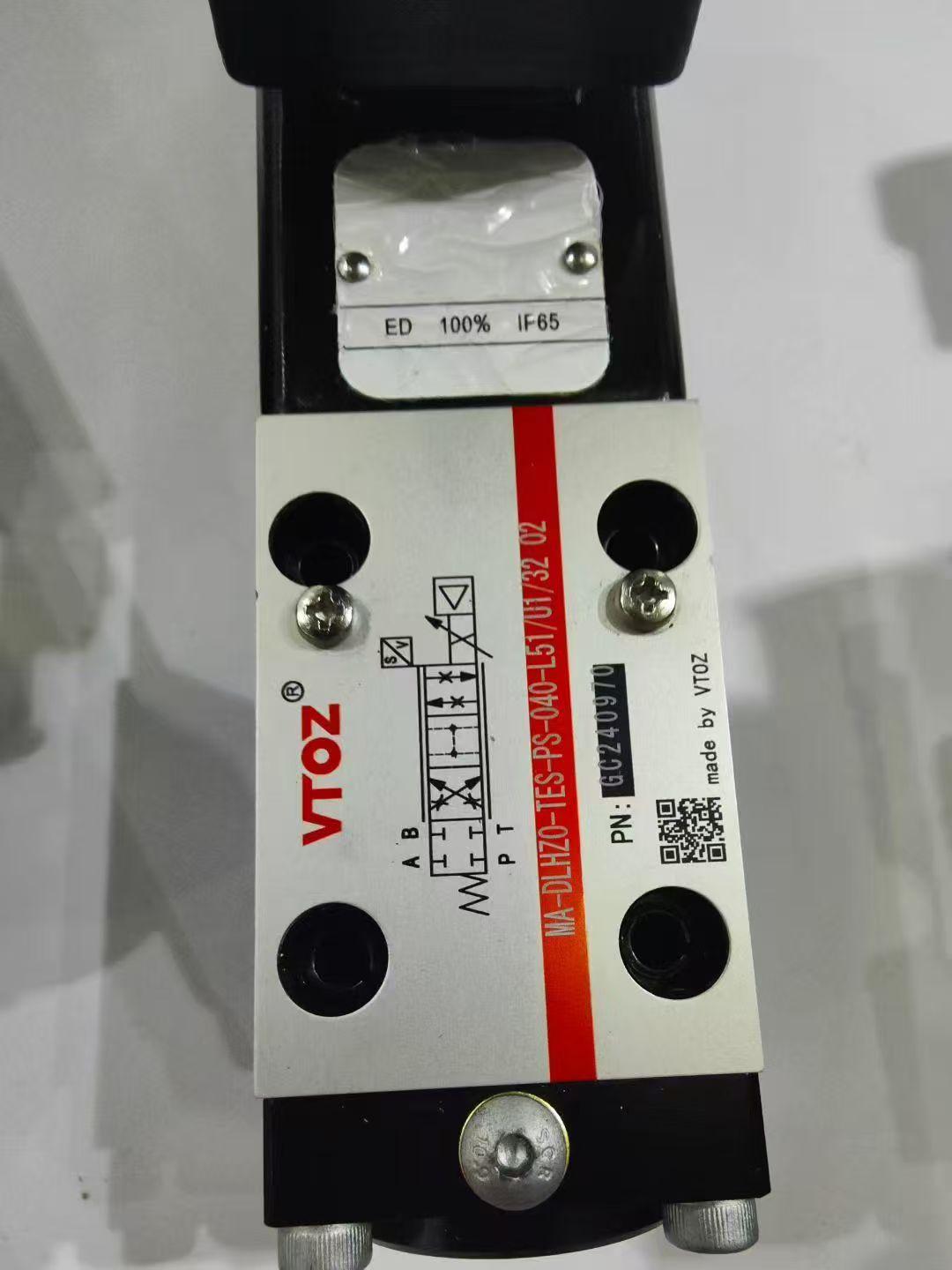

• Brand: VTOZ (Weituosi)

• Model: MA-DLHZO-TES-PS-040-L51/01/32 02

• Type: Proportional Valve (specifically, a servo proportional valve)

• Origin: Suzhou, Jiangsu, China

II. Structural Features

• Direct-acting Slide Valve Structure: This proportional valve adopts a direct-acting slide valve structure, characterized by its compact design and rapid response.

• Proportional Solenoid and LVDT Position Sensor: A proportional solenoid is rigidly connected to an LVDT position sensor at its rear end, providing directional control and flow control without pressure compensation based on the magnitude of the electrical signal input to the amplifier.

• High-Precision Machining: The four-sided ultra-precision machined valve spool slides within a precisely machined and hardened valve sleeve, achieving high overlap accuracy. The five-chamber valve body incorporates a precisely quenched valve sleeve, within which the valve spool slides under the combined action of the proportional solenoid and spring. The axial position of the valve spool is closed-loop controlled by an LVDT sensor mounted on the proportional solenoid, ensuring excellent dynamic and static performance.

III. Performance Advantages

• Pollution Resistance and Low Sensitivity: This proportional valve exhibits strong pollution resistance and low sensitivity, enabling stable operation in harsh working environments.

• Stable Quality: High-quality materials and advanced machining processes ensure consistent and reliable product quality.

• Superior Dynamic and Static Performance: Closed-loop control achieves excellent dynamic and static performance, meeting the needs of high-precision hydraulic systems.

IV. Application Scenarios

• Industrial Hydraulic Systems: Suitable for medium-to-high pressure, low-pulsation, and low-noise industrial hydraulic systems, such as machine tools and presses.

• Closed-Loop Control Valves: Can be used independently or as a pilot valve in all closed-loop controlled valves.

• Other Fields: Also applicable in injection molding machines, textile machinery, printing machinery, light industrial machinery, and other fields for flow and directional control.

V. Technical Specifications (Partial)

• Drive Method: Electromagnetic drive

• Applicable Medium: Oil

• Operating Pressure: Varies depending on the specific model and specifications, generally suitable for medium-to-high pressure ranges

• Operating Temperature: Varies depending on the specific model and specifications, generally suitable for medium-temperature environments
