Hydraulic Valve Block Manifold: Detailed Overview

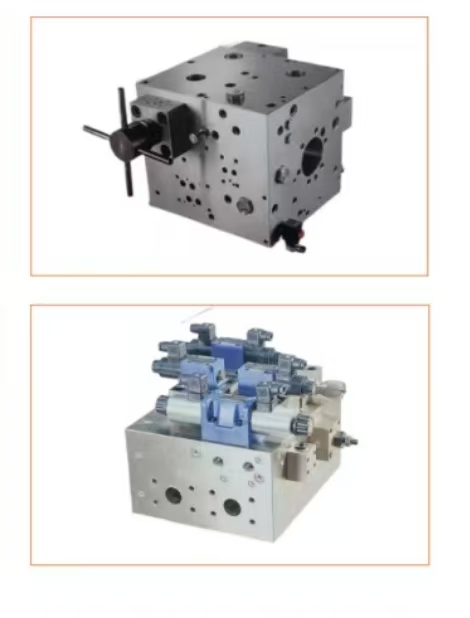

Hydraulic Valve Block Manifoldis a core component in hydraulic systems, integrating multiple hydraulic valves (such as directional valves, pressure valves, and flow valves) and their connecting flow channels within a single metal block, forming a compact hydraulic control unit. Below is a detailed introduction to its specific aspects:
I. Core Functions
1. Integrated Control: Integrates multiple hydraulic valves on a single block, connecting their ports through internal flow channels to achieve centralized control of the hydraulic system.
2. System Simplification: Reduces external piping connections, lowers the risk of leakage, simplifies system design, and decreases maintenance costs.
3. Efficiency Improvement: Short and enclosed oil paths minimize pressure losses and shock vibrations, enhancing system efficiency and response speed.
4. Modular Design: Supports functional expansion and upgrades, such as adding proportional valves or sensors, to meet diverse application requirements.
II. Design Considerations
1. Component Selection: Choose appropriate hydraulic valves based on system requirements, confirming parameters such as installation dimensions, port thread specifications, flow capacity, and pressure ratings.
2. Layout Optimization: Initially arrange all components on a two-dimensional plane, aiming for the shortest possible flow paths to reduce pressure losses; avoid interference to ensure sufficient space for operation and maintenance of handles, solenoids, etc.
3. Flow Channel Design: Design internal oil paths connecting all components in three-dimensional space, avoiding crossovers and interferences; cleverly utilize drilling at different depths and directions to ensure unobstructed flow.
4. Processability Considerations: Account for the feasibility and convenience of subsequent machining processes such as drilling, tapping, and grinding to ensure manufacturing precision and efficiency.
5. Material Selection: Choose materials based on factors such as system operating pressure, media compatibility, and environmental corrosion resistance, including aluminum alloys, carbon steels, and stainless steels.
III. Manufacturing Processes
1. Precision Machining: Employ precision machining equipment such as five-axis CNC machining centers or electrical discharge machining to ensure a smooth surface finish (Ra ≤ 0.8μm) of flow channels, preventing turbulence and cavitation.
2. Sealing Treatment: Utilize sealing technologies such as O-rings, clearance seals, or polyurethane filling processes to ensure zero leakage under high pressure.
3. Cleanliness Control: Strictly control cleanliness during manufacturing to prevent chips, burrs, and other impurities from entering flow channels and affecting system performance.
4. Quality Inspection: Conduct pressure testing and flow analysis to inspect the performance and quality of valve blocks, ensuring they meet design requirements.
IV. Application Fields
Hydraulic valve block manifolds are widely used in various hydraulic systems, including:
1. Construction Machinery: Such as excavators, loaders, and cranes, for controlling compound actions of boom, arm, and bucket actuators.
2. Industrial Automation: Such as injection molding machines, die-casting machines, and machine tools, for achieving high-speed response and precise control of molds.
3. Aerospace: Such as aircraft landing gear and flight control surfaces, for providing stable and reliable hydraulic control.
4. Marine and Ocean Engineering: Such as ship steering systems and hatch covers, for realizing ship maneuvering and sealing.
V. Development Trends
1. Intelligence: Incorporate intelligent components such as sensors and IoT modules to enable real-time monitoring and remote control of parameters such as pressure and flow.
2. Modularity: Introduce standardized valve block baseplates, allowing users to plug and play functional modules (such as digital valves and proportional valves) as needed, enhancing system flexibility and scalability.
3. Lightweighting: Adopt lightweight materials (such as carbon fiber-reinforced polymers) and low-energy-consumption machining processes to reduce valve block weight and energy consumption.
4. Green and Environmental Protection: Emphasize the application of environmentally friendly materials and the development of energy-saving technologies to minimize environmental impact.
