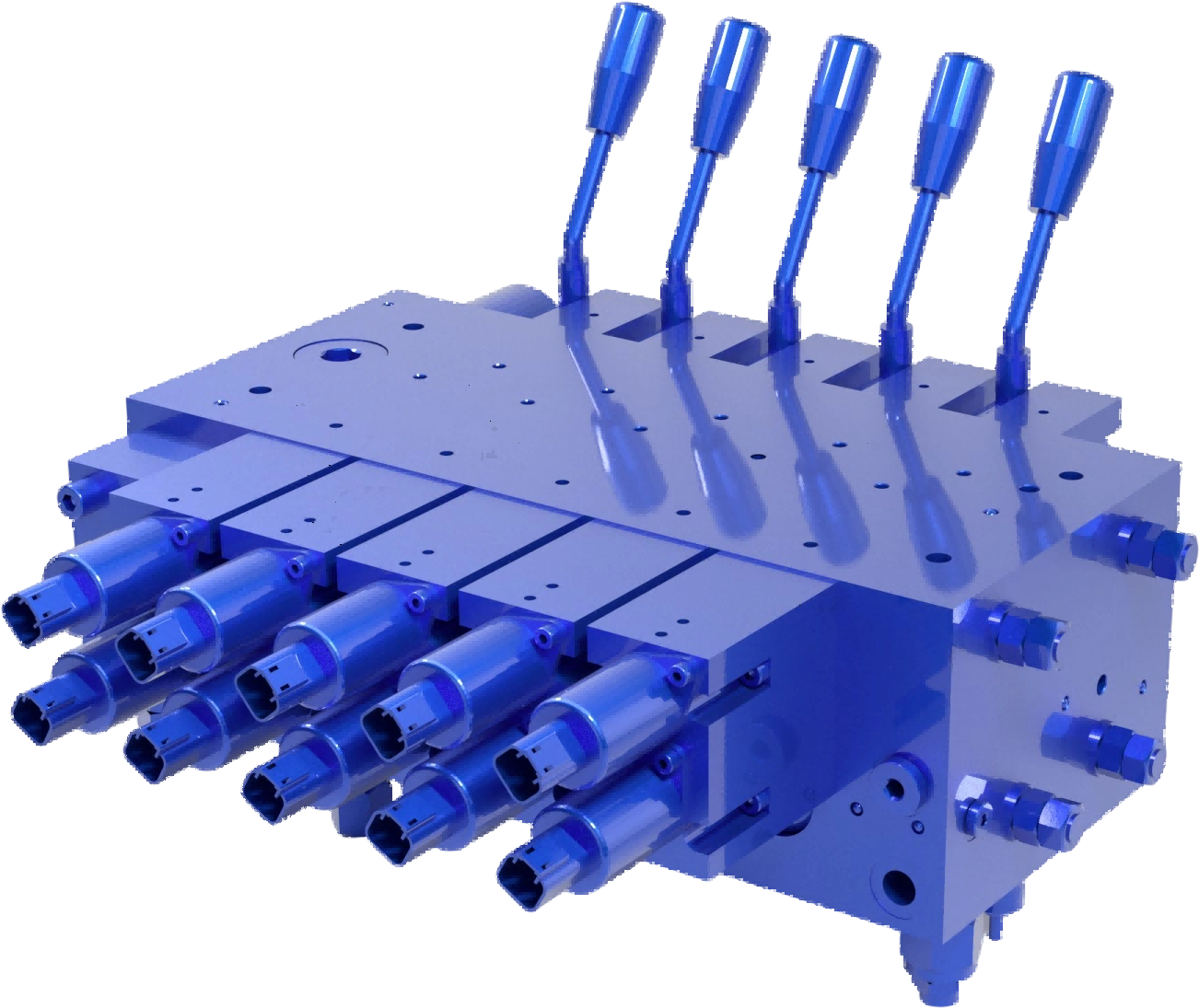

5EMSPCV140-35 LUDV Series Electro-proportional Multi-way Valve

5 week ago

4 0 

4 year

Product details

Detailed Information on 5EMSPCV140-35 LUDV Series Electro-proportional Multi-way Valve:

I. Product Features

1. LUDV System: Adopts the internationally advanced LUDV (Load Independent Flow Distribution) system, which enables proportional flow distribution to all actuators with flow unaffected by load. This ensures stable flow supply to each actuator under different working conditions, thereby enhancing the overall performance and stability of the system.

2. Neutral Low-Pressure Unloading Mode: Features a neutral low-pressure unloading function, suitable for variable systems where the neutral displacement cannot be zeroed, as well as for fixed-displacement pump systems. This characteristic helps reduce system energy consumption and improve energy utilization efficiency.

3. Modular Design: Employs a modular design concept, allowing flexible combination into multi-way proportional flow valve groups according to customer requirements. This design not only enhances the product's versatility and interchangeability but also facilitates customization and expansion based on actual working conditions.

4. Multiple Control Modes: Supports various control modes, including hydraulic control, electro-hydraulic control, and manual control, meeting the operational needs of different users and working conditions.

II. Technical Parameters

1. Rated Pressure and Flow: Although specific parameters may vary depending on the product model and manufacturer, LUDV series electro-proportional multi-way valves generally have a high rated pressure and flow range to meet the needs of various hydraulic systems. For example, similar models may have a rated pressure of 33 MPa and a maximum flow of 350 L/min.

2. Pressure Compensation Function: Each working section is equipped with a pressure compensation function to ensure stable flow supply to actuators under different loads.

3. Interfaces and Expandability: The product is equipped with reserved interfaces, allowing the stacking of additional components such as flow valves, relief valves, and balance valves, further expanding the product's functionality and application range.

III. Application Fields

The 5EMSPCV140-35 LUDV Series Electro-proportional Multi-way Valve is widely used in various hydraulic systems requiring precise flow control, such as:

1. Construction Machinery: In hydraulic systems of excavators, cranes, loaders, and other construction machinery, precise control of the flow and speed of each actuator is required to ensure equipment stability and operational efficiency.

2. Agricultural Machinery: In agricultural machinery, such as combine harvesters and tractors, electro-proportional multi-way valves are also used to achieve precise control of the hydraulic system.

3. Other Fields: Additionally, this series of products can also be applied in hydraulic systems of road and bridge machinery, sanitation machinery, mining machinery, and other fields.
