Product details

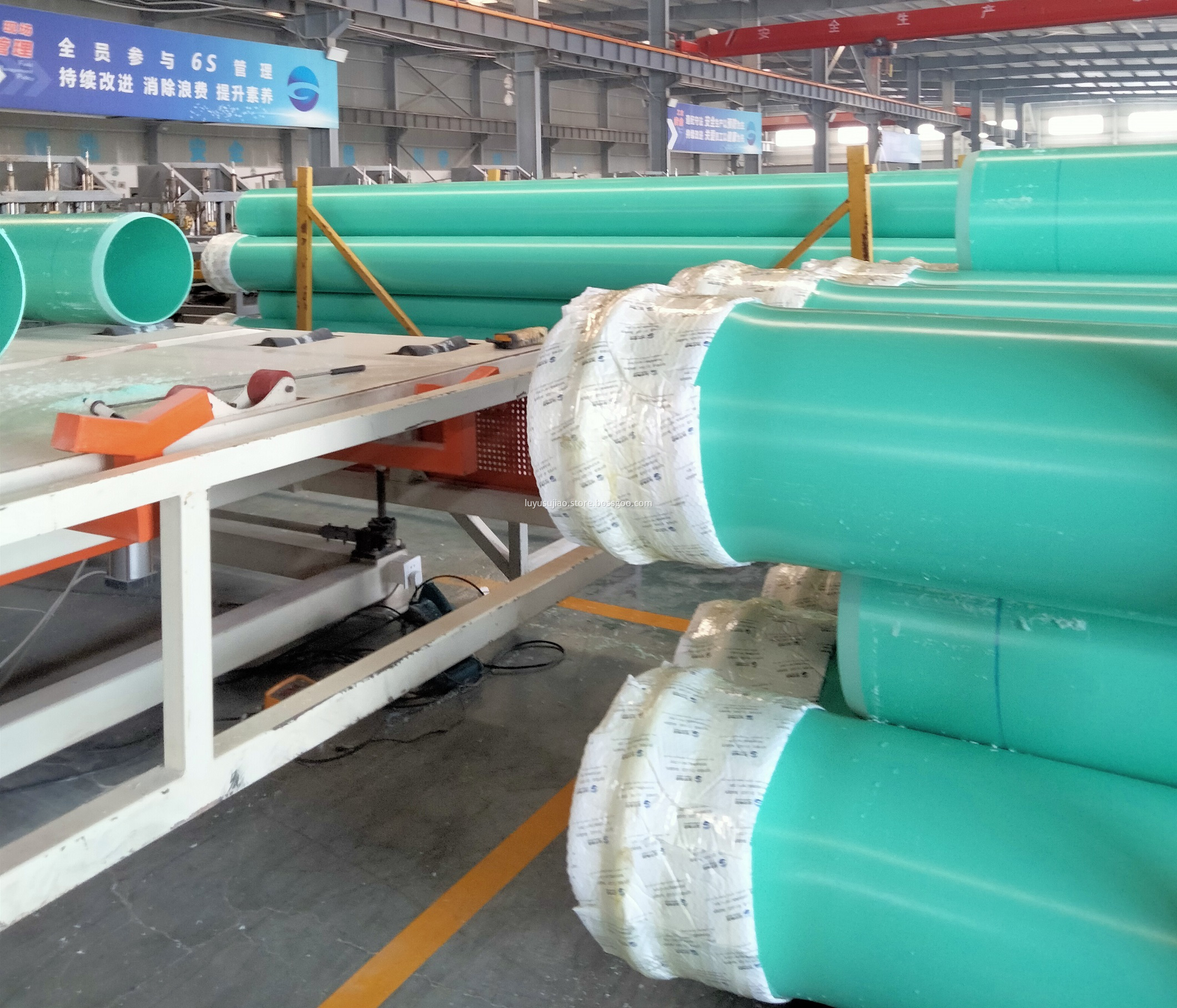

High performance hard polyethylene pipe for low pressure sewage discharge and drainage (PVC-UH) is a kind of pipe for sewage discharge and drainage which is made of hard polyvinyl chloride(PVC) mixed with standard requirements, extruded and has an integrated steel skeleton sealing ring socket structure. Adopts efficient and excellentheat stabilizer and advanced production technology to ensure the quality of pipes.

PVC-UH sewage pipes is widely used in conveying domestic sewage and specific industrial wastewater.

Pvc-uh Pipes for Low-Pressure Sewage and Drainage Product Specifications

Outside Diameter(mm)	SDR51 0.32MPa（SN2)	SDR41 0.4MPa（SN4)	SDR34 0.5MPa（SN8)	SDR28 0.6MPa（SN12.5)	SDR26 0.63MPa（SN16)
Outside Diameter(mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)
110		3.2	3.2	4.0	4.2
125		3.2	3.7	4.5	4.8
160	3.2	4.0	4.7	5.8	6.2
200	3.9	4.9	5.9	7.2	7.7
250	4.9	6.2	7.3	9.0	9.6
315	6.2	7.7	9.2	11.3	12.1
355	7.0	8.7	10.4	12.7	13.6
400	7.9	9.8	11.7	14.3	15.3
450	8.8	11.0	13.2	16.1	17.2
500	9.8	12.3	14.6	17.9	19.1
630	12.3	15.4	18.4	22.5	24.1
710	13.9	17.4	20.9	25.4	27.2
800	15.7	19.6	23.5	28.6	30.6
900	17.6	22.0	26.5	32.2	34.4
1000	19.6	24.5	29.5	35.8	38.2
1200	23.5	29.4	35.3	42.9	45.9
1400	27.4	34.3	41.2
1600	31.3	39.2

Feature highlights:High-performance rigid PVC-UH pipes designed for pressure discharge and drainage, featuring high strength, corrosion resistance, UV protection, and a long service life. Suitable for municipal, building, industrial, and agricultural applications. Customizable sizes and colors with easy installation. Complies with SZDB/Z 239-2017 and T/CECS 10110-2020 standards.

Our factory has multiple PVC pipe and fitting production lines to provide you with timely supply and support convenient specification customization.The main products of our company include PVC Pipe,PVC-M Pipe,PVC-UH Pipe,PE Pipe, PPR Pipe, PERT Pipe and Pipe Fittings.
