Product details

High performance hard polyethylene pipe for low pressure sewage discharge and drainage (PVC-UH) is a kind of pipe for sewage discharge and drainage which is made of hard polyvinyl chloride (PVC) mixed with standard requirements, extruded and has an integrated steel skeleton sealing ring socket structure. Adopts

efficient and excellentheat stabilizer and advanced production technology to ensure the quality of pipes.

PVC-UH drainage pipe is widely used in conveying domestic sewage and specific industrial wastewater.

PVC-UH pipes Product Specifications

Outside Diameter(mm)	SDR51 0.32MPa（SN2)	SDR41 0.4MPa（SN4)	SDR34 0.5MPa（SN8)	SDR28 0.6MPa（SN12.5)	SDR26 0.63MPa（SN16)
Outside Diameter(mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)
110		3.2	3.2	4.0	4.2
125		3.2	3.7	4.5	4.8
160	3.2	4.0	4.7	5.8	6.2
200	3.9	4.9	5.9	7.2	7.7
250	4.9	6.2	7.3	9.0	9.6
315	6.2	7.7	9.2	11.3	12.1
355	7.0	8.7	10.4	12.7	13.6
400	7.9	9.8	11.7	14.3	15.3
450	8.8	11.0	13.2	16.1	17.2
500	9.8	12.3	14.6	17.9	19.1
630	12.3	15.4	18.4	22.5	24.1
710	13.9	17.4	20.9	25.4	27.2
800	15.7	19.6	23.5	28.6	30.6
900	17.6	22.0	26.5	32.2	34.4
1000	19.6	24.5	29.5	35.8	38.2
1200	23.5	29.4	35.3	42.9	45.9
1400	27.4	34.3	41.2
1600	31.3	39.2

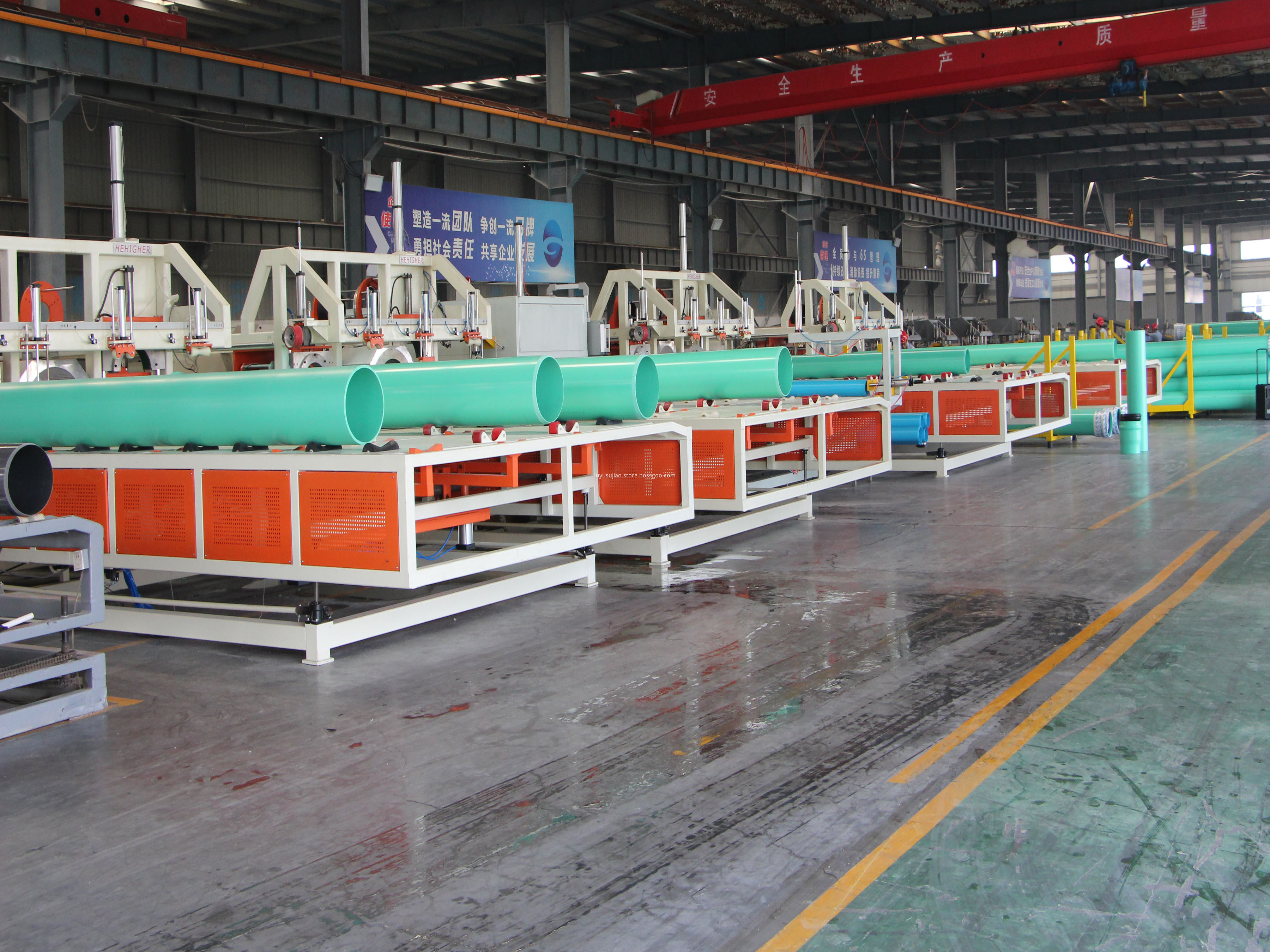

Our factory has multiple PVC pipe and fitting production lines to provide you with timely supply and support convenient specification customization.

Feature highlights:

1.The PVC pipe easy to installation for underground due to light characterized

2.PVC pipe can be prefered in big depth of the underground because of their strong speciality,

3.The value of SN numbers on the PVC pipes can be adapt very easy to the Sewage lines for years.

4.Due to light advantage of PVC Pipes, it’s easy to loading and unloading to the vehicles for transportation of them.

5.Pvc Pipes can be manufacture in desired size, pressure numbers and thicknesses according to projects needed,

6.PVC pipes also used as perforated pipes on the drainage projects
