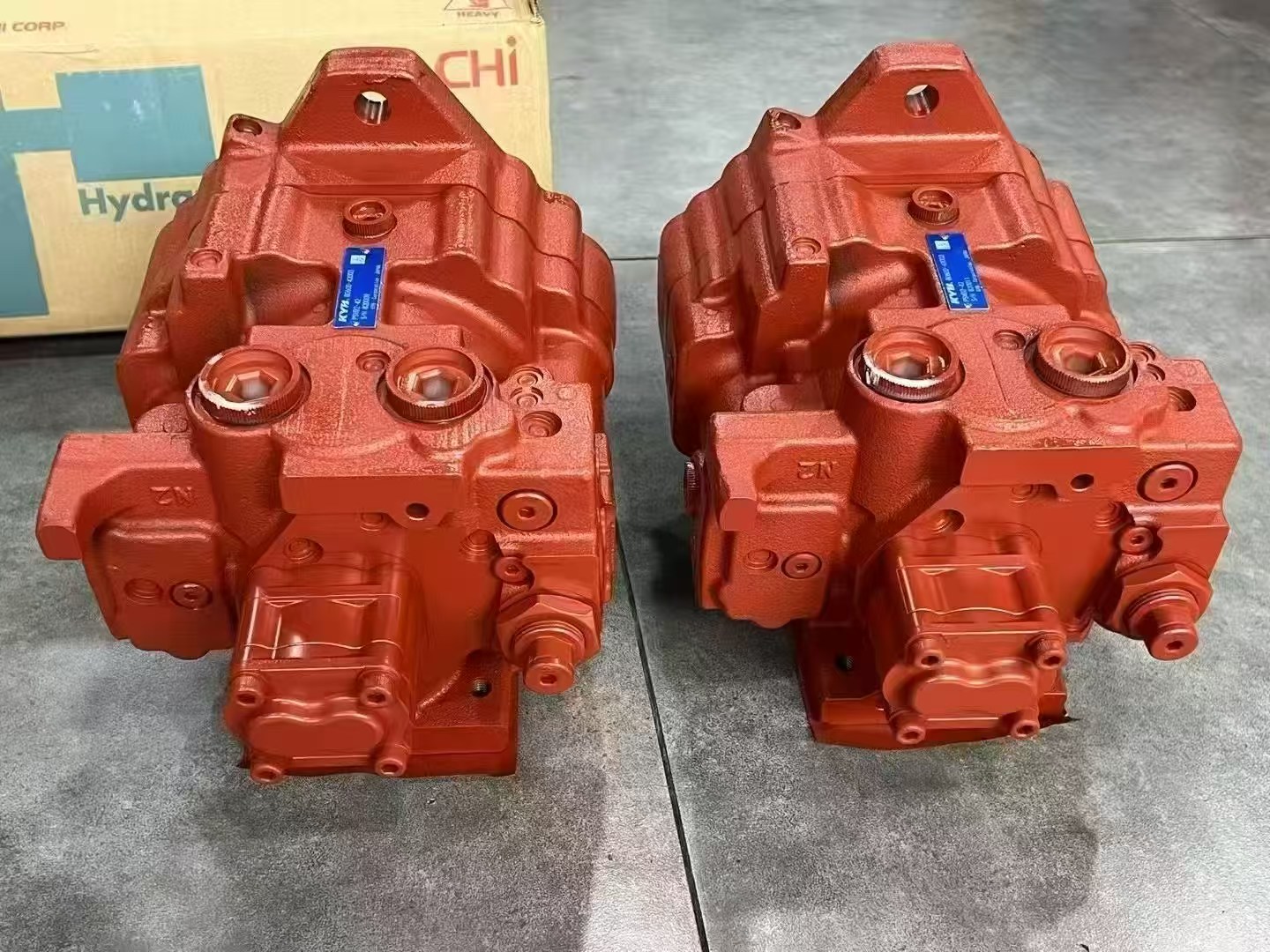

KYB PSVL-54CG Hydraulic pump

4 week ago

5 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

KYB PSVL-54CG Hydraulic Pump: Key Features and Applications

I. Core Specifications and Performance

1. Pressure and Displacement

• Rated Pressure: 25 MPa (some models reach higher pressures), meeting the high-pressure demands of excavators and other heavy equipment.

• Displacement: 54 cc/rev, providing stable flow output for various operating conditions.

• Weight: Approximately 35–50 kg, with a compact design for easy installation and maintenance.

2. Structural Characteristics

• Piston Pump Design: Utilizes reciprocating pistons in cylinders to achieve volume changes, offering high pressure, efficiency, and flexible flow adjustment.

• Material: Cast iron pump body for enhanced wear resistance, suitable for harsh operating environments.

• Sealing Performance: High-performance seals minimize leakage and extend service life.

II. Applications

1. Primary Pump for Excavators

• Compatible with Kubota KX151/155/161 series, CATERPILLAR 304.5C/E304, and other excavator models.

• Serves as the main hydraulic pump, powering boom, arm, swing, and other actuators for digging and loading operations.

2. Other Heavy Equipment

• Suitable for cranes, road rollers, loaders, and other engineering machinery requiring high-pressure hydraulic systems.

• Widely used in mining, construction, agriculture, and other industries for high-load, continuous operations.

III. Technical Advantages

1. High Pressure and Efficiency

• Piston pump structure enables pressures exceeding 70 MPa (PSVL-54CG rated at 25 MPa; higher variants available), significantly outperforming gear and vane pumps in efficiency.

• Flexible flow adjustment via variable displacement mechanisms to adapt to diverse working conditions.

2. Durability

• Cast iron pump body and wear-resistant pistons withstand sandy, high-temperature environments.

• Precision manufacturing reduces internal leakage, lowers energy consumption, and extends lifespan.

3. Compatibility and Adaptability

• Replaces original pumps or serves as repair parts for excavators from brands like Kubota, Caterpillar, and Komatsu.

• Multiple models available (e.g., PSVL-54CG-16, PSVL-54CG-20) to meet varying equipment requirements.
