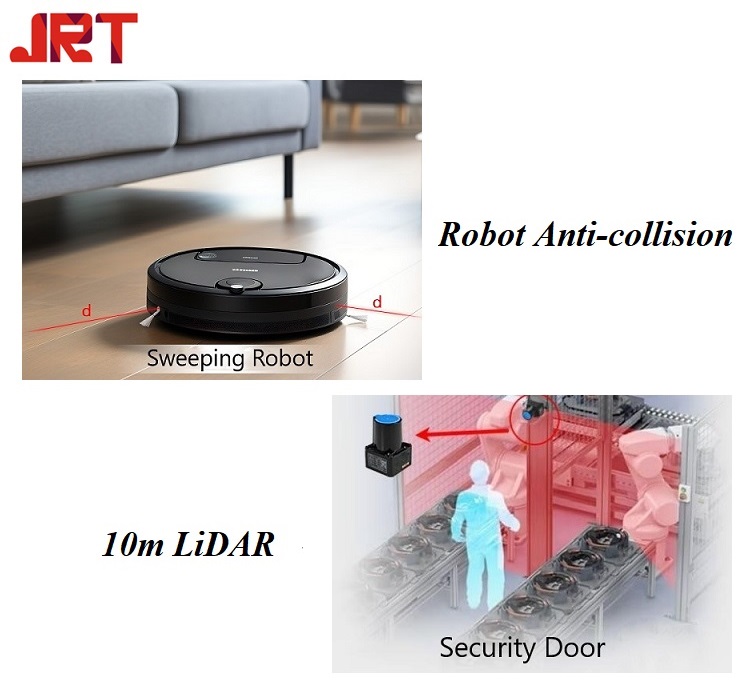

Do you need a 3D LiDAR scanner to identify when a robot is within a safe zone? Yes, the LD-I3-1 ToF 3D lidar Scanner is designed for Robot vacuum cleaner/agv collision avoidance with 270°scanning detection. If you wanna buy this LiDAR sensor or other Long Range 3d Lidar for UAV, please feel free to contact us.

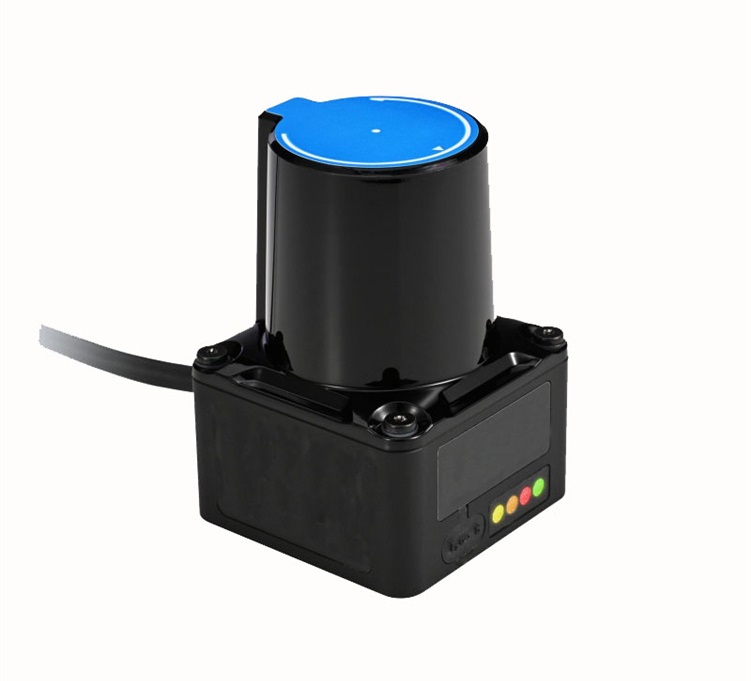

The 3D LiDAR Scanner ToF is a cutting-edge technological solution designed to revolutionize spatial data acquisition across various applications, including autonomous vehicles, robotics, and industrial automation. This ToF sensor employs time-of-flight (ToF) technology to accurately measure distances over a 270-degree field of view with high precision and speed. Its capability to generate intricate three-dimensional maps in real-time makes it indispensable for navigation systems, enabling seamless obstacle detection and environment mapping in dynamic settings. The compact design of the LiDAR scanner ensures ease of integration into diverse platforms, while its robust performance under varying environmental conditions aligns with stringent operational requirements. Furthermore, advanced signal processing algorithms improve data fidelity, mitigating interference and enhancing reliability. As industries increasingly prioritize spatial accuracy for complex tasks, the 270°3D ToF Sensor LiDAR Scanner stands out as an essential tool for enhancing efficiency, safety, and technological advancement.

Key Parameters:

1. Strong measure&scanning ability

Detection Range: 270°

Data Sampling Rate: 18 kHz(54 kHz can be customized)

Scanning Frequency: 25 Hz

Response Time: 40 ms

2.Small,high precision

Size: 50 * 50 * 72 mm

Measuring range, max up to 10 m

Ranging Accuracy: ±2 cm (within 10 m)

Protection Rating: IP65

Ambient Light Resistance: 80000 Lux

Detailed parameters

Ranging Principle: Pulsed Time-of-Flight (TOF)

Laser Wavelength: 905 nm

Maximum Detection Distance: ≥ 10 m (70% reflectivity)

                                                 ≥ 4 m (10% reflectivity)

Detection Range: 270°

Data Sampling Rate: 18 kHz / 54 kHz

Scanning Frequency: 25 Hz

Angular Resolution: 0.5°

Ranging Accuracy: ±2 cm (within 10 m)

Response Time: 40 ms

Startup Time: < 10 s

Number of Channels: 64 (each channel contains 3 detection areas)

Detection Output Delay: Configurable within 0 - 2 s

Detection Hold Delay: Configurable within 0 - 2 s

Detection Size: Configurable within 0 - 5°

Switch Inputs: 6

Switch Outputs: 4 (3 area signals, 1 fault signal)

Indicator Lights: 4 (3 area signals, 1 fault signal)

Communication Interface: USB-TYPE C (Serial Port)

Power Supply: DC 9V–28V

Power Consumption: Rated Power: < 1W (No Load)

                                  Starting Power: < 3W (No Load)

Operating Temperature: -10℃ to 50℃

Storage Temperature: -20℃ to 70℃

Ambient Humidity: Below 85%, non-condensing

Protection Rating: IP65

Ambient Light Resistance: 80000 Lux

Weight: 171 g

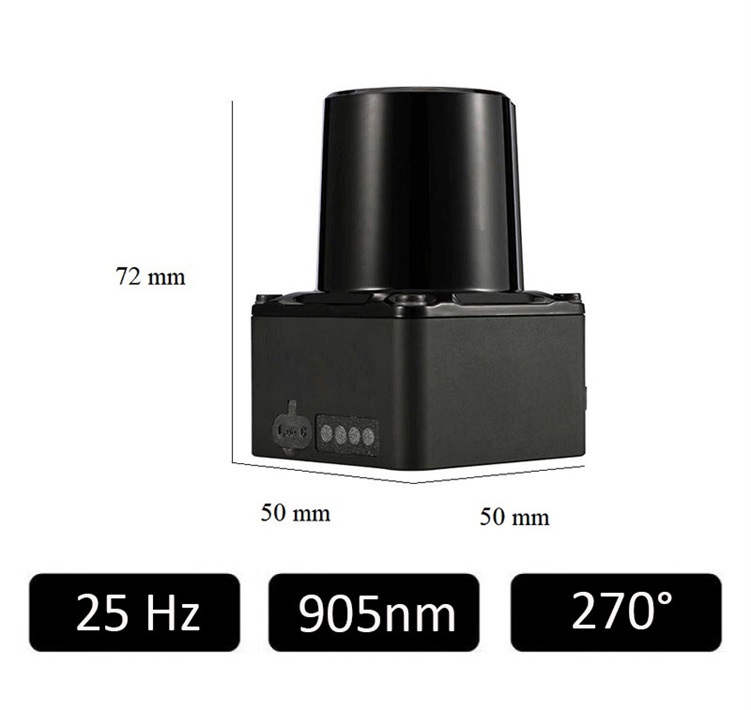

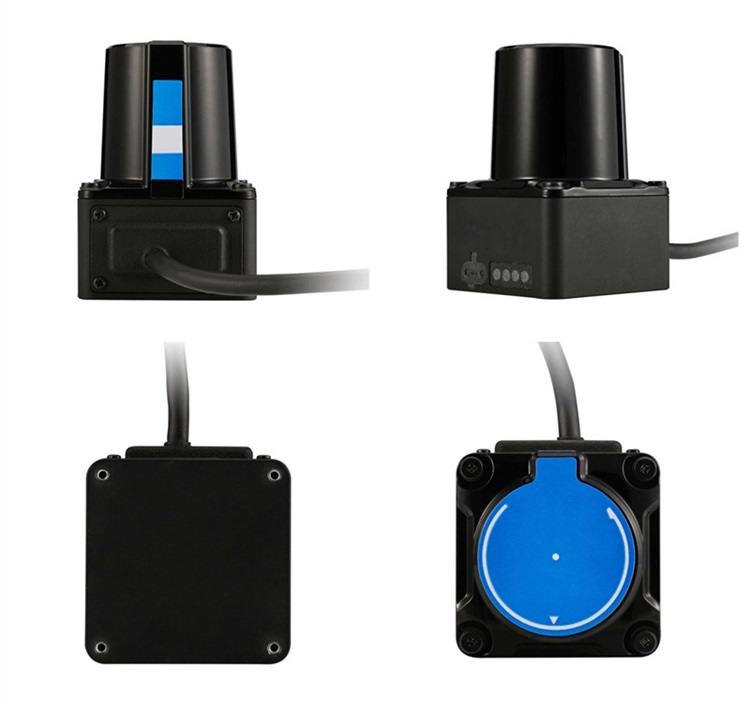

Dimensions: 50 mm (L) * 50 mm (W) * 72 mm (H)

Sinusoidal Vibration: Frequency 10Hz~1000Hz, Acceleration 5g, Triaxial, 10 cycles per axis

Random Vibration: Frequency 5Hz~250Hz, Gr.m.s=4.24g, Triaxial, 5 hours per axis

Shock Resistance: Acceleration 50g, Pulse Time 3ms, 5000 impacts per axis 30,000 cycles

Electromagnetic Compatibility:

EMI: EN61326-1:2013

         EN55011:2010

EMS: EN61000-4-2:2009

The 3D LiDAR Scanner ToF is a cutting-edge technological solution designed to revolutionize spatial data acquisition across various applications, including autonomous vehicles, robotics, and industrial automation. This ToF sensor employs time-of-flight (ToF) technology to accurately measure distances over a 270-degree field of view with high precision and speed. Its capability to generate intricate three-dimensional maps in real-time makes it indispensable for navigation systems, enabling seamless obstacle detection and environment mapping in dynamic settings. The compact design of the LiDAR scanner ensures ease of integration into diverse platforms, while its robust performance under varying environmental conditions aligns with stringent operational requirements. Furthermore, advanced signal processing algorithms improve data fidelity, mitigating interference and enhancing reliability. As industries increasingly prioritize spatial accuracy for complex tasks, the 270°3D ToF Sensor LiDAR Scanner stands out as an essential tool for enhancing efficiency, safety, and technological advancement.

Key Parameters:

1. Strong measure&scanning ability

Detection Range: 270°

Data Sampling Rate: 18 kHz(54 kHz can be customized)

Scanning Frequency: 25 Hz

Response Time: 40 ms

2.Small,high precision

Size: 50 * 50 * 72 mm

Measuring range, max up to 10 m

Ranging Accuracy: ±2 cm (within 10 m)

Protection Rating: IP65

Ambient Light Resistance: 80000 Lux

Detailed parameters

Ranging Principle: Pulsed Time-of-Flight (TOF)

Laser Wavelength: 905 nm

Maximum Detection Distance: ≥ 10 m (70% reflectivity)

                                                 ≥ 4 m (10% reflectivity)

Detection Range: 270°

Data Sampling Rate: 18 kHz / 54 kHz

Scanning Frequency: 25 Hz

Angular Resolution: 0.5°

Ranging Accuracy: ±2 cm (within 10 m)

Response Time: 40 ms

Startup Time: < 10 s

Number of Channels: 64 (each channel contains 3 detection areas)

Detection Output Delay: Configurable within 0 - 2 s

Detection Hold Delay: Configurable within 0 - 2 s

Detection Size: Configurable within 0 - 5°

Switch Inputs: 6

Switch Outputs: 4 (3 area signals, 1 fault signal)

Indicator Lights: 4 (3 area signals, 1 fault signal)

Communication Interface: USB-TYPE C (Serial Port)

Power Supply: DC 9V–28V

Power Consumption: Rated Power: < 1W (No Load)

                                  Starting Power: < 3W (No Load)

Operating Temperature: -10℃ to 50℃

Storage Temperature: -20℃ to 70℃

Ambient Humidity: Below 85%, non-condensing

Protection Rating: IP65

Ambient Light Resistance: 80000 Lux

Weight: 171 g

Dimensions: 50 mm (L) * 50 mm (W) * 72 mm (H)

Sinusoidal Vibration: Frequency 10Hz~1000Hz, Acceleration 5g, Triaxial, 10 cycles per axis

Random Vibration: Frequency 5Hz~250Hz, Gr.m.s=4.24g, Triaxial, 5 hours per axis

Shock Resistance: Acceleration 50g, Pulse Time 3ms, 5000 impacts per axis 30,000 cycles

Electromagnetic Compatibility:

EMI: EN61326-1:2013

        EN61000-4-3:2010

        EN61000-4-8:2010
