Van Gogh Starry Night Enamel Pin Badge Making Machines
9 month ago
Product details
Name Badge Making Machine with Exopy Technology
-- See Smartly, Dispense Perfectly
Product description

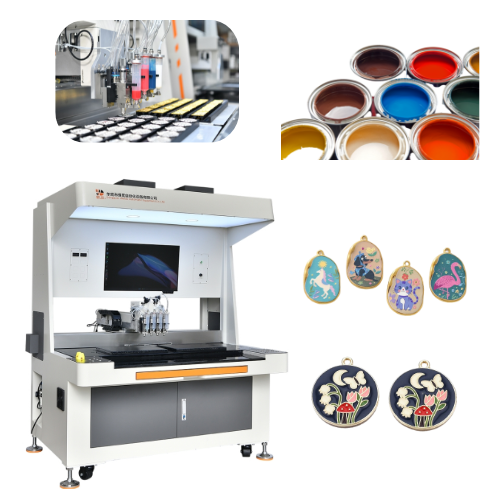

Name Badge Making Machine is a visual dispensing machine specifically designed for applying glue and color to metal nameplates. It features high stability and is easy to operate.
As a Souvenir Making Machine equipped with a 20 million pixel industrial camera, it can clearly identify the shape of the product and uses a non-contact dispensing method, effectively preventing contact with the product surface and avoiding the occurrence of bubbles, unclear edges, and other issues, achieving consistent dispensing accuracy and ensuring uniform lines.

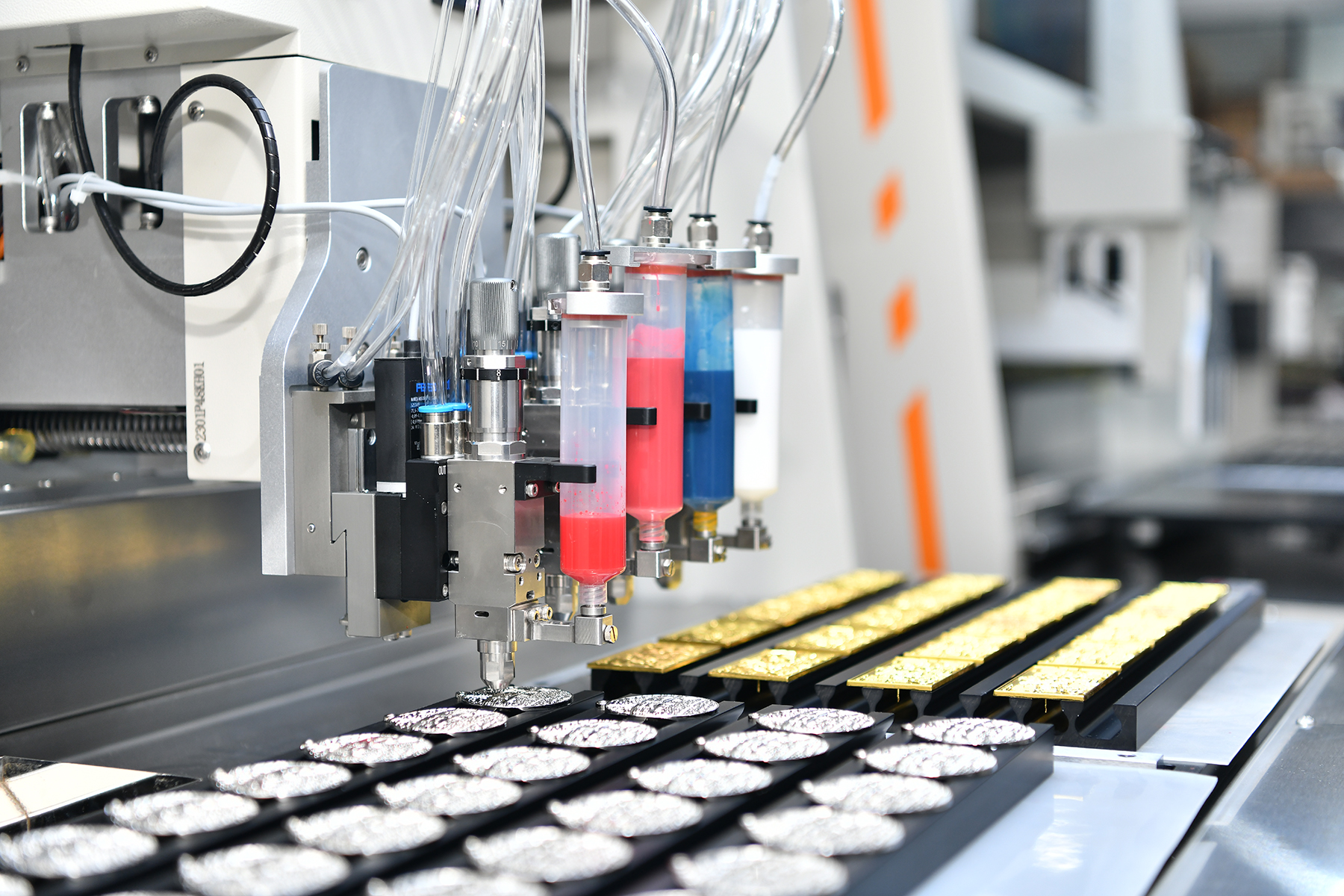

This name badge making machine uses a Needle Dispensing Valve and is combined with our Hot Air Oven Machine for use. It can meet the production requirements of metal nameplates for using multiple colors and various glue materials. WELDO has over ten years of export experience and has very rich production experience. Besides this Needle Dispensing Valve, we also offer multiple valve bodies for your choice, including Pneumatic Jetting Valve, 1 Component Screw Valve, 2 Component Screw Valve, Piezo Jet Valve, Precision Spray Valve, and Piezo spray valve, which can be used for various nameplate production such as applying varnish, epoxy paint, hard enamel, AB glue, UV glue, silicone, and epoxy resin. We also provide customized services, allowing you to customize your own Souvenir Coin Making Machine according to the size and various special requirements of your products.
This Dispensing Machine for Accessories is highly suitable for customers in North America and Europe who attach great importance to the brand image of their enterprises and need to produce various nameplates.
Technical Parameter
| Model | WD600-VF4 |
| Colors | 1-6 colors |
| Standard Single Worktable Size | X:400, Y:300mm |
| CCD Resolution | 20 million pixels |
| Camera Working Size | X:400mm, Y:300mm |
| Running Distance | X:400mm, Y:300mm,Z:60mm |
| Table Load | 100KG |
| Power | 220V ,50/60HZ,3KW |
| Machine Size | 108*135*190cm |
| Heating Device Temperature | 0-50°C |
Product Features & Advantages
Versatile Valve Options
Our name badge maker machine can be configured with the following options to handle all your dispensing glue needs:
1. Needle Dispensing Valve
2. Pneumatic Jetting Valve
3. 1 Component Screw Valve
4. 2 Component Screw Valve
5. Piezo Jet Valve
6. Precision spray valve
By flexibly combining these valves, our visual dispensing machine can meet the diverse needs of various customers across all application scenarios, significantly improving production efficiency and process quality.
Our Employee Name Badge Maker Machine is a very user-friendly dispensing machine. Our WELDO dispensing software can customize the corresponding operation language interface according to the language habits of the customers, making it easy to use.
At the same time, this dispensing machine is also designed with a dual-station working platform. One platform is used for dispensing, while the other can be used for loading and unloading products, enabling uninterrupted production and enhancing production efficiency.
Comprehensive Service Support
Service Process:
1. Requirements Communication：
2. Solution Customization
3. Production Testing
4. Training and Delivery
5. After-sales Support
We provide:
1. Remote guidance
2. Instruction manuals and operation videos
3. Maintenance checklists
How to Use our Visual Dispensing Machine？
I. Preparation
- Clean the machine surface and check that the power supply and reset status are normal.
- Confirm that all fasteners on each component are secure and that electrical components are installed correctly and undamaged.
- Verify that the values in the data sheet meet the requirements and that there is sufficient processing material.
- Set the computer IP address and machine registration code.
- Ensure the power supply is 220V, and the pressure is stable at 0.8MPa (8kg).
- Turn on the power on the right side of the machine and wait for automatic homing.
II. Startup Operation
- Calibrate the template's horizontal height and save the calibration file.
- Crop the template, perform a matching test, draw the dispensing path, adjust the parameters, and save the dispensing file.
- Inject the adhesive material, tighten the needle, and check for leaks.
- Place a waste bottle at the bottom, press "Valve Normally Open" to vent, and then test the "Valve Spray" size using a test plate.
- Adjust the valve force and template parameters, test the dispensing volume, and make corrections.
- Press "Left Start" to begin dispensing.
