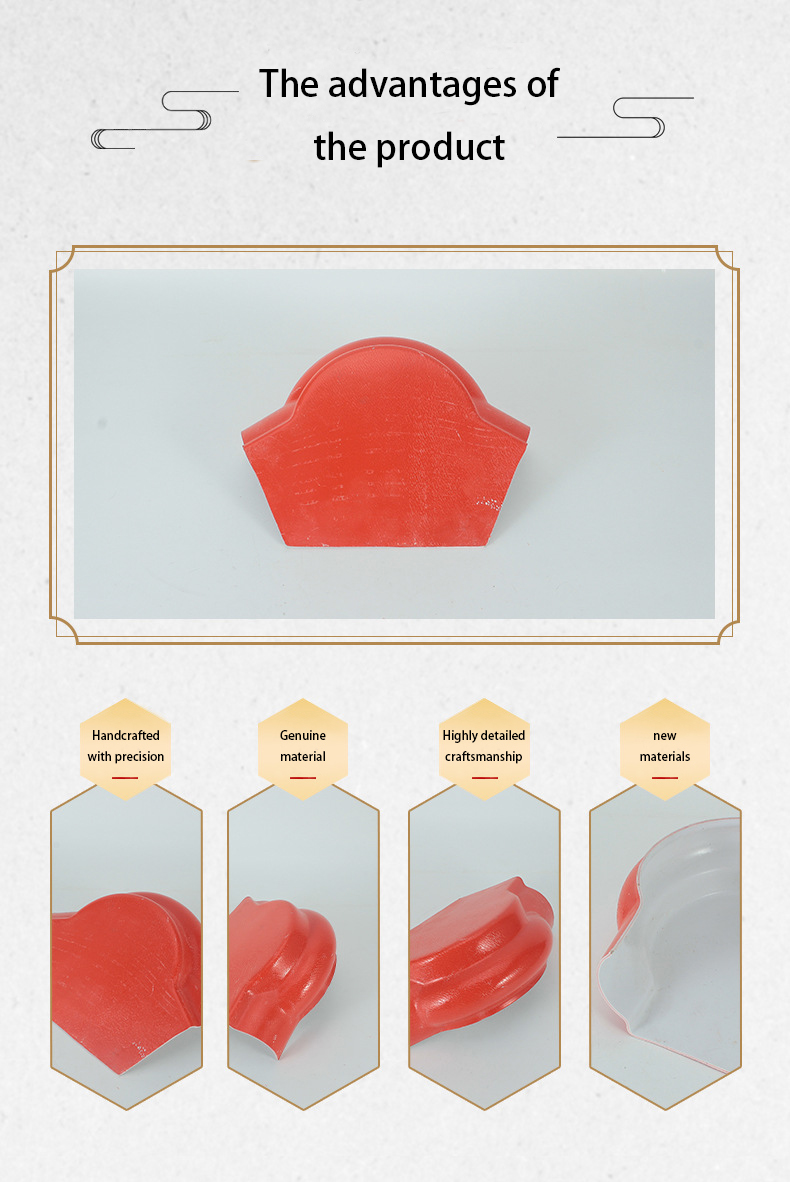

This roofing sheet ridge cover offers an essential component for achieving a professional and finished look. The APVC cap is crafted from advanced polymer materials, making it resistant to weathering, UV exposure, and temperature fluctuations. Its lightweight yet sturdy construction ensures easy installation without compromising strength or durability

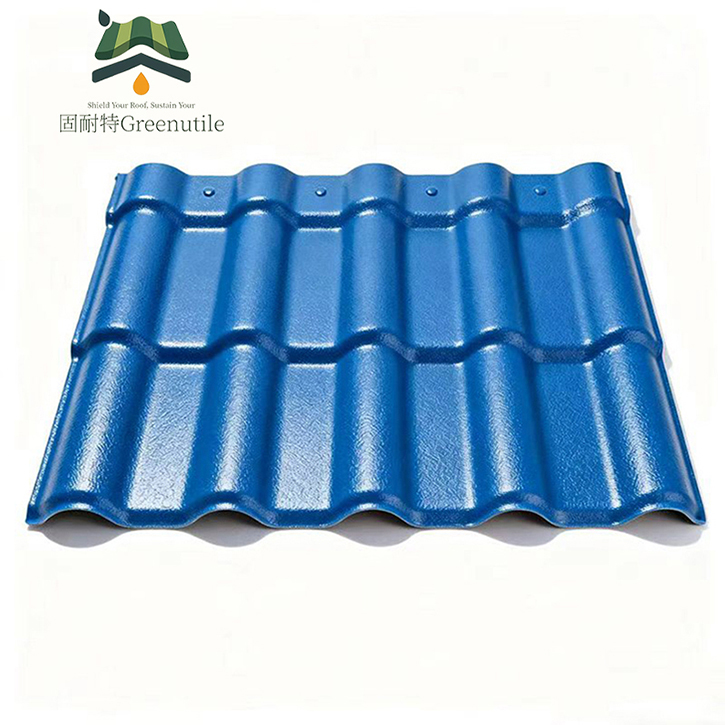

Our resin roof tiles are widely used in various projects due to their versatility and excellent performance:

1:Square pipe (60*mm*40mm*3m) or C-shaped steel (100mm*20mm*3mm) or rotted wood square (60*40mm) can be used as purlin bar.

2:The space between purlins bar is 660mm from top to top.

3:It should be installed in the opposite direction accordin g to the local wind direction and lap both sides of a wave at the same time when the main tile is installed.

4;Cutting the first section off and then installing it again, this way can be avoiding heap up thickness of tile when install the 135。 main ridge tile.

5:The joint should be sawed, and the tee should be installed after the installation of the positive ridge and diagonal ridge tile.

6:The fixing parts are special accessories. Using electric drill to bore hole.The hole’s diameter must be 2mm larger than the screw rod when fix. The diameter of self-tapping screw is 5.5mm.

7:The main ridge angle of the roof is recommended to be 135 degrees. Main tile and accessories installing based on “one top, two-bottom”shape.
