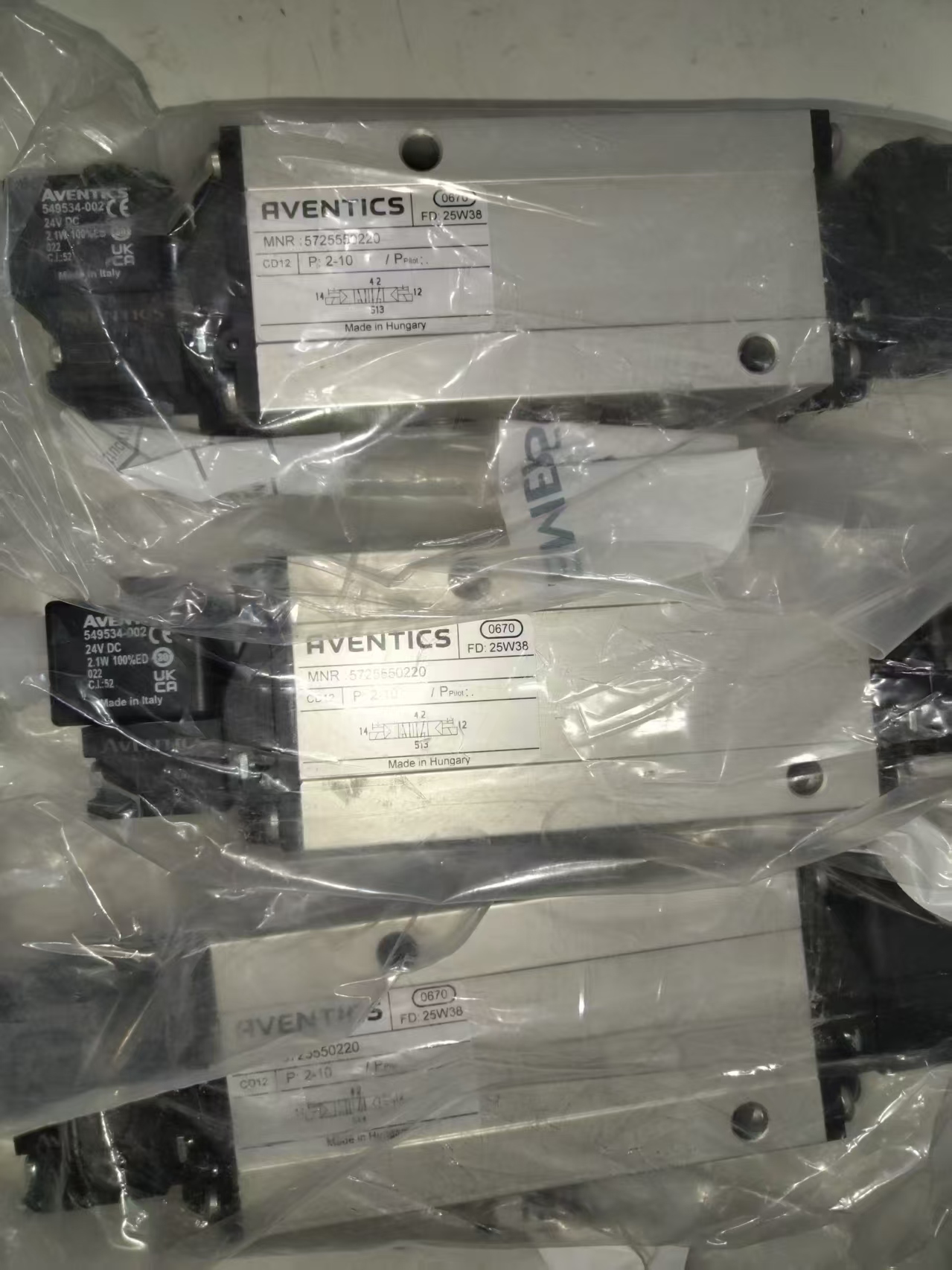

AVENTICS MNR5725550220
3 week ago
Product details
I. Core Functions and Structure
The AVENTICS 5725550220 is a pneumatic valve whose primary function is to control the opening and closing of valves driven by compressed air, enabling automated control of fluids (such as gases or liquids). This valve may be driven by electromagnetic or pneumatic actuators, and its structure typically includes components such as a valve body, valve core, seals, drive mechanism, and control interfaces. It is designed to meet the requirements of rapid response, high reliability, and long service life in pneumatic systems.
II. Key Technical Parameters
1. Drive Method:
This valve uses compressed air as its power source, with a typical driving pressure range of0.4-0.7 MPa, suitable for standard industrial pneumatic systems.
2. Interface Size:
It may adopt standard industrial interfaces (such as G1/4 or G1/8) for easy connection to piping systems. Specific dimensions should be referenced from the product manual.
3. Flow Characteristics:
The flow coefficient (Cv value) may be relatively high to accommodate large flow requirements. For example, similar pneumatic control butterfly valves can have Cv values in the hundreds, but the specific value for the AVENTICS 5725550220 should be checked in technical documentation.
4. Pressure and Temperature Ranges:
• Operating Pressure: It may cover a range of0.1-2.5 MPa, adaptable to various industrial scenarios.
• Media Temperature: The standard version may support-20°C to 200°C, while high-temperature versions can reachover 400°C, depending on the sealing materials and valve body material.
5. Sealing Form:
It may usesoft seals (such as EPDM, PTFE)ormetal hard seals. Soft seals are suitable for conventional operating conditions, while hard seals are resistant to high temperatures and wear.
6. Actuator Type:
It may besingle-acting (spring-return type)ordouble-acting. The single-acting type returns to its original position via a spring when de-energized, while the double-acting type requires continuous air supply to maintain its state.
III. Typical Application Scenarios
1. Industrial Automation:
Used in material handling, assembly, and inspection processes on production lines for pneumatic control, such as controlling the extension and retraction of cylinders or the opening and closing of fixtures.
2. Process Control:
In industries such as chemicals, petroleum, and natural gas, it controls the flow, pressure, or direction of fluid media, such as switching or regulating pipeline systems.
3. Energy and Environmental Protection:
Suitable for water treatment, wastewater treatment, and other scenarios to control the operation of pumps, valves, or mixers.
IV. Product Advantages and Features
1. High Reliability:
Utilizes high-quality materials and precision manufacturing processes to ensure stable operation under frequent opening and closing or harsh operating conditions.
2. Rapid Response:
The pneumatic drive mechanism responds quickly, making it suitable for automated scenarios requiring fast actions.
3. Easy Maintenance:
Its modular design facilitates disassembly and cleaning, reducing maintenance costs and time.
4. High Safety:
Complies with the IP65 protection class standard, effectively preventing the ingress of dust and water to protect internal components.
