Parker Servo Valve Model BD15AAANB10
3 week ago
Product details

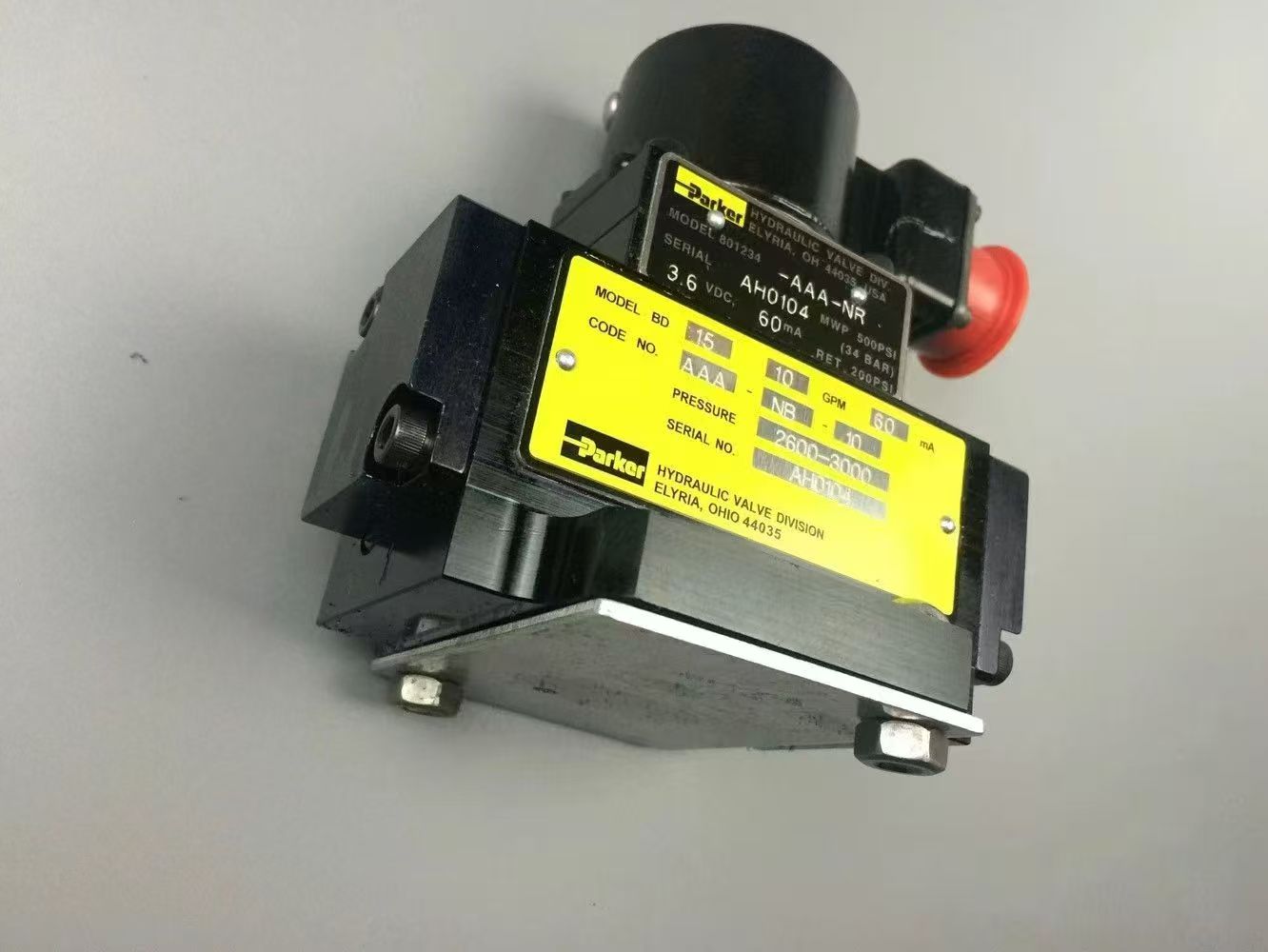

The Parker Servo Valve BD15AAANB10 is a high-performance electro-hydraulic servo valve. Below is a detailed introduction to this product:
I. Product Overview
• Type: Electro-Hydraulic Servo Valve
• Brand: Parker
• Model: BD15AAANB10
• Function: Converts electrical analog signals into modulated hydraulic flow and pressure outputs, enabling electro-hydraulic signal conversion and hydraulic amplification.
II. Technical Features
1. High-Precision Control:
• Provides high-resolution position, velocity, and force control, suitable for motion control systems requiring precise regulation.
• Features linear flow gain characteristics to ensure accurate transmission of control signals.
2. Robust and Reliable:
• Designed to be rugged and capable of stable operation in harsh industrial environments, reducing failure rates.
• Exhibits low sensitivity to contamination, maintaining performance even under certain levels of hydraulic fluid contamination.
3. Safety Performance:
• Available in intrinsically safe and explosion-proof versions to meet the safety requirements of special industries.
• Demonstrates strong anti-interference capabilities, effectively suppressing the impact of external disturbances on control performance.
4. Fast Response:
• Responds quickly, capable of promptly following changes in electrical control signals to achieve rapid and accurate hydraulic control.
5. Monitoring and Fault Detection:
• Equipped with efficient monitoring functions, enabling high-precision fault detection and real-time monitoring for easy maintenance and troubleshooting.
III. Technical Specifications
• Seal Material: Nitrile
• Electrical Connection: C2B (standard)
• Size: S04
• Current (Standard): 60 mA
• Flow Efficiency: 10 GPM (37.9 L/min)
• Pressure Range: 2600-3000 PSI (180-207 bar)
• Resistance: 60 ohms
• Operating Temperature: -1°C to +82°C (+30°F to +180°F)
• Filter Efficiency Rating: SAE Class 3 or better, ISO Code 17/15/12
IV. Application Areas
• Machine Tools: Used to drive hydraulic cylinders for high-precision machining and positioning.
• Construction Machinery: Such as excavators and cranes, for controlling the movement of actuators.
• Oil Drilling Rigs and Refineries: Provides precise hydraulic control during drilling and refining processes.
• Hospitals and Laboratories: Utilized in medical equipment and experimental devices requiring high-precision hydraulic control.
• Power Plants: Commonly used for precise control of axial flow fans to ensure stable operation of power plant equipment.
V. Working Principle
• Electrical Torque Motor: Receives electrical analog signals and generates linear or rotational motion proportional to the control signal.
• Dual-Nozzle Pilot Stage: Converts the motion of the torque motor into a hydraulic pressure differential, driving the spool valve second stage.
• Spool Valve Second Stage: Controls the direction and flow rate of hydraulic oil based on the pressure differential from the pilot stage, achieving hydraulic amplification and output.
• Mechanical Feedback Mechanism: Provides a force opposite to the torque motor force through a feedback rod and mechanical spring assembly, enabling repeatable proportional motion of the valve spool relative to the electrical signal.
