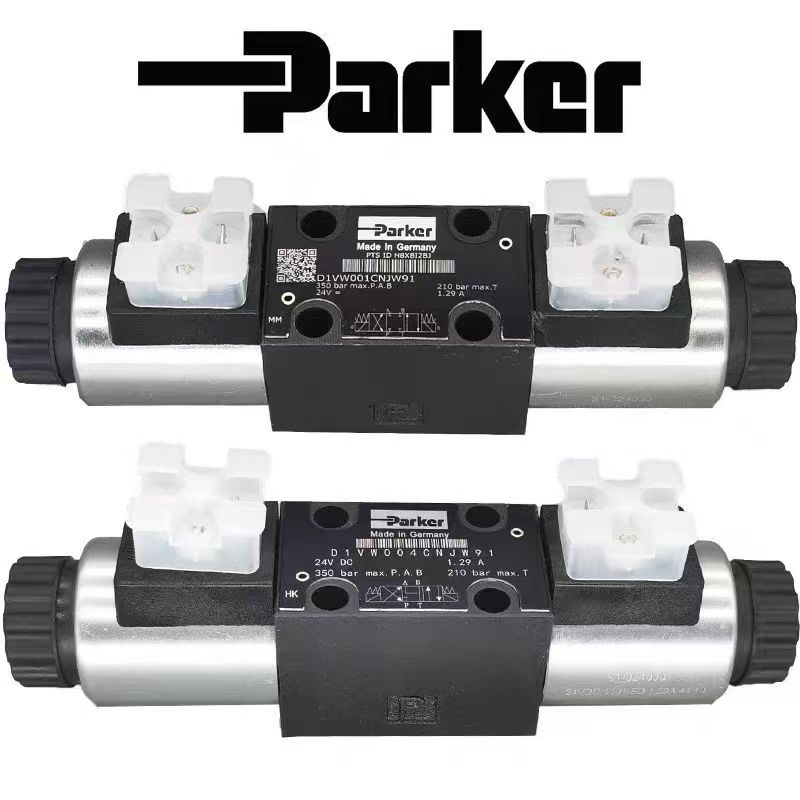

Parker D1VW001CNJW91 Directional Control Valve

The Parker D1VW001CNJW91 is a high-performance solenoid-operated directional control valve manufactured by Parker Hannifin. Below is a detailed introduction to this product:

I. Product Overview

• Brand & Model: Parker D1VW001CNJW91

• Type: Solenoid-Operated Directional Control Valve

• Mounting Specification: NG06 (CETOP 03)

II. Technical Features

1. Optimized Flow Path Design:

• Provides a flow capacity of up to 80 l/min with minimal pressure drop, ensuring efficient and stable hydraulic control.

2. High Working Pressure:

• Capable of withstanding working pressures up to 350 bar, suitable for various high-pressure hydraulic systems.

3. Multiple Spool Options:

• Offers a variety of spool configurations to meet different hydraulic circuit requirements, enhancing system flexibility and adaptability.

4. Soft-Switching Function:

• Optional soft-switching valves enable smooth transition processes, reducing system shock and wear.

5. Orifice Damping Design:

• Additional orifices in the solenoid valve's switching channels prolong the switching time, further ensuring system stability and reliability.

6. Compact and Reliable Structure:

• Represents Parker's extensive experience in the hydraulic industry, featuring high cycle rates, long service life, high efficiency, and low power consumption.

III. Electrical Parameters

• Solenoid Type: DC solenoid (some models may support AC with a rectifier)

• Input Voltage: Typically 24V DC (specific voltage may vary by model)

• Current Consumption: Less than 0.5A, low power consumption design allows direct connection to PLCs or bus nodes for easy system integration and control.

IV. Application Areas

• Machine Tool Industry:

• Particularly suitable for multi-station automatic production lines and other applications requiring a large number of valves.

• Construction Machinery:

• Used in excavators, cranes, and other equipment to control the flow direction and pressure of hydraulic systems.

• Oil Drilling Rigs and Refineries:

• Found in all machines relying on motion or fluid control, demonstrating Parker's widespread application in these industries.

• Other Hydraulic Machinery Systems:

• Such as mining machinery, lifting and transportation equipment, offering advantages like wear resistance and long service life.

V. Installation & Maintenance

• Mounting Method:

• Plate-mounted with interfaces conforming to DIN24340 standards, facilitating easy connection with other components in hydraulic systems.

• Maintenance Recommendations:

• Regularly inspect internal components for damage or excessive wear, and replace damaged parts promptly.

• When cleaning the valve, also clean the filter screen or filter to ensure oil cleanliness.

• Periodically operate the valve according to the working medium and operating conditions to ensure its normal opening and closing functions.
