Split Flange Dot Peen Rotary Marking Machine

3 week ago

2 0 

Chongqing Chuke Intelligent Machinery Equipment Co., Ltd.

7 month

Product details

This standard 8 Split Desktop Flange Dot Peen Rotary Marking Machine combines the tungsten carbide needle depth advantage of a "Dot Peen Marking Machine" with the powerful impact of a "Pneumatic Marking Machine," while using an independent Thorx-7 computer control cabinet to achieve remote graphic editing at the level of a Laser Marking Machine. You can move the marking workbench next to the production line, leaving the control cabinet in an air-conditioned room. A single 10-meter industrial Ethernet cable connects the machine, and on-site image changes are simply a matter of scanning the barcode. Efficiency is 30% higher than traditional integrated Pneumatic Marking Machines.

The basic configuration uses a manually tightened rotary clamp, which, with a reducer, easily drives flanges or valves weighing up to 50 kg. When you need to upgrade to overhead crane, robotic arm, or assisted arm loading, you can seamlessly replace it with a cylinder clamping module or add a servo motor with a larger reduction ratio, instantly transforming this Dot Peen Marking Machine into a "tonnage-level" heavy-duty Marking Machine—even wind turbine flanges several meters in diameter can be permanently traced with a 360° depth of 0.3 mm within 120 seconds.

The entire machine sits on a movable platform, with manual screw guide rails for ±100 mm fine-tuning and a Z-axis hand-cranked lifting range of 200 mm to accommodate valve bodies of varying heights. For oversized workpieces, the X, Y, and Z axes can be upgraded to servo motors or cylinder adaptive modules, allowing the "flying alignment" logic commonly used in laser marking machines to be implemented for the first time in a mechanical needle-type marking machine. Whether you are replacing an aging pneumatic marking machine production line or reserving a compatible interface for a new laser marking machine unit, this 8 Split Desktop Flange Dot Peen Rotary Marking Machine can use the same Thorx-7 software and the same fixture library to complete "zero-changeover" marking tasks, from 1 kg small valves to 10 t large flanges.

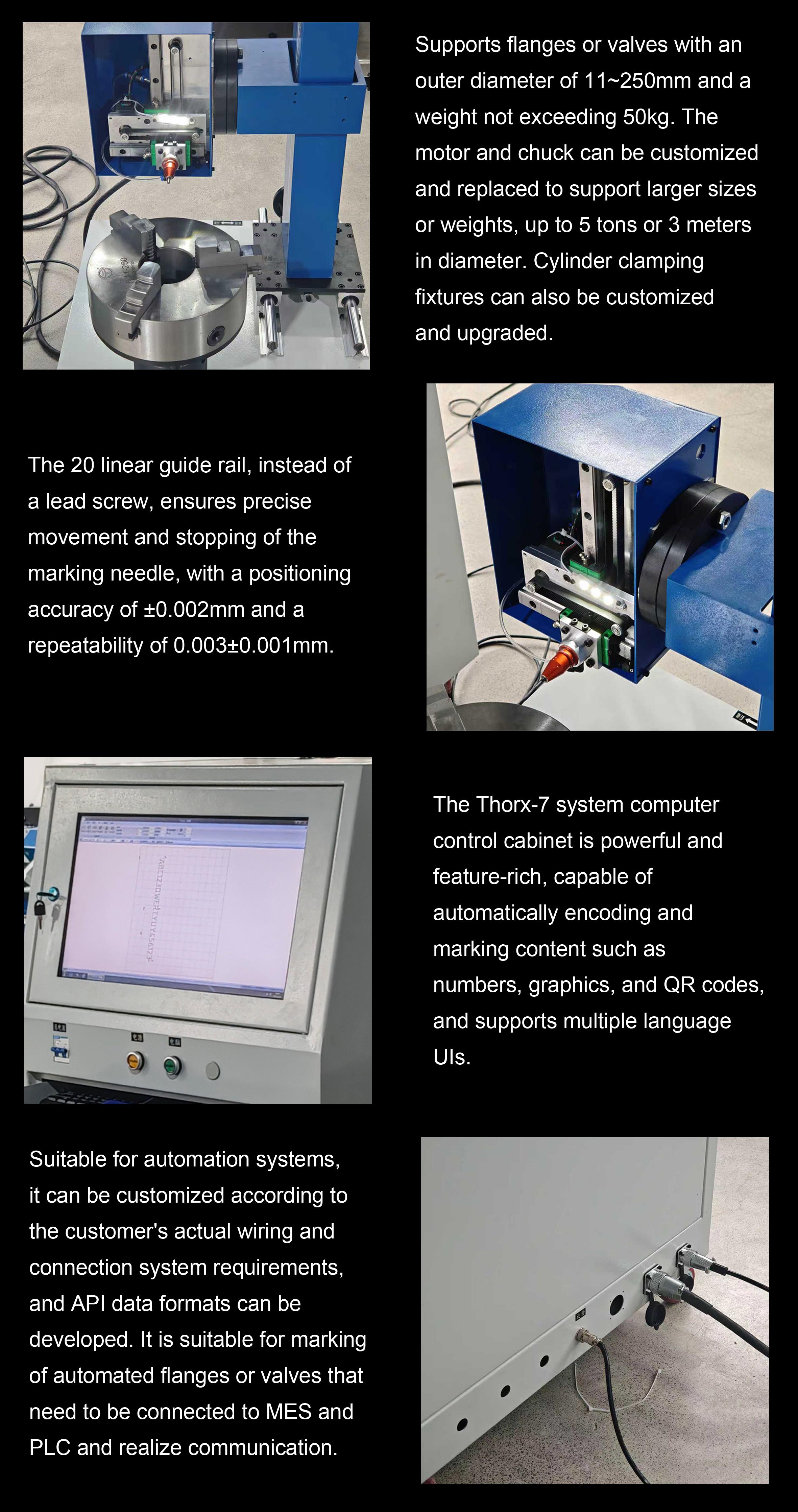

Desktop Flange Dot Peen Rotary Marking Machine
