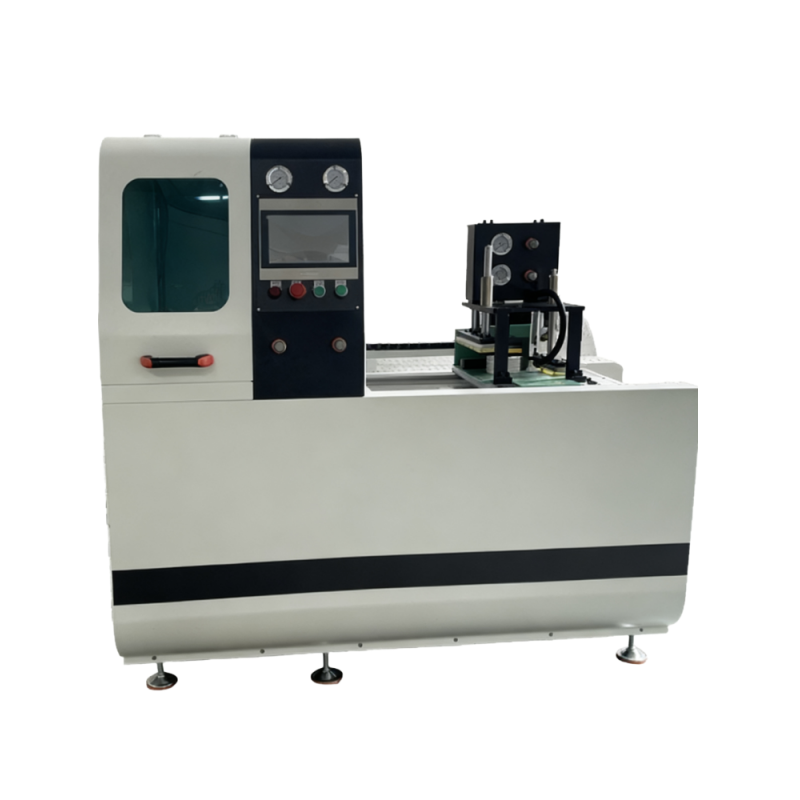

Aluminum Profile High-precision Sawing Machine
This automated cutting equipment excels in high precision and efficiency, relying on a servo system to control feed and material advancement. Paired with a detachable retraction mechanism, it significantly reduces processing defects and material waste. It is primarily used for processing aluminum, copper, and other metal profiles, as well as certain plastic profiles.
MAIN PERFORMANCE
- The high-precision sawing machine features a precision CNC automatic saw, designed with a stable and efficient “back-to-front” cutting method.
- It employs a motor-spindle separation design, ensuring high saw blade utilization and strong load capacity.
- Suitable for cutting and blanking various curtain wall, door and window profiles, radiator profiles, industrial profiles, and aluminum formwork.
- Hard alloy saw blades and precision linear guides minimize machine vibration during cutting, ensuring smooth profile surfaces.
- Bus-based PLC control with touchscreen interface allows operators to input dimensions directly. CNC-automated feeding, servo-driven cutting feed, and high-precision machining deliver consistent results.
USE RANGE
Widely applied in metal profile processing and related manufacturing sectors:
- Aluminum Profile Production:
Performs fixed-length cutting and high-precision blanking for architectural doors/windows, curtain wall profiles, and industrial aluminum sections to meet mass production demands;
- Automotive & Rail Transportation:
Cuts automotive aluminum components and high-speed rail structural elements, ensuring dimensional accuracy and assembly consistency;
- Furniture and Appliance Manufacturing:
Cutting aluminum frames for furniture and appliance bezels to achieve smooth, aesthetically pleasing edges that enhance product quality;
- Hardware and Medical Devices:
Performing high-precision cutting on aluminum/copper profiles for hardware fittings and medical equipment, meeting demands for miniaturization and precision machining.
MAIN TECHNICAL PARAMETERS AND REQUIREMENTS
- Control Method：CNC Control System
- Main Motor Power：4KW
- Single Feed Length：720mm
- Main Motor Speed：3000 rpm
- Blade Dimensions：Ф450×25.4×80T (Blades under 450mm diameter can be installed)
- Profile Cutting Width：360mm
- Profile Cutting Height：155mm
- Moving Head Positioning Speed：18m/min
- Rated Voltage：380V/50Hz
- Rated Air Pressure： 0.6~0.8 MPa
- Machine Dimensions ：(L×W×H) 1920mm × 1350mm × 1600mm
APPLICATION
- New Energy Vehicle Component Machining
Components for new energy vehicles—such as battery aluminum busbars, motor housings, and charging station aluminum alloy frames—demand exceptionally high precision in cutting and surface finish.
- Industrial Radiator Processing
Aluminum alloy radiators for industrial equipment and home appliances feature densely spaced fins. Uneven cutting force or retraction scratches during cutting directly compromise heat dissipation. The retractable blade structure of the servo-driven automatic saw prevents blade retraction from scraping radiator end faces, while the uniform force of servo feed prevents fin deformation.
- Architectural Door/Window & Curtain Wall Processing
Aluminum door/window frames and curtain wall profiles in construction require batch cutting with strict length consistency to ensure installation sealing.
- General Aluminum Product Processing
Common industrial aluminum profiles like rods, tubes, and bars serve as foundational components for various machinery. Processing scenarios span batch production in building material factories to custom fabrication in small workshops.
