Product details

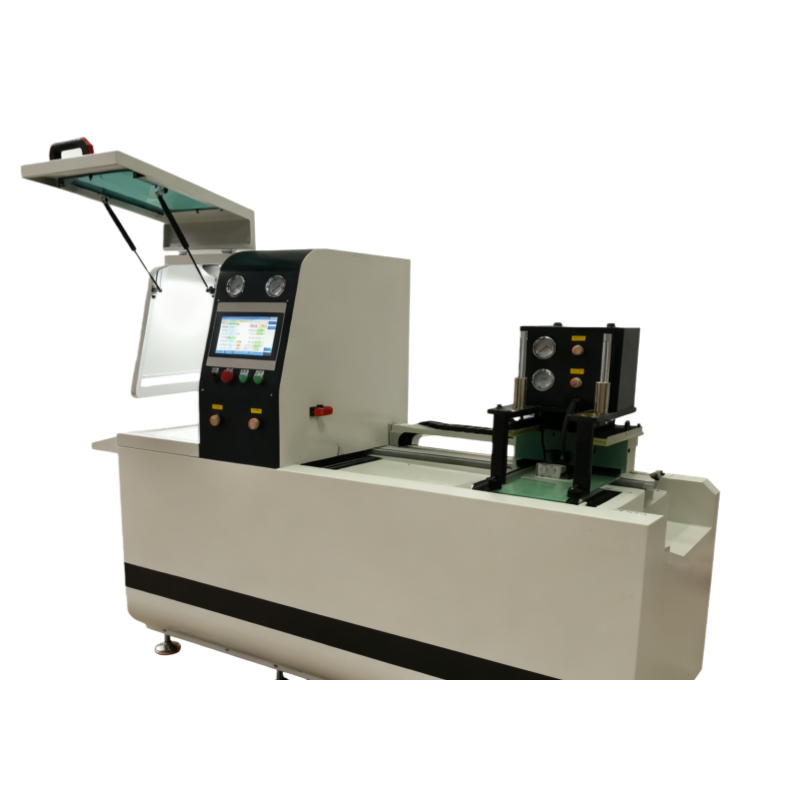

Servo Feed Automatic Saw for Aluminum Profile

This CNC sawing machine excels in high precision and efficiency, relying on a servo system to control feed and material advancement. Paired with a detachable retraction mechanism, it significantly reduces processing defects and material waste. It is primarily used for processing aluminum, copper, and other metal profiles, as well as certain plastic profiles. It is a kind of processing forming machine for aluminum materials.

MAIN PERFORMANCE

The high-precision sawing machine features a precision CNC automatic saw, designed with a stable and efficient “back-to-front” cutting method.
It employs a motor-spindle separation design, ensuring high saw blade utilization and strong load capacity.
Suitable for cutting and blanking various curtain wall, door and window profiles, radiator profiles, industrial profiles, and aluminum formwork.
Hard alloy saw blades and precision linear guides minimize machine vibration during cutting, ensuring smooth profile surfaces.
Bus-based PLC control with touchscreen interface allows operators to input dimensions directly. CNC-automated feeding, servo-driven cutting feed, and high-precision machining deliver consistent results.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Control Method：CNC Control System
Main Motor Power：4KW
Single Feed Length：720mm
Main Motor Speed：3000 rpm
Blade Dimensions：Ф450×25.4×80T (Blades under 450mm diameter can be installed)
Profile Cutting Width：360mm
Profile Cutting Height：155mm
Moving Head Positioning Speed：18m/min
Rated Voltage：380V/50Hz
Rated Air Pressure： 0.6~0.8 MPa
Machine Dimensions ：(L×W×H) 1920mm × 1350mm × 1600mm

APPLICATION

New Energy Vehicle Component Machining

Components for new energy vehicles—such as battery aluminum busbars, motor housings, and charging station aluminum alloy frames—demand exceptionally high precision in cutting and surface finish.

Industrial Radiator Processing

Aluminum alloy radiators for industrial equipment and home appliances feature densely spaced fins. Uneven cutting force or retraction scratches during cutting directly compromise heat dissipation. The retractable blade structure of the servo-driven automatic saw prevents blade retraction from scraping radiator end faces, while the uniform force of servo feed prevents fin deformation.

Architectural Door/Window & Curtain Wall Processing

Aluminum door/window frames and curtain wall profiles in construction require batch cutting with strict length consistency to ensure installation sealing.

General Aluminum Product Processing

Common industrial aluminum profiles like rods, tubes, and bars serve as foundational components for various machinery. Processing scenarios span batch production in building material factories to custom fabrication in small workshops.
