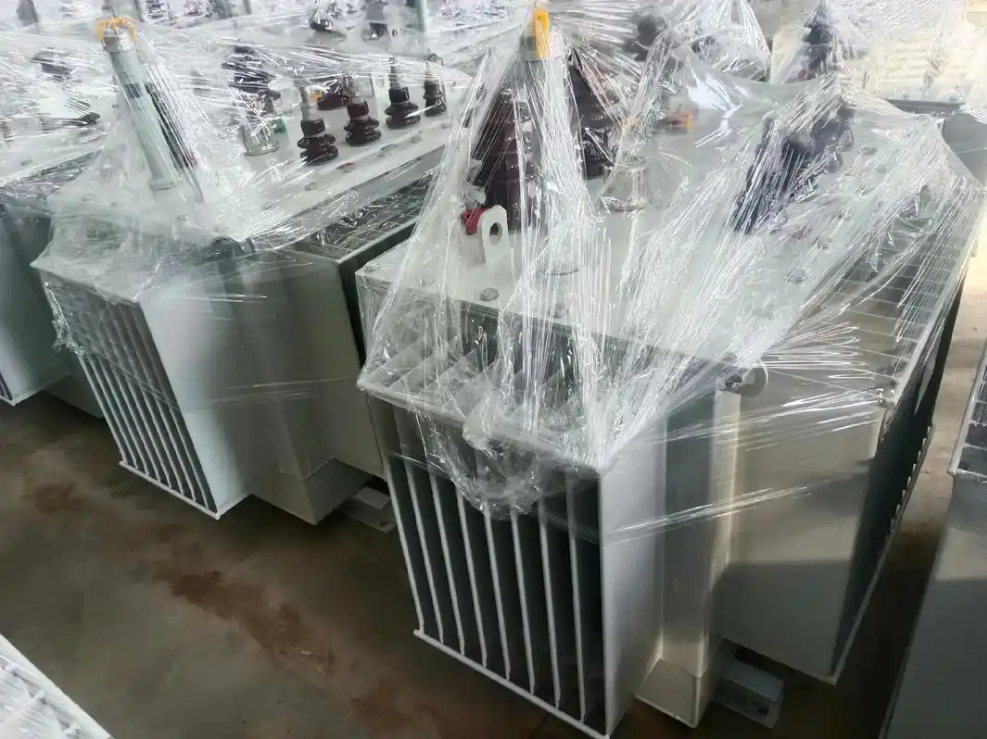

Three Phase 800KVA 1000KVA 1500KVA 2MVA 2.5MVA Oil-immersed Distribution Transformer

2 week ago

2 0 

GNEE (Tianjin) Multinational Trade Co.,Ltd

2 year

Product details

An oil-immersed distribution transformer, also known as an oil-filled transformer, is a type of electrical transformer that uses oil as both an insulating and cooling medium. These transformers are widely used in electrical power distribution and transmission networks due to their efficiency and reliability. Pearl Electric, a professional and reliable manufacturer of oil immersed distribution transformers, designs and produces 500KVA~2500KVA oil immersed distribution transformers.

According to the customer's project requirements, we provide customized transformer services.

According to the different insulation materials, Pearl Electric can provide mineral oil distribution transformers without PCB, environmentally friendly FR3 vegetable oil distribution transformers, and NINAS oil distribution transformers.

According to the different requirements of iron core materials, Pearl Electric can provide oil-immersed transformers with silicon steel sheet iron cores and oil immersed transformers with amorphous alloy iron cores. Among them, amorphous alloy oil immersed transformers are ultra-high efficiency transformers with losses only 20-30% of silicon steel sheet transformers, which are very suitable for projects with high energy efficiency requirements.

Model	Rated Capacity	Rated H.V.	Rated L.V.	Insulation Oil	Core Material	Winding Material
PEO-S-*KVA/HV/LV	500KVA 800KVA 1000KVA 1500KVA 2000KVA 2500KVA	6KV 10KV 11KV 13.2KV 13.8KV 15KV 22KV	230V 400V 415V 480V 660V	Mineral Oil without PCB FR3 Vegetable Oil NINAS Oil	Silicon Steel Amorphous Alloy	Copper Aluminum

Model NO.

800KVA 1000KVA 1500KVA 2MVA 2.5MVA

Core

Core-type Transformer

Cooling Method

Oil-immersed Type Transformer

Winding Type

Two-winding Transformer

Certification

ISO9001-2000, ISO9001, CCC, Kema

Usage

Distribution Transformer

Frequency Characteristics

Power Frequency

Shape of Core
