A10VSO140DFR1/DFR1 Upper-Level Control Valve

2 week ago

3 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

A4VSO125/180DR/DRG Axial Piston Variable Displacement Pump & A10VSO140DFR1/DFR1 Upper-Level Control Valve

A4VSO125/180DR/DRG Axial Piston Variable Displacement Pump

1. Product Overview

• Type: High-pressure axial piston variable displacement pump designed for open-circuit hydraulic systems.

• Displacement Options: Available in two sizes—125 cm³/rev and 180 cm³/rev—to meet varying flow requirements.

• Control Modes:

• DR: Pressure control or remote control, adjusting pump output pressure to match system demands.

• DRG: Integrates pressure compensation functionality on top of DR for more precise pressure and flow regulation.

2. Technical Features

• High Pressure & Efficiency: Rated pressure of 280 bar and peak pressure of 350 bar, suitable for high-pressure applications.

• Low Noise & Long Service Life: Features a swashplate design that optimizes suction characteristics, reducing noise and extending bearing life.

• Modular Design: Compact structure with flexible mounting options for easy integration into hydraulic systems.

3. Applications

• Ideal for construction machinery (e.g., excavators, cranes), industrial equipment (e.g., injection molding machines, die-casting machines), and marine/offshore engineering applications requiring high-pressure, large-flow hydraulic power.

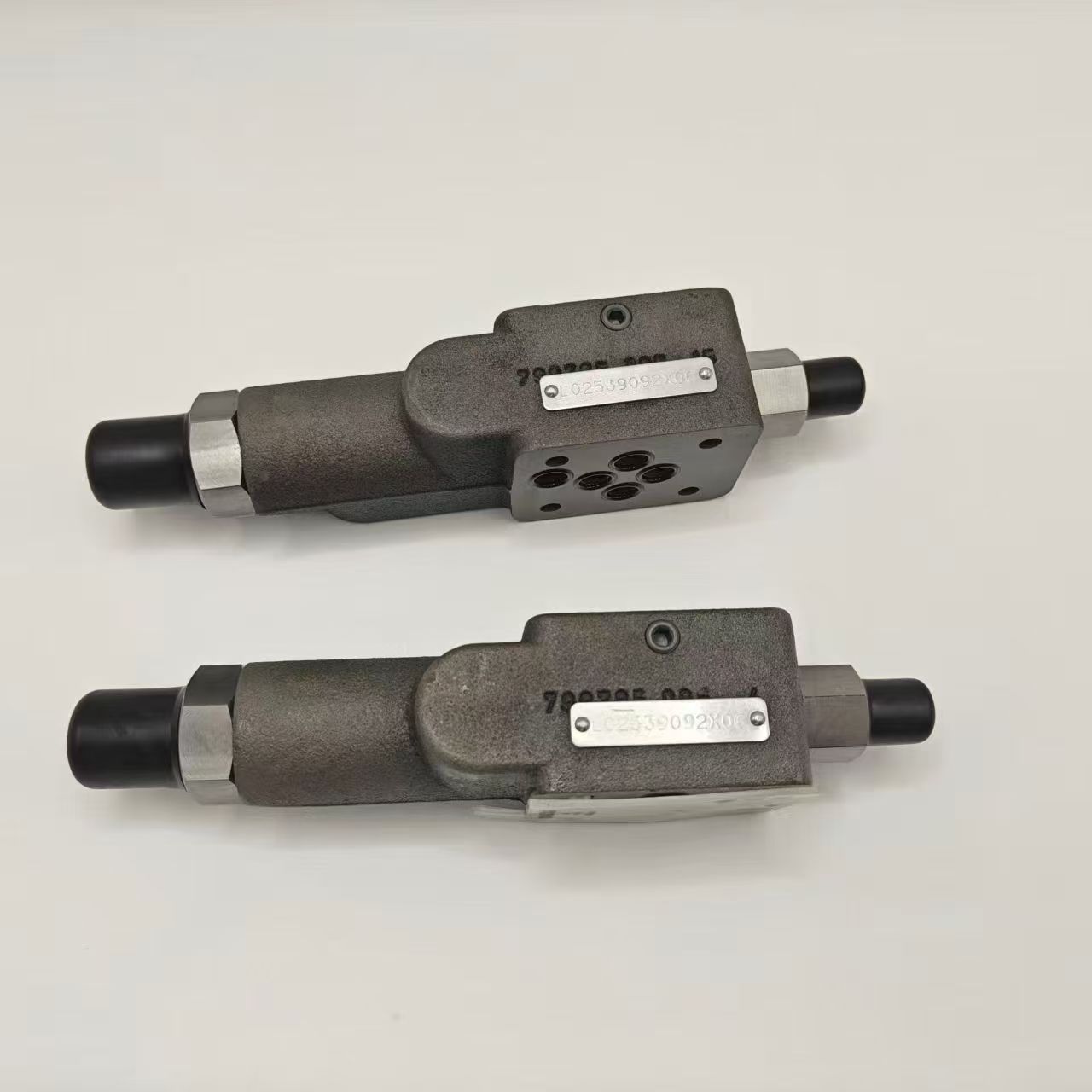

A10VSO140DFR1/DFR1 Upper-Level Control Valve

1. Product Overview

• Type: Upper-level control valve paired with the A10VSO140 axial piston pump for regulating displacement, pressure, or flow.

• Model Breakdown:

• DFR1: Indicates pressure/flow control capabilities; the "1" denotes an X-port design without orifices for improved dynamic response.

• Upper-Level Valve: Typically mounted atop the pump and directly connected to its adjustment mechanism for precise control.

2. Technical Features

• Electro-Hydraulic Proportional Control: Adjusts pump displacement via electrical signals (e.g., PWM or current signals) for stepless speed regulation.

• High Sensitivity & Fast Response: Rapidly adapts to load changes to ensure system stability.

• Integrated Design: Some models incorporate pressure cutoff, load-sensing, and other functions to simplify hydraulic system layouts.

3. Applications

• Used in conjunction with the A10VSO140 pump in construction machinery (e.g., rotary drilling rigs, concrete pump trucks), agricultural equipment, and mining machinery requiring dynamic power matching.

Combined Advantages

• Synergistic Operation: The A4VSO/A10VSO pumps, paired with upper-level control valves, enable closed-loop control of pressure, flow, and power, enhancing system energy efficiency.

• Energy-Saving & Precision: Variable displacement reduces energy waste, while the upper-level valve ensures smooth equipment operation.

• Versatility: Supports multiple control modes (e.g., constant pressure, constant flow, load-sensing) to suit diverse operating conditions.
