Diamond drilling machine for four-leaf clover stone setting

8 month ago

16 0 

Dongguan Weldo automatic equipment technology co.,Ltd

9 month

Product details

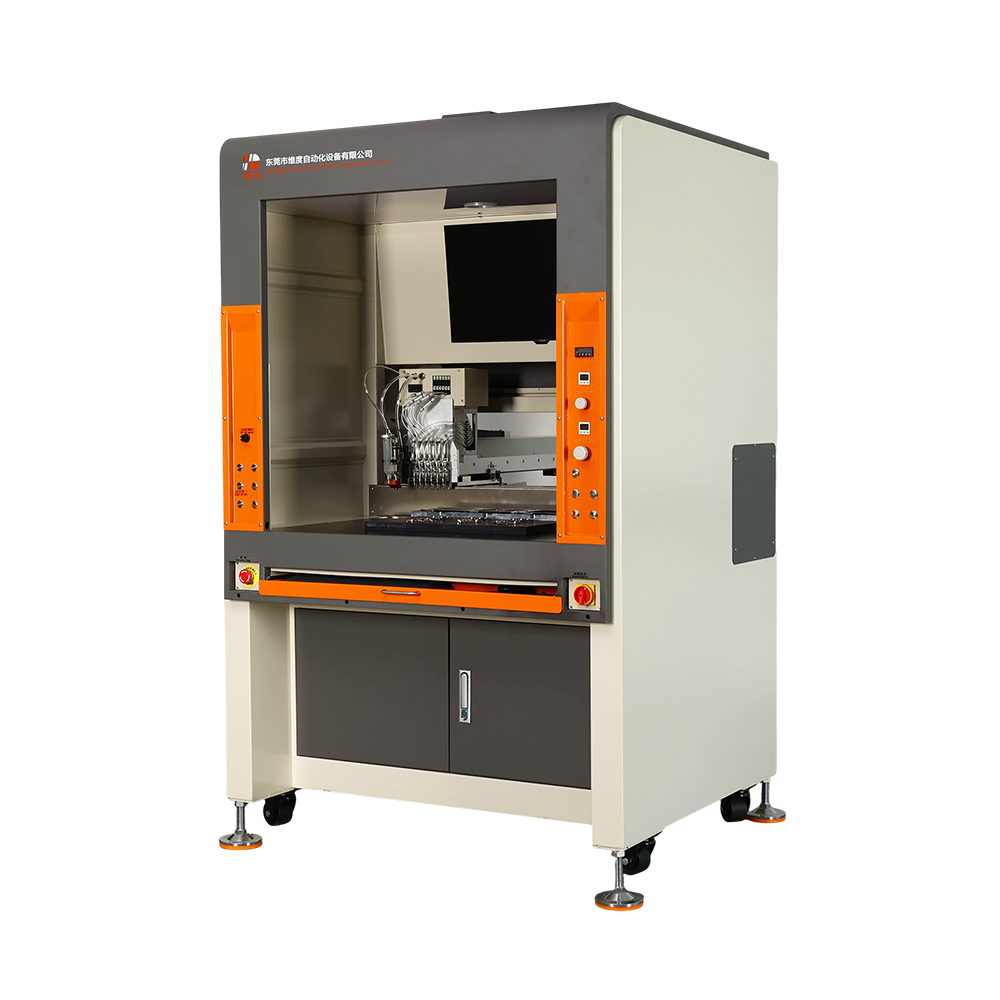

Crystal Stone Setting Equipment for Bag Design

The Crystal Stone Setting Equipment for Bag Design is a specialized machine engineered for the precise application of adhesives and rhinestones on products—such as handbags—that feature metal embellishments.

This Diamond Setting Machine is primarily utilized to accurately position items such as rhinestones and gemstones, enabling the rapid and precise placement of these decorative elements at designated locations on bags. When used in conjunction with epoxy resin, it ensures that the rhinestones are securely and permanently bonded to the product surface.

This Automatic Stone Setting Machine is equipped with an auxiliary sorting mechanism for rhinestones; regardless of how haphazardly the stones are scattered, the device can quickly sort them and arrange them neatly onto the placement tray.

This Stone Setting Machine for Jewelry employs high-definition industrial cameras for recognition and positioning. By utilizing both upper and lower cameras to pinpoint the exact locations of the rhinestone tray and the bag itself, the system minimizes the need for manual intervention, adjustments, and repetitive operations—making it particularly well-suited for handbags that incorporate metal accessories.

Jewelry Stone Setting Machine Operation Workflow:

Jewelry Stone Setting Machine Operation Workflow:

The dispensing valve applies the epoxy resin adhesive.

The camera identifies the position of the rhinestones, and the pickup tool retrieves a stone.

The machine precisely places the rhinestone according to a pre-programmed path.

The product is left to rest on a level surface to allow the adhesive to cure.

Technical Parameter

Model: WD600-VDS

Run distance: X:600mm Y:480mm Z:50mm

Worktabel size: 500*400mm

Minimum spray glue amount: 0.001ml

Minimum spray glue time: 3ms

Pick and put precision: 0.01mm

Pick and put speed: 3pcs/s

Position Accuracy:±0.02mm

CCD resolution: 4000*3000pi

Transition: Screw balling and linear

Servo motor：AC servo motor&driver

Input voltage： 220V±10% 50Hz

Machine size:1340（L）*1330(W)*2050(H)mm
