Diamond setting machine for round rabbit-shaped jewelry diamond setting

Precision Diamond Setting Machine for Jewelry

The Precision Diamond Setting Machine for Jewelry is a powerful and highly sophisticated automatic stone-setting machine.

It has been designed by WELDO specifically for the processing of jewelry and the manufacturing of high-end accessories.

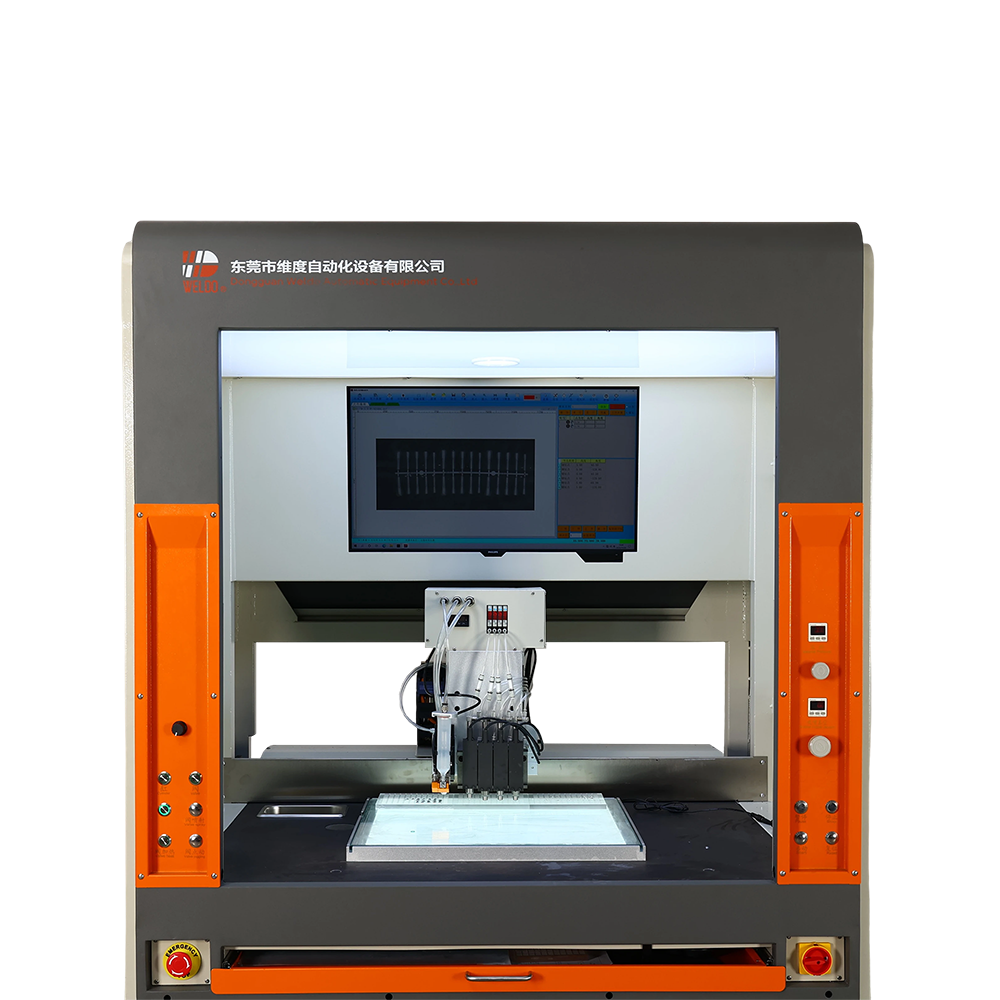

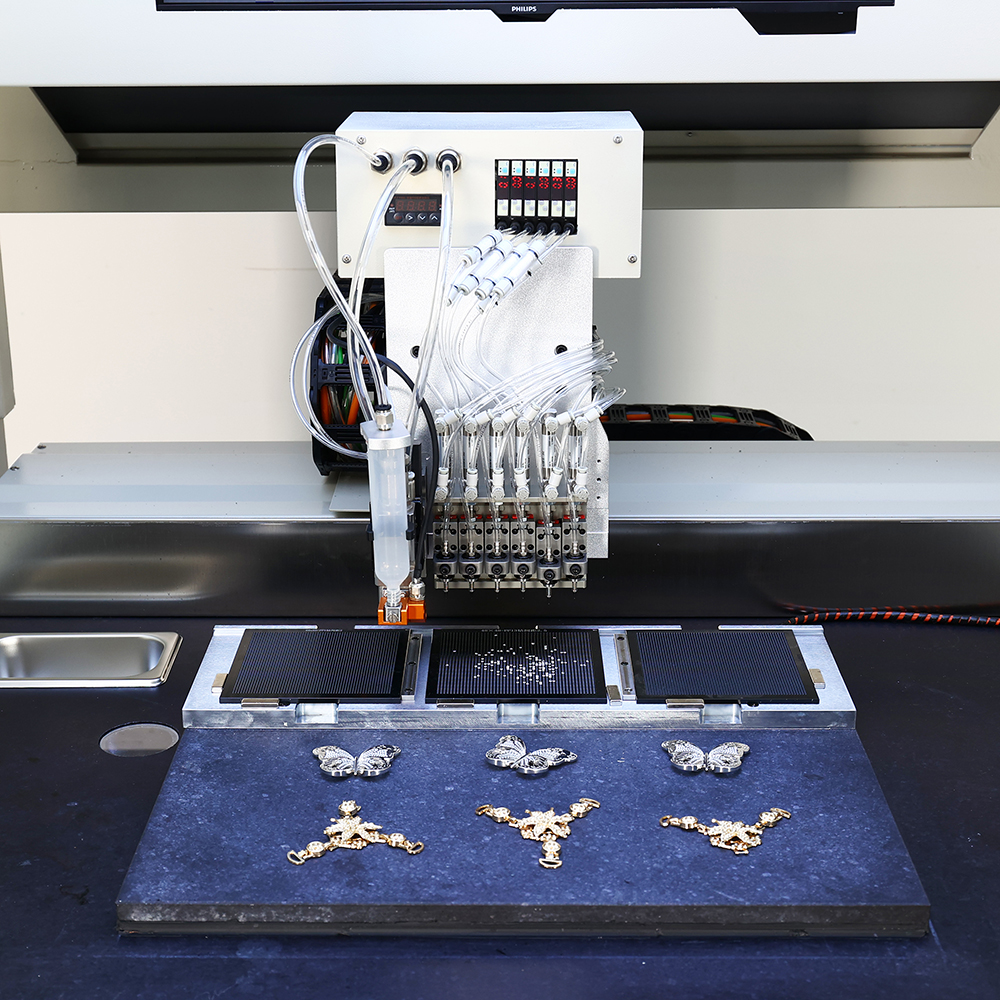

This diamond-setting machine is primarily utilized within the accessories industry to precisely place diamonds, gemstones, and similar flat-backed components. The process begins with WELDO’s uniquely designed 741 dispensing head applying the customer's specified adhesive to the designated location on the accessory. Subsequently, a vision system accurately locates the accessory's position, retrieves a diamond from the diamond tray, and places it onto the designated spot.

One of its most significant highlights is its intelligent vision recognition system. Leveraging high-precision industrial cameras, this automatic stone-setting machine can automatically detect the location of the accessory, determine its orientation, and place the diamond onto the specified position—thereby achieving "visual precision and stable gripping.

This stone-setting machine for jewelry can be seamlessly integrated with WELDO’s Visual Dispensing Machines to meet the diverse application requirements of various adhesive materials within the production process.

It effortlessly resolves common challenges encountered during the production of a wide range of products—including metal fittings, creative gifts, nail art accessories, badges, zipper pulls, hairpins, trophies, and medals—such as uneven coloring, the formation of bubbles and pinholes, poor adhesive flow, and misaligned stone placement.

Furthermore, we offer customized services tailored to your specific production requirements.

This diamond-setting machine is ideally suited for the following clients:

In-house manufacturing facilities for major brands; jewelry manufacturing plants; in-house factories for gift and accessory companies; and manufacturing facilities specializing in luggage, bags, and apparel accessories.

Key Advantages:

1. Precision Visual Positioning – The CCD camera automatically detects stone position, orientation, and front/back alignment.

2. Accurate Direction Adjustment – The vision system ensures each picked stone is rotated to the correct direction and placed with micron-level accuracy.

3. Flexible Combination – The glue spray gun can work together with the nozzles for integrated glue dispensing and stone setting, or operate independently for enamel painting and doming.

4. High Production Efficiency – Intelligent path planning for glue dispensing and stone setting significantly improves throughput and production capacity.

Technical Parameter

Model: WD600-VDS

Run distance: X:600mm Y:480mm Z:50mm

Worktabel size: 500*400mm

Minimum spray glue amount: 0.001ml

Minimum spray glue time: 3ms

Pick and put precision: 0.01mm

Pick and put speed: 3pcs/s

Position Accuracy:±0.02mm

CCD resolution: 4000*3000pi

Transition: Screw balling and linear

Servo motor：AC servo motor&driver

Input voltage： 220V±10% 50Hz

Machine size:1340（L）*1330(W)*2050(H)mm

、
