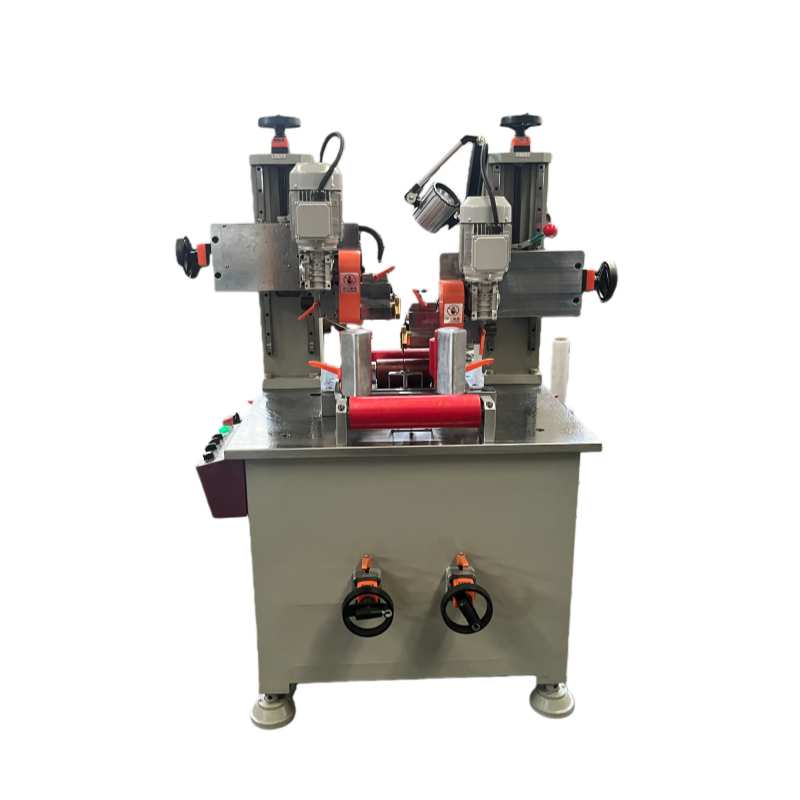

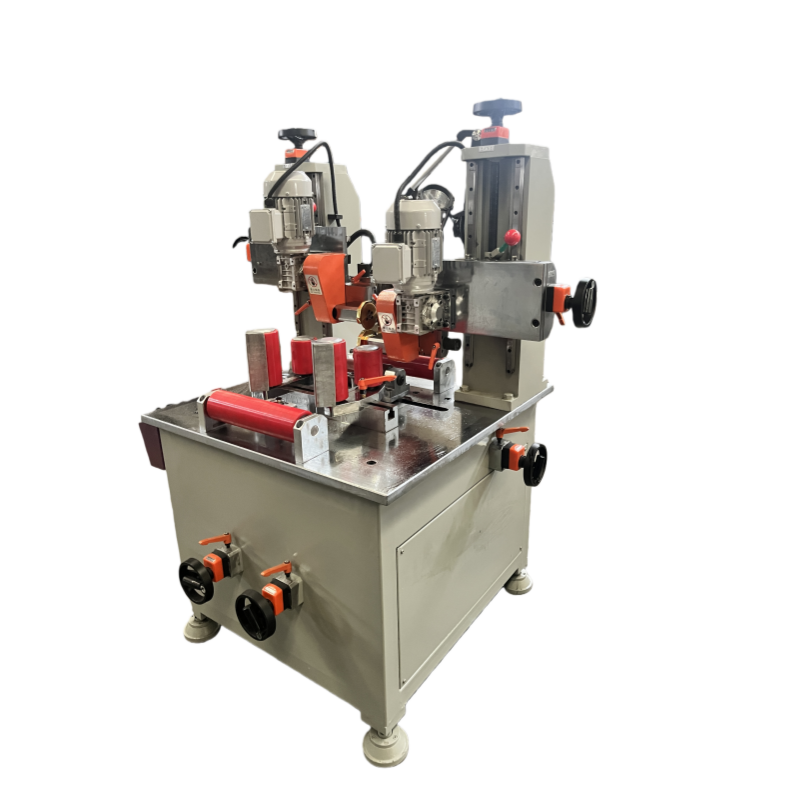

Knurling Machine
2 month ago
The Aluminum Profile Thermal Processing Equipment is the core specialized equipment for producing thermal break aluminum profiles with inserted thermal strips. It is primarily used to precisely insert thermal strips (typically PA66 nylon strips or PVC strips) into the grooves of two aluminum alloy profiles. Simultaneously, it can incorporate a notching function to enhance the bonding strength between the profiles and thermal strips, ultimately forming thermal break aluminum profiles with excellent thermal insulation properties.
- A complete assembly line for the thermal break strip assembly and fix firmly. Including the functions: knurling, strip feeding, rolling press.
- Flexibility: suitable for different shaped aluminum profiles
- High efficiency
- Stable performance
- High precision, aluminum profile processed will not become deformed
- Durable and long work life
- Easy / simple operation
- Solid and qualified thicker material makes the machine firmer in movements, so the profile is straighter
- Voltage: 380V
- Frequency:50HZ
- Motor total power:1.1KW (380V～0.55KW×2)
- Knurling adjust range: width:0～260mm ； Height:0～220mm
- Knurling blade diameter:φ80
- Overall size:1040mm×1350mm×1550mm
- External air pressure:0.6～1.0Mpa
- Profile processing speed:0～70m/min
- Profile size:W 260mm× H 220mm
- Weight:1000kg
- Production of thermal break aluminum profiles for various doors and windows
- High-end architectural profiles for curtain walls, sunrooms, partition systems, etc.
- Body structural components for new energy vehicles
- Rail transit vehicle profiles
- Cold chain logistics equipment profiles
- Voltage:380V
- Frequency:50HZ
- Profile size:W260mm×H 300 mm
- Roller diameter:φ238
- Total power: Master motor power:3KW(380V),lifting motor:0.55KW
- Overall size:1460mm×1400mm×1460mm
- Processing speed: 0～70m/min
- Rolling plate adjust range:Height 0～100mm
- External air pressure:0.6~0.8Mpa
- Weight:1800kg
- Energy-efficient window and door profiles for various civil and industrial buildings
- High-end curtain wall systems, sunroom, and partition wall profiles
- Special structural profiles including aluminum-wood composite and aluminum-plastic composite
- Lightweight structural components for new energy vehicle bodies
- Thermal insulation profiles for rail transit vehicles
- Cold chain logistics equipment and refrigeration unit housing profiles
