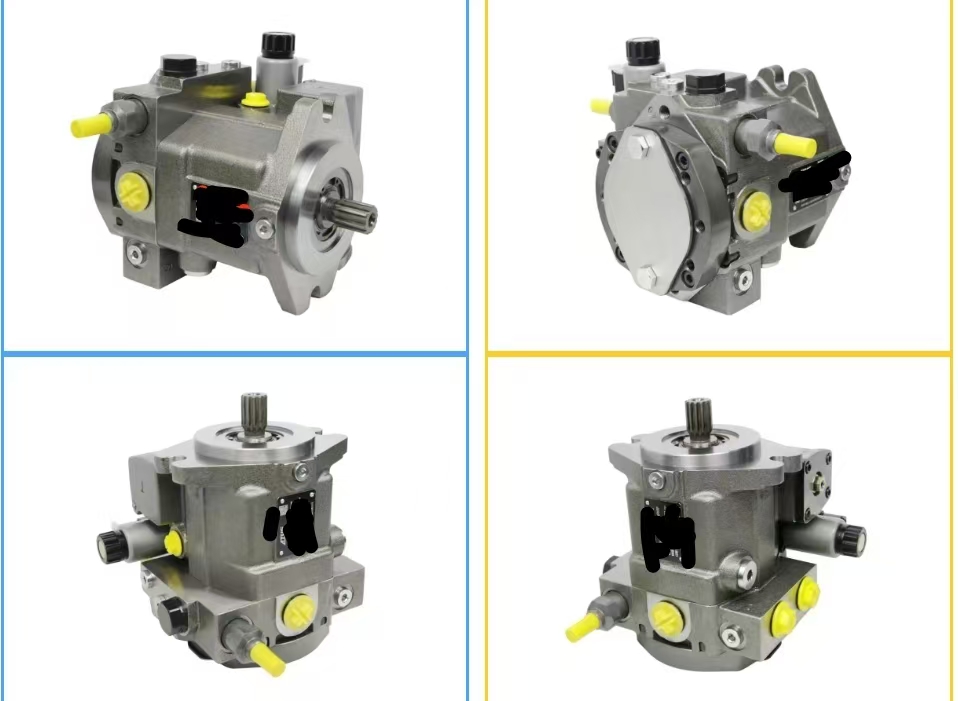

A10VG18EP Series Axial Piston Variable Displacement Pump

2 month ago

1 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

Characteristics of the A10VG Series:

• Applied in closed-loop systems, primarily used in agricultural machinery and construction machinery.

• 〓- The A10VG series offers displacement options of 18, 28, 45, and 63 cc.〓

• Nominal pressure: 300 bar.

• Peak pressure: 350 bar.

• It is a swashplate-designed axial piston variable displacement pump used for hydrostatic transmission in closed circuits.

• The flow rate is proportional to the drive speed and displacement, and it is infinitely variable.

• As the swashplate swing angle increases from 0 to its maximum value, the output flow rate increases.

• When the swashplate passes through the neutral position, the flow direction changes smoothly.

• A wide range of highly adjustable control devices are available to achieve different control and regulation functions.

• The pump is equipped with two pressure relief valves on the high-pressure port side to prevent overloading of the hydrostatic transmission (pump and motor).

• The high-pressure relief valves can also serve as makeup oil valves.

• The built-in makeup oil pump acts as both a feed pump and a control oil pump.

• The maximum makeup oil pressure is limited by the built-in makeup oil relief valve.
