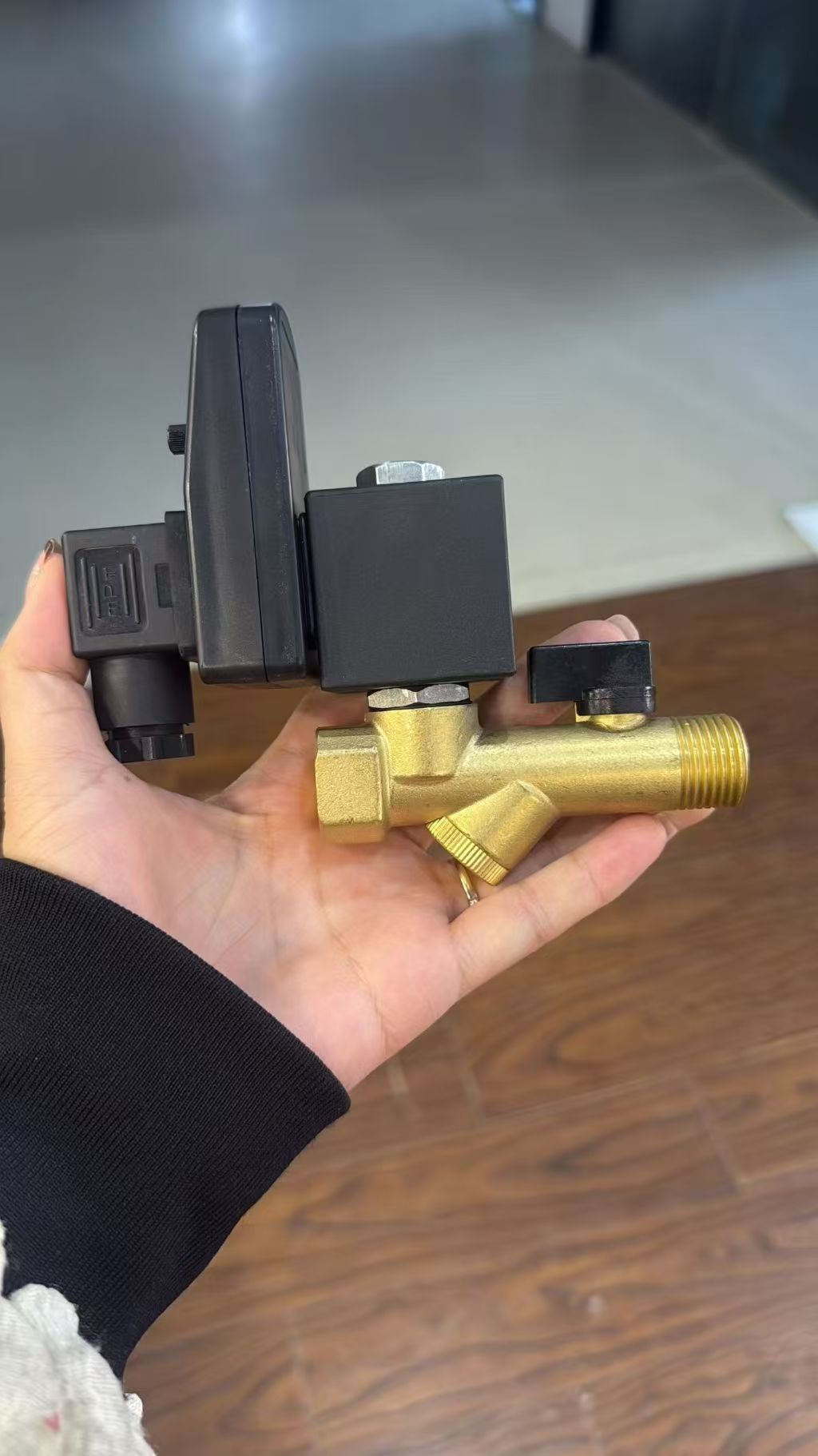

Auto pneumatic valve ADVT
5 week ago
Product details
I. Core Definition and Working Principle
An auto pneumatic valve is an automated device powered by compressed air, utilizing a pneumatic actuator (such as a piston, rack-and-pinion, or scotch-yoke mechanism) to drive the valve core for fluid control, enabling on/off switching or flow regulation. Its key components include a pneumatic actuator, valve body, and control accessories (e.g., positioners, sensors). It features rapid response, immunity to electromagnetic interference, and adaptability to harsh environments.
II. Technical Features of ADVT (Inferred from Industry Standards)
1. Actuator Types
• Double-Acting Pneumatic Actuator: Drives valve core rotation bidirectionally via dual air pressure, suitable for frequent switching or bidirectional regulation (e.g., pipeline flow control).
• Single-Acting Pneumatic Actuator: Relies on spring return for single-direction movement, automatically resetting to a safe position upon air loss (e.g., emergency shutdown valves), ideal for fail-safe modes.
2. Valve Body Structures
• Ball/Butterfly Valves: Rotary valve cores with 90° or 180° rotation for rapid opening/closing, suitable for large diameters and low flow resistance (e.g., natural gas pipelines).
• Globe/Gate Valves: Linear valve cores for precise flow control via lifting motion, ideal for high-pressure differentials or medium isolation (e.g., steam systems).
3. Control Modes
• On/Off Type: Responds to binary signals (open/close) for full opening or closure, applicable to non-regulating scenarios (e.g., fire protection systems).
• Modulating Type: Adjusts valve core position via analog (4-20mA) or digital signals for 0–100% continuous regulation, suitable for process industries (e.g., refinery reactors).
4. Additional Functions
• Smart Feedback: Integrated position sensors monitor valve core position in real time, enabling remote monitoring and closed-loop control.
• Explosion-Proof Design: Compliant with ATEX/IECEx standards to prevent ignition from sparks, ideal for hazardous environments (e.g., petrochemical plants).
• High/Low-Temperature Adaptability: Uses heat-resistant seals (e.g., fluororubber) or cooling structures for extreme temperatures (e.g., boilers, cryogenic steam pipelines).
III. Typical Applications
1. Industrial Automation Control
• Precisely regulates pipeline flow, pressure, or temperature in chemical, metallurgical, and power industries to stabilize production. Example: Modulating pneumatic valves control reactor feed flow in refineries for optimal efficiency.
2. Emergency Shutdown Systems
• Single-acting actuators drive emergency shutdown valves that automatically close upon air loss or signals, preventing leaks or escalation. Example: Explosion-proof pneumatic valves isolate natural gas pipeline leaks.
3. High-Frequency Operation Scenarios
• Low-friction actuators (e.g., specially lubricated cylinders) support rapid valve cycling for packaging machinery or automated production lines.
IV. Advantages
1. Rapid Response: Millisecond-level switching speed outperforms electric valves, critical for emergency shutdowns or high-frequency regulation.
2. High Reliability: Simple structure with no complex circuitry, resistant to electromagnetic interference, suitable for flammable/explosive environments.
3. Harsh Environment Adaptability: Withstands high temperatures, corrosion, and dust; materials like stainless steel or fluorine-lined options extend service life.
4. Low Maintenance Cost: Modular design simplifies part replacement, reducing downtime and long-term expenses.
5. Enhanced Safety: Fail-safe modes (e.g., air loss triggers opening/closing) ensure system protection.
V. Selection Guidelines
1. Define Operating Conditions
• Select valve body material (e.g., stainless steel, titanium alloy) and seal type (hard/soft sealing) based on medium type (liquid/gas), pressure, temperature, and flow range.
2. Determine Control Mode
• Choose on/off valves for non-regulating applications; opt for modulating valves with positioners for precise flow/pressure control.
3. Assess Safety Requirements
• Use explosion-proof valves in hazardous zones and balanced trim or piston actuators for high-pressure differentials.
4. Evaluate Environmental Adaptability
• High-temperature environments require heat-resistant seals; low-temperature systems need insulation; dusty settings demand enhanced dustproofing.
