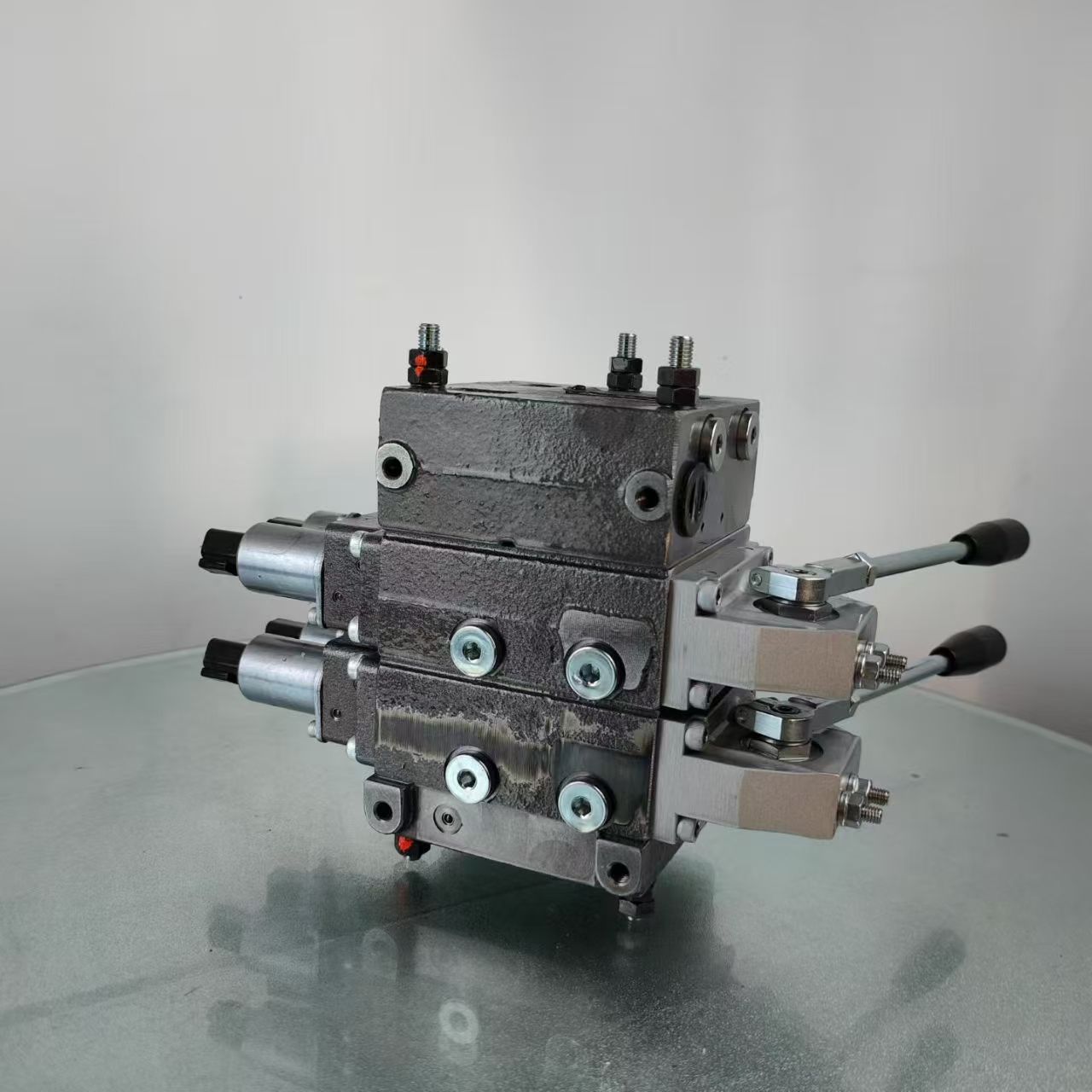

Hydraulic Multi-way Directional Control Valve
AHydraulic Multi-way Directional Control Valveis a combined valve used in hydraulic systems to control the flow direction, pressure, and flow rate of hydraulic oil, enabling the operation of multiple actuators (e.g., hydraulic cylinders, hydraulic motors) in complex mechanical equipment. Below is a detailed introduction covering its core functions, structural features, technical advantages, applications, and selection criteria.
------
I. Core Functions
1. Multi-circuit Control
• Composed of two or more directional control valves, it simultaneously operates multiple actuators to meet the motion requirements of sophisticated machinery.
2. Integrated Design
• Incorporates auxiliary valves such as relief valves, overload valves, makeup valves, flow dividers, brake valves, and check valves based on system demands, reducing piping connections and simplifying system structure.
3. Directional Control
• Alters oil flow paths by relative movement between the valve spool and body, enabling actuator actions like start, stop, forward, and reverse motion.
4. Pressure & Flow Regulation
• Some models feature pressure compensation to maintain stable actuator motion. Throttling ports adjust the speed of hydraulic cylinders or motors.
------
II. Structural Features
1. Monoblock vs. Modular (Sectional) Design
• Monoblock: Single-piece valve body suitable for systems with fewer actuators.
• Modular (Sectional): Composed of multiple valve sections bolted together, allowing flexible combinations (e.g., 1–10 sections) for complex systems with numerous actuators.
2. Oil Circuit Configurations
• Parallel Circuits: Actuators operate independently without interference.
• Series Circuits: Hydraulic oil flows sequentially through actuators for sequential motion.
• Series-Parallel Circuits: Combines series and parallel features for intricate motion control.
• Custom Circuits: Specialized designs tailored to specific system requirements.
3. Unloading Methods
• Neutral Unloading: When the valve spool is in the neutral position, pump output returns directly to the tank, reducing power consumption.
• Relief Valve Unloading: A relief valve sets the system’s maximum pressure; excess pressure triggers valve opening to return oil to the tank.
------
III. Technical Advantages
1. Compact Structure
• Integrated design minimizes piping, reduces leakage risks, and saves installation space.
2. Low Pressure Loss
• Optimized flow paths decrease hydraulic resistance, improving system efficiency.
3. Low Spool Movement Resistance
• Precision machining reduces friction between the spool and body, enhancing operational sensitivity.
4. Multi-position Functionality
• Spools with multiple working positions enable complex control logic.
5. Long Service Life
• Wear-resistant materials and optimized sealing structures extend valve lifespan.
6. Simple Manufacturing
• Standardized designs facilitate mass production and cost reduction.
------
IV. Applications
1. Construction Machinery
• Excavators, loaders, cranes, and road rollers use these valves to control boom, bucket, and turret motions.
2. Material Handling Equipment
• Forklifts, hoists, and lifting platforms rely on them for cargo lifting, lowering, and transportation.
3. Agricultural Machinery
• Tractors, harvesters, and irrigation systems utilize them for tilling, harvesting, and irrigation actions.
4. Mining Machinery
• Roadheaders, shearers, and winches employ them for operations for drilling, cutting, and lifting in harsh environments.
5. Other Fields
• Marine, aerospace, military, and environmental equipment leverage these valves for specialized motion control under extreme conditions.
------
V. Selection Criteria
1. Parameter Matching
• Medium Type: Choose seal materials and valve body materials compatible with hydraulic oil, water-based fluids, etc.
• Pressure Rating: Select valves with rated pressure exceeding system maximum pressure.
• Flow Requirement: Match rated flow to actuator demands.
• Temperature Range: Opt for valves suitable for high- or low-temperature environments.
2. Functional Requirements
• Control Method: Choose manual, electric, hydraulic, pneumatic, or electro-hydraulic proportional control based on operational needs.
• Neutral Function: Select O-type (pressure holding), H-type (unloading), M-type (unloading with pressure holding), Y-type (floating), or others per system requirements.
• Additional Features: Prioritize valves with overload protection, makeup oil, flow division, braking, etc., as needed.
3. Installation & Maintenance
• Mounting Style: Choose pipe-mounted, plate-mounted, flange-mounted, or stacked configurations based on system layout.
• Maintainability: Select valves with simple structures for easy disassembly and repair, lowering maintenance costs.
