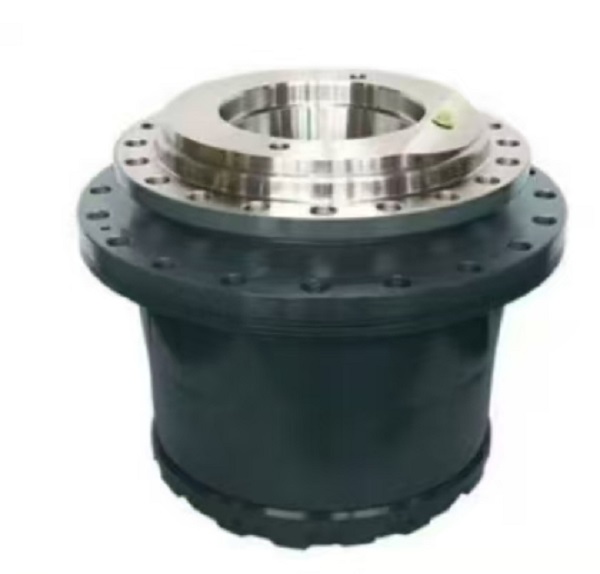

Ouka F80 Travel Reducer Technical Specifications & Maintenance Guide

I. Key Technical Parameters

1. Maximum Output Torque: 80,000 N·m

2. Reduction Ratio: 147:1

3. Recommended Motor: A2FE125/61W-VZL

4. Braking Torque: 600 N·m

5. Applications:

• Widely used in engineering vehicles, crawler excavators, rotary drilling rigs, coal mine roadheaders, down-the-hole drills, rail vehicles, road rollers, and other equipment.

II. Installation Specifications

1. Mounting Tolerances:

• Motor Mounting Bore: H8-grade tolerance

• Frame Mounting Bore: h8-grade tolerance

2. Coupling Sleeve Input Spline:

• Compliant withDIN 5480standard spline specifications.

3. Pre-Installation Checks:

• Inspect the reducer for external damage before installation.

• If the integrated motor interferes with installation, it can be removed temporarily.

4. Fastening Torque:

• Tighten mounting bolts to the specified torque values per standards.

5. Commissioning Requirements:

• Conduct ano-load trial runbefore formal operation.

• Gradually increase load after confirming normal no-load operation.

6. Lubrication:

• Fill with~7.5 L of 220 (40℃) LS2 industrial gear oilbefore operation.

III. Maintenance Guidelines

1. Operating Temperature Range:

• -20℃ to +40℃.

• If ambient temperature exceeds+40℃, implement cooling measures to ensure normal operation.

2. Daily Inspections:

• Check for oil leaks or other abnormalities.

3. Lubricant Replacement Schedule:

• First replacement: After50 hoursof initial use.

• Regular checks: Every100 hoursof operation ormonthly(top up if oil level is low).

• Full replacement: After1,000 hoursof normal operation.

IV. Key Notes

• Ensure compliance withDIN 5480spline standards for coupling sleeve compatibility.

• Strictly follow torque specifications during installation to avoid damage.

• Never operate without proper lubrication; monitor oil levels and quality regularly.

• For extreme temperatures or heavy-duty applications, consult the manufacturer for customized solutions.
