Diamond Bronze Sintered Drill Bits 9025-0301-D251

4 week ago
1 0
Product details

Products Description

   Diamond drill bits—also referred to as diamond core drill bits, diamond hole saws, or bonded diamond drill bits—are precision drilling tools designed for high-accuracy material removal. Commonly known as glass drills or tile drills, their application scope extends far beyond these names.

   Engineered with industrial diamond abrasives, these drill bits are widely used for drilling glass, advanced ceramics, porcelain, ceramic and porcelain tiles, limestone, slate, marble, granite, light stone, and fiberglass. In addition, diamond drill bits are increasingly utilized in optical material processing, such as drilling and shaping optical glass, quartz components, and transparent crystalline materials, where high dimensional accuracy, smooth hole walls, and minimal chipping are critical requirements.

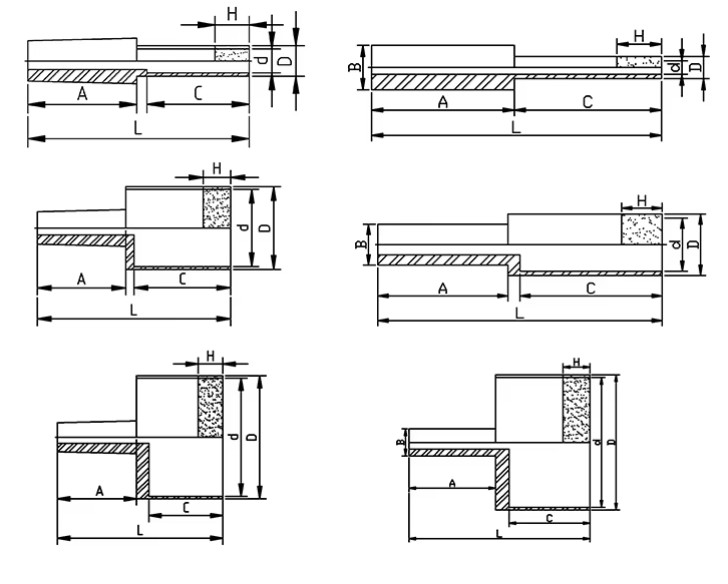

ScreenShot_2025-12-19_183625_132
ScreenShot_2025-12-19_183305_373
ScreenShot_2025-12-19_183319_004
ScreenShot_2025-12-19_183329_100
ScreenShot_2025-12-19_183342_397
Product Paramenters
Type:    Straight/Taper Shank Diamond Core Drill Bit For Optical materials
Material:   Diamond powder, Bronze, 45# Steel
Length:   60mm,65mm
Diameter:  3mm-150mm
Shank:  8mm,10mm
Taper Shank: 45°
Way Of Use:   Wet use
Specification:  Can be customized according to customer needs.
Application:  It is suitable for the Optical materials industry, glass industry, ceramic industry, stone industry, factory machinery to punch holes.
