UPVC Clear integrated flange
3 month ago
Our premium Clear PVC Flange Socket, also called flange pvc and flange socket, is a high-performance fitting for transparent pipeline systems. Made from crystal-clear PVC, it enables visual flow monitoring while forming tight, leak-proof connections between pipes and flanges. Corrosion-resistant, lightweight, and compatible with standard PVC components, it simplifies installation and maintenance, making it ideal for laboratory setups, aquarium lines, and residential plumbing projects that demand both functionality and visibility.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | Clear PVC Flange Socket DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | transparent | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||

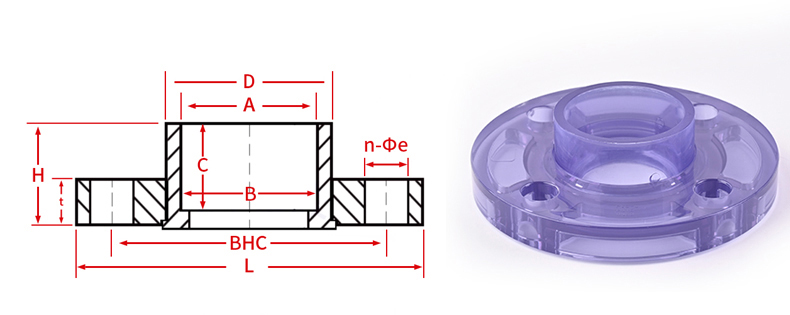

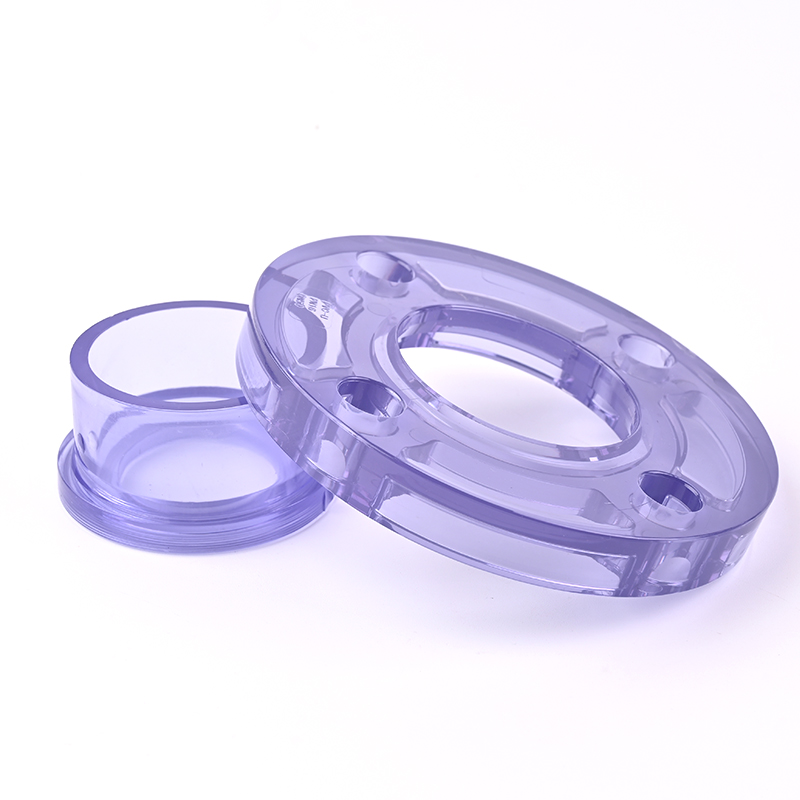

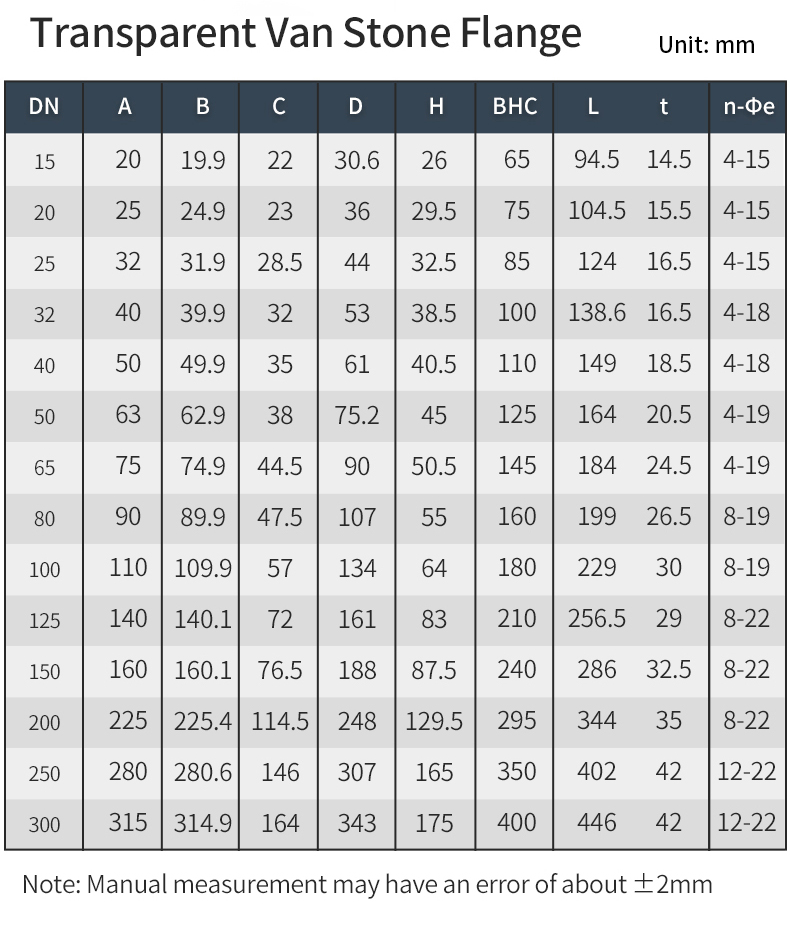

Streamline your industrial piping with our high-clarity UPVC Clear Van Stone Flanges. Designed with a two-piece rotating ring, these clear PVC loose flanges offer unmatched flexibility for easy bolt hole alignment during installation. Built to Schedule 40 standards and compatible with ANSI Class 150 or PN10 bolt patterns, they provide a secure, corrosion-resistant connection. The transparent construction allows for 360-degree visual monitoring of fluid flow and gasket integrity, making them ideal for chemical processing and water treatment systems.
