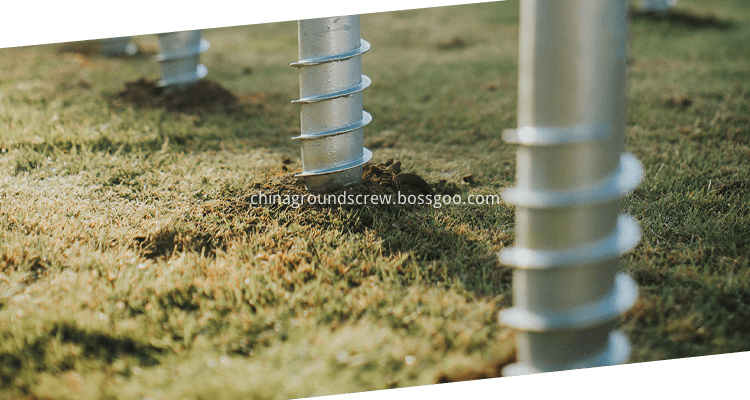

The support of the solar panel on the ground is a very important link for the solar energy system.The support provided by the Ground Pile is stable and firm,simple to operate,and will not damage the surrounding environment.The surface of the Screw Pile is overheated and galvanized,so the Ground Screw Pile can resist corrosion.
Galvanized Ground Screw is used on pile construction projects with easy install,no need power,save time and energy .
The Screw Anchor can be use in vineyard,farm or horse fence,Hot dip galvanized Flange Ground Screw Anchor for lighting pole,timber construction,farm and fencing,house construction,solar energy system.
Material of Ground Screws: Q 235 carbon steel.
Length of the F Series Ground Screw:550-6000 mm.
Ground Screw Pile's diameter: 48 mm,68 mm,76 mm,89 mm,114 mm,according to clients' request.
Thickness of pile:2.75 mm,3.00 mm,3.75 mm,4.00 mm.
Flange diameter:200 mm, thickness:8 mm or according to clients' request.
Automatic pipe cutting machine for pipe cutting,automatic welding robot for welding,the Ground Screw quality is excellent.
Ground Screw Anchor's common size as follow:
|
Diameter(mm) |
Thickness(mm) |
Length(mm) |
|
76 |
2.75 |
1000 |
|
76 |
2.75 |
1200 |
|
76 |
3.0 |
1200 |
|
76 |
3.0 |
1500 |
|
76 |
3.0 |
1800 |
|
89 |
3.0 |
1500 |
|
89 |
3.0 |
1800 |
|
89 |
3.0 |
2100 |
|
114 |
4.0 |
1800 |
|
114 |
4.0 |
2100 |
|
114 |
4.0 |
2500 |
