Adjustable Focus LED Garden Light

Outdoor Dimming LED Garden Light for Landscape Accent

1. Overview

The Outdoor Dimming LED Garden Light is a high-performance architectural landscape luminaire engineered for residential gardens, villa outdoor spaces, commercial landscapes, parks, courtyards, and hospitality environments. Designed with an advanced dimmable driver system, this garden light provides exceptional control over brightness, ensuring that outdoor spaces can be illuminated with precision, ambiance, and flexibility.

In modern lighting applications, users increasingly demand adjustable brightness to satisfy varying functional and aesthetic needs. This product aligns with that demand by providing a fully dimmable solution that supports leading-edge (TRIAC), trailing-edge, DALI, and 0-10V dimming configurations depending on customer requirements. With its robust construction, optical efficiency, and superior weather resistance, the dimming LED garden light is ideal for projects requiring durable and customizable illumination.

2. Key Features

2.1 Advanced Dimming Technology

This garden light incorporates multiple dimming standards—including 0-10V, DALI, and TRIAC—so installers can specify the best configuration for the control system already in place. Unlike conventional fixed-intensity outdoor lights, this luminaire enables seamless adjustment from 100% output down to ultra-low levels for mood lighting.

2.2 High Output LED Module

Using a premium COB or SMD light engine (dependent on customer preference), the fixture delivers high luminous efficacy with excellent thermal stability. The light module provides consistent color uniformity, long service life, and minimal lumen depreciation.

2.3 Weatherproof Outdoor Design

Rated IP65 or IP67 (customer selectable), the luminaire is constructed to withstand rain, dust, moisture, and extreme environmental conditions. This makes it highly suitable for outdoor installation in demanding climates.

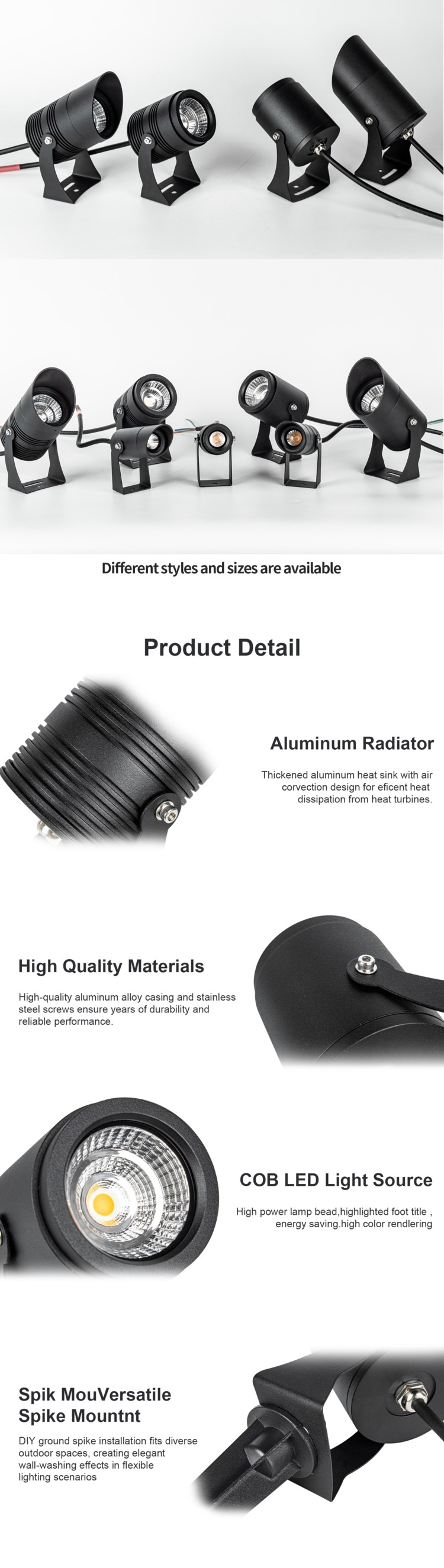

2.4 Die-Cast Aluminum Housing

The durable, corrosion-resistant housing ensures long-term structural integrity. The exterior is available in multiple powder-coated finishes such as black, dark grey, and garden green.

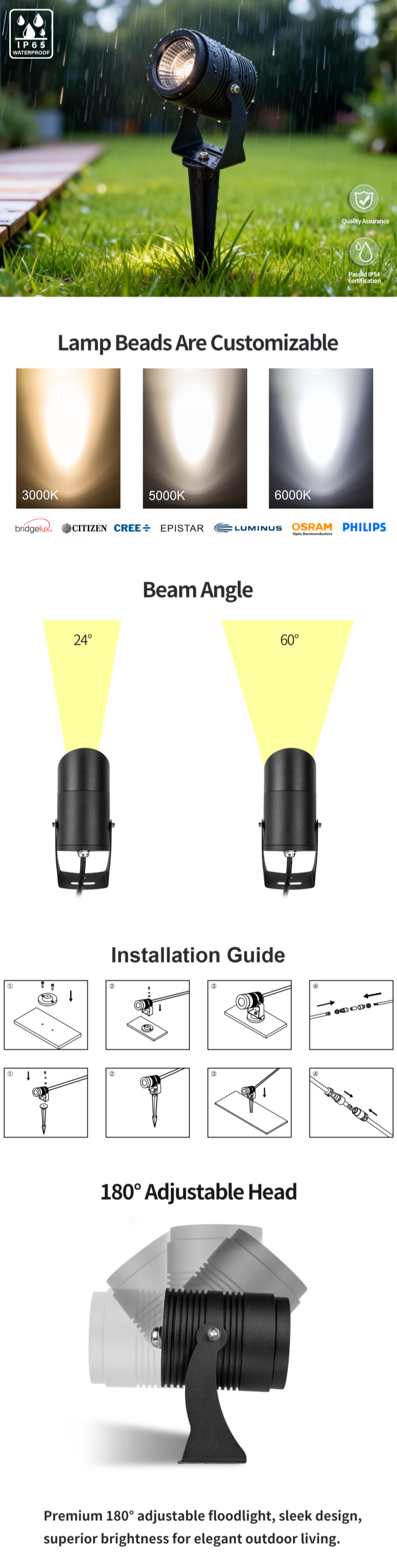

2.5 Adjustable Beam Options

Although this model emphasizes dimming, customers may choose between preset beam angles (15°, 24°, 36°, 60°) to suit general illumination or accent lighting applications.

3. Applications

The dimming LED garden light is suitable for:

• Residential gardens and villa courtyards

• Hotel garden paths and outdoor lounges

• Landscape architecture projects

• Golf courses and resorts

• Parks, green belts, and municipal outdoor environments

• Trees, shrubs, sculptures, signage, and feature wall highlighting

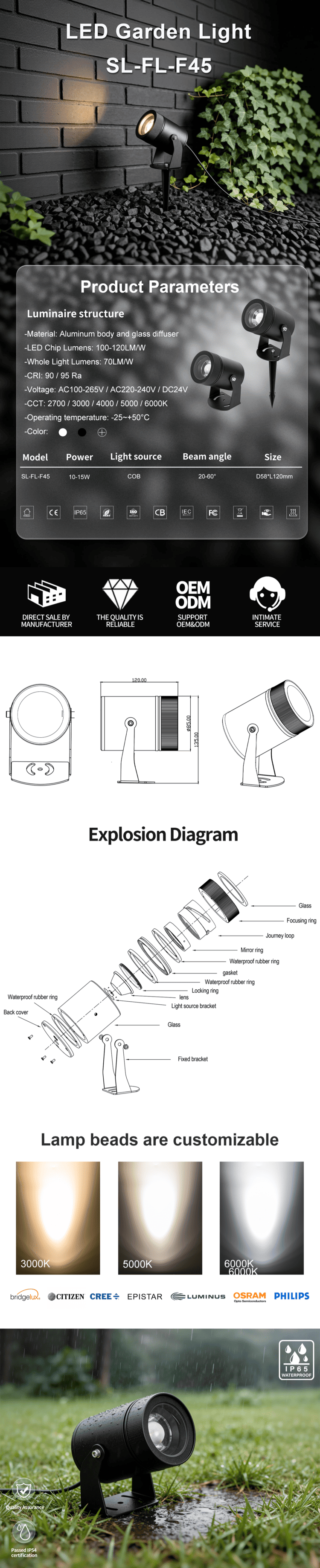

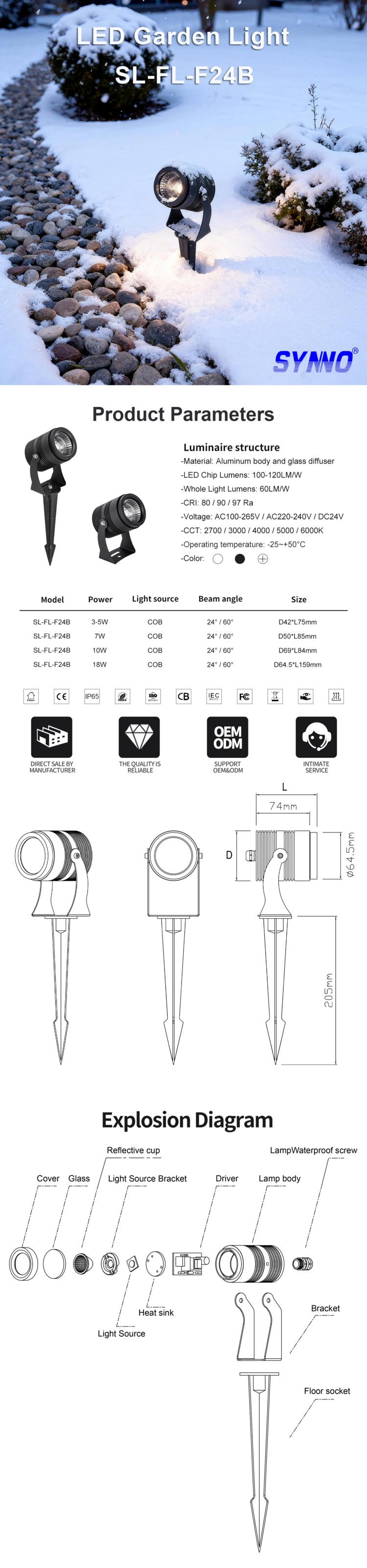

4. Technical Specifications (Table)

Table 1: Electrical & Optical Performance

Table 2: Mechanical & Construction Data

5. Structural Design Advantages

5.1 Thermal Engineering

The luminaire features an integrated thermal management system. The aluminum heat sink efficiently dissipates heat from the LED module, maintaining junction temperatures within optimal ranges to prevent color shift and maximize lifetime.

5.2 Corrosion Protection

The powder-coating procedure includes sandblasting, anti-corrosion treatment, and UV-resistant finishing to prevent fading, rusting, and deterioration in outdoor environments.

5.3 Sealed Waterproof System

The LED module, lens, and housing are sealed with high-grade silicone gaskets to achieve stable IP performance.

6. Optical System

This dimmable garden lamp includes:

• High-transmittance tempered glass (≥92% transmission)

• Precision-engineered reflectors or TIR lenses

• Optional narrow, medium, and wide beam options

• Smooth, consistent light output without dark spots

The optical system ensures precise illumination for trees, shrubs, garden pathways, sculptures, and architectural features.

7. Dimming System Details

7.1 TRIAC Dimming

Compatible with most domestic dimmer switches, suitable for villas and residential projects.

7.2 DALI Dimming

Provides digital addressable control ideal for large public landscapes or commercial lighting systems.

7.3 0-10V Dimming

Supports linear dimming curves commonly used in professional lighting projects.

7.4 Smooth Dimming Curve

The fixture achieves flicker-free dimming, ensuring visual comfort and stability for both the naked eye and camera systems.

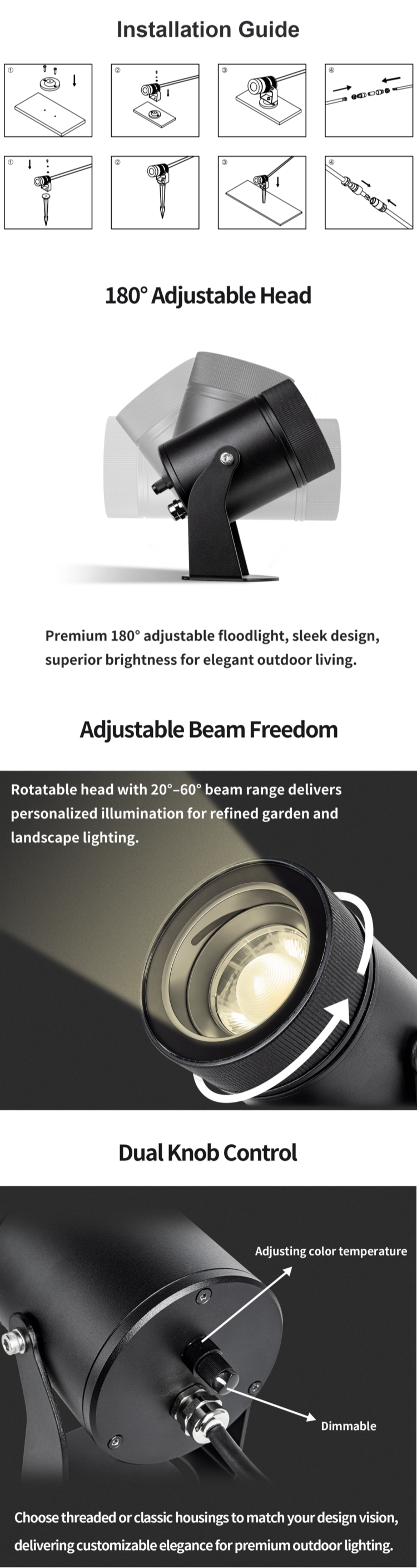

8. Installation Options

This light can be installed with:

• A ground spike for garden soil and lawn placement

• A surface base for concrete or hard ground

• An adjustable tilt bracket for angled illumination

Installation is designed to be simple while retaining maximum flexibility for lighting designers.

9. Customization Options

To meet project-specific needs, the following can be customized:

• Wattage configuration

• CCT and CRI

• Dimming protocol

• Beam angle

• Housing color

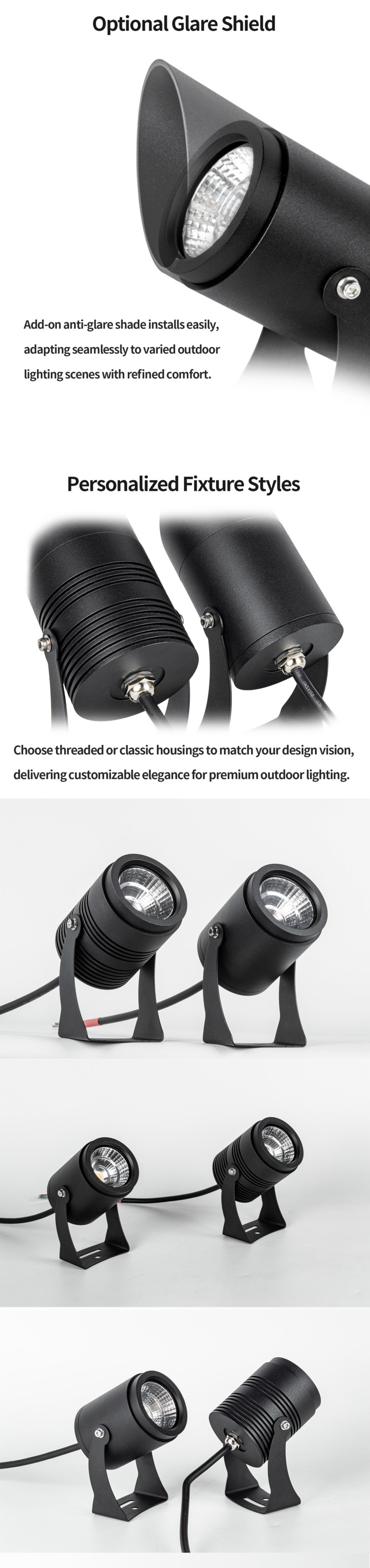

• Lens type (honeycomb, anti-glare louver, frosted lens)

• Spike length and mounting accessories

10. Performance Benefits

Energy Efficiency

Up to 80% lower power consumption compared to halogen garden lights.

Longevity

50,000-hour rated lifespan ensures years of maintenance-free operation.

Environmental Sustainability

RoHS-compliant materials and reduced carbon footprint.

High Visual Comfort

Dim-to-ambient functionality enhances atmosphere and comfort.

11. Quality Assurance & Testing

Each luminaire undergoes strict testing, including:

• 48-hour aging test

• IP water immersion test

• High and low temperature test

• Vibration and impact test

• LED lumen output test

• EMC compliance evaluation

12. Packaging & Delivery

• Individually boxed with protective foam

• Optional OEM branding

• Bulk export packaging designed for container shipping

• Custom labels and barcodes available

13. Conclusion

The Outdoor Dimming LED Garden Light is a premium, reliable, and elegant landscape lighting solution designed for modern gardens and exterior environments. Its advanced dimming capability, durable construction, efficient optics, and flexible installation make it a preferred choice for landscape designers, electricians, distributors, and project contractors.
