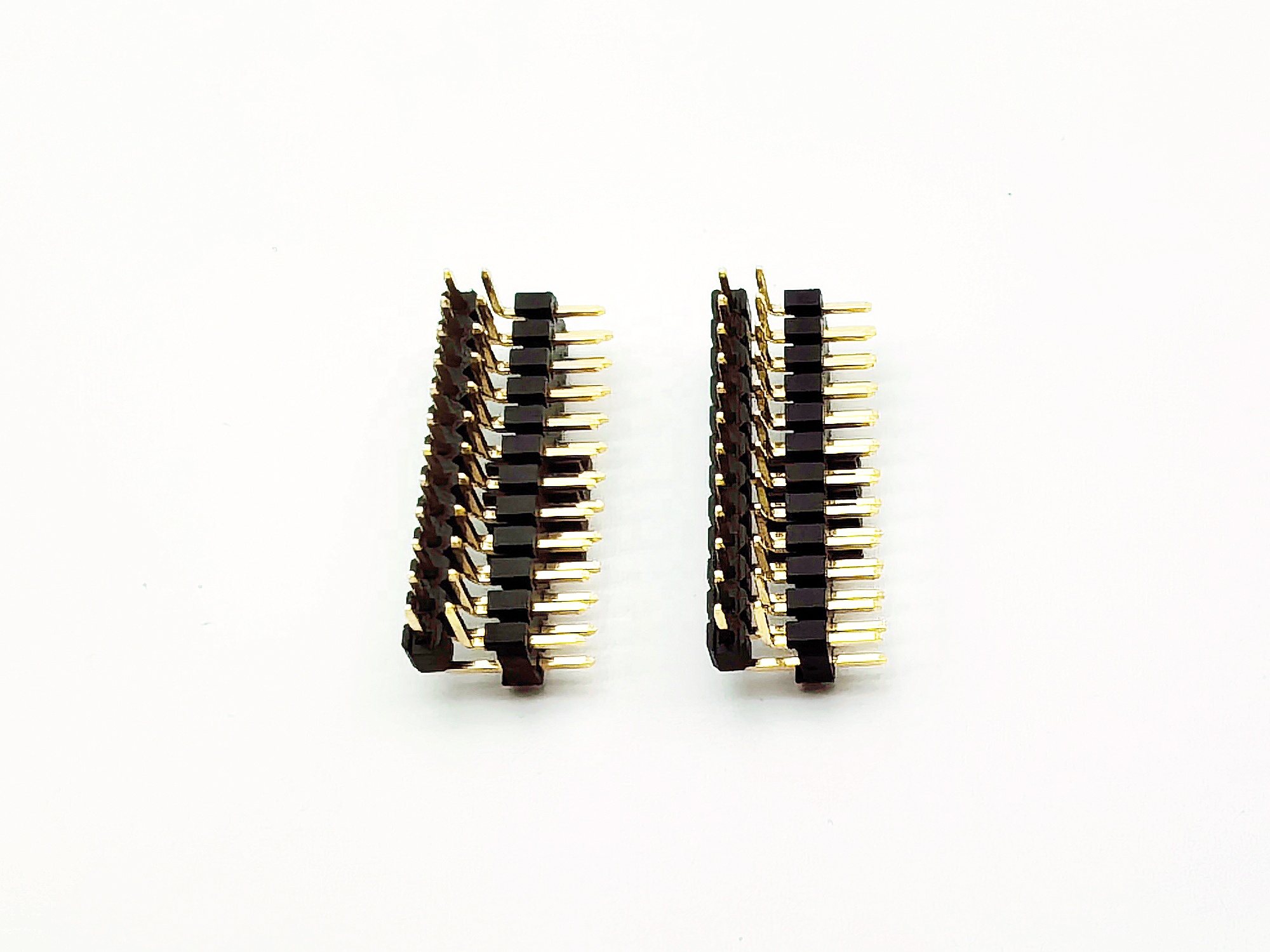

2.54mm Pitch Pin Header Connector H4.0mm 26P

YZTECH presents its precision 2.54mm pitch dual-row male pin header(13P per row,26P total),featuring a distinctive circular profile compliant with DIN standards.Optimized for secure bending insertion into PCBs,this header connector delivers robust performance with a 3A current rating,600V voltage rating,and 0.4VA power capacity.Its IP54-rated housing provides superior protection against dust ingress and water splashes,enhancing reliability in challenging industrial and automotive environments.The circular design facilitates stable mating and resists rotation,ensuring consistent alignment in high-vibration applications like control systems and power modules.
Constructed for exceptional durability and electrical integrity,the electronic connector utilizes brass or phosphor bronze contacts with a unique half-gold tin gold plating.This specialized coating balances cost-efficiency with superior conductivity and oxidation resistance.The PA6T thermoplastic housing offers high-temperature resilience(withstanding 260°C reflow for 10s),excellent insulation resistance(>100MΩ),and flame retardancy.Key mechanical specs include a precise mating effect force(100-350G)for tactile engagement assurance,and a manageable weight of 260g.Tube packaging ensures pin protection and automated assembly readiness.
This 2.54mm pin header excels across an extreme operational temperature range(-40°C to+105°C).Its ruggedized circular form factor and IP54 defense make it ideal for outdoor equipment,automotive ECUs,and factory automation where environmental resilience is paramount.The angled installation method saves space and enables flexible PCB layout configurations.Delivering consistent signal integrity and mechanical endurance,YZTECH’s solution is backed by stringent quality control,ensuring longevity in mission-critical power distribution,telecommunications infrastructure,and embedded computing systems worldwide.
