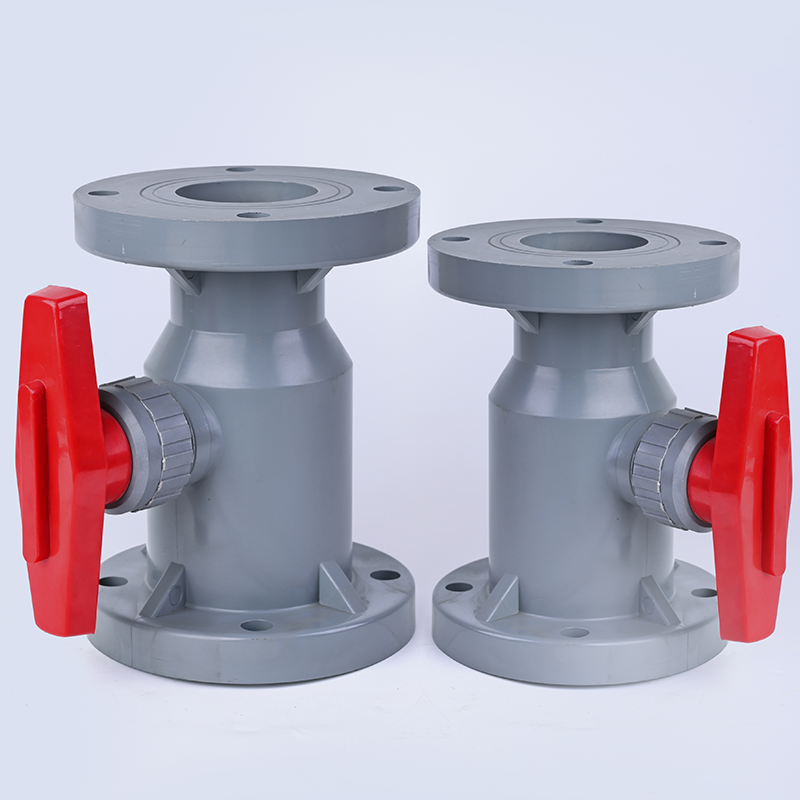

cpvc flange ball valve

CPVC Plastic Flanged Ball Valve is made by CPVC body, EPDM seal and PTFE seat, it is a general model Plastic Ball Valve,Flanged Ball Valve is manual operated by hand lever, size from DN15 to DN150, flange connection as per standard DIN PN10. pressure rate PN10. Ball valve is a ball core with a round through hole as opening and closing parts, ball core with the valve stem around the center line of the valve body to achieve the purpose of opening and closing the valve.CPVC Flanged Ball Valve is suitable for water treatment, mining plant, chemical industrial,etc

HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves.

Basic specification
Size: DN15~DN150 (1/2 inch ~ 6 inch)
Flange connection: DIN PN10
Body Material: PVC-C, CPVC
Seal material: EPDM
Seat Material: PTFE
Design pressure: 1.0Mpa (PN10 bar)

Feature of valve
All the parts that will touch medium is made from thermo plastic.

One piece injection body reduce the leaking risk.

Strong body design extend the service life.

PTFE stem packing lower the operate torque and leaking risk.

Flange end fit for different standards connection

Pneumatic and elecric actuator mounting available.
