DC Contactor ALBRIGHT HV500AF-23 Single-pole Normally Open Full-sealed for Electric Energy 12V-1000V DC 250A Continuous1

7 month ago

119 0 

4 year

Product details

Product Name	HV500AF-172
Rated Contact Voltage	12V - 1000V D.C.
Continuous Operating Current	250A (50mm2 or 1-1/0 AWG cables)
Continuous Operating Current (Max)	500A (190mm2 or 350 MCM busbars)
Coil Voltage Range	12V D.C. - 96V D.C.
Contact Arrangement:
Main	SPST-NO
Auxiliary	SPST-NO
Mechanical Durability	>1000000 Cycles
Auxiliar	>1000000 Cycles
Voltage Drop	Typically <30mV at 100A
Insulation Resistance	>200M
Dielectric Withstand Test (at Sea Level)	4000V D.C./Leakage <1mA
Maximum Altitude	3000m
Environmental Seal	Contacts, Auxiliary and PWM Circuit Hermetically Sealed - Exceeds IP67

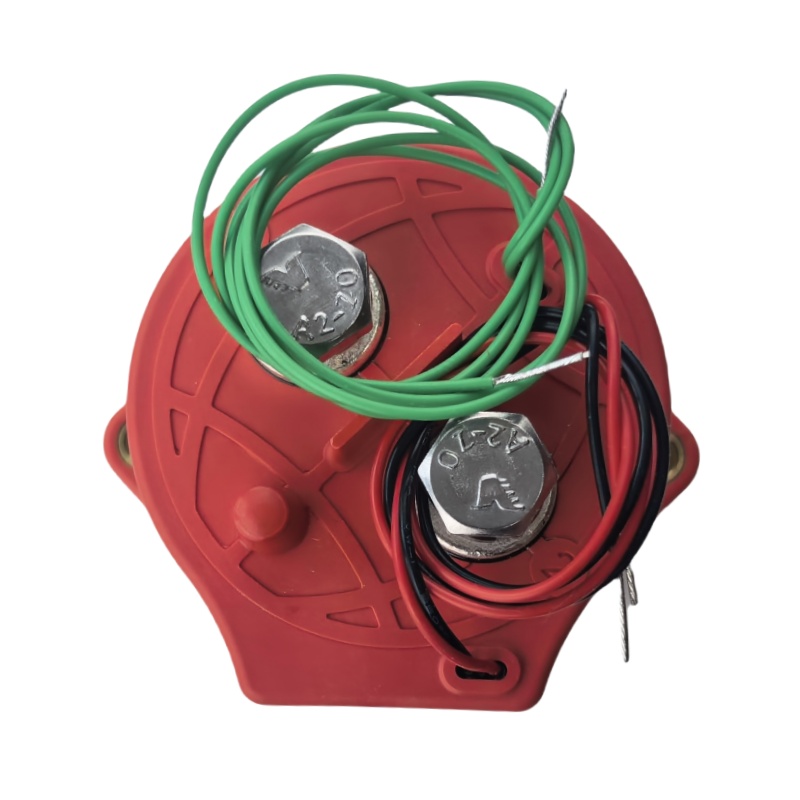

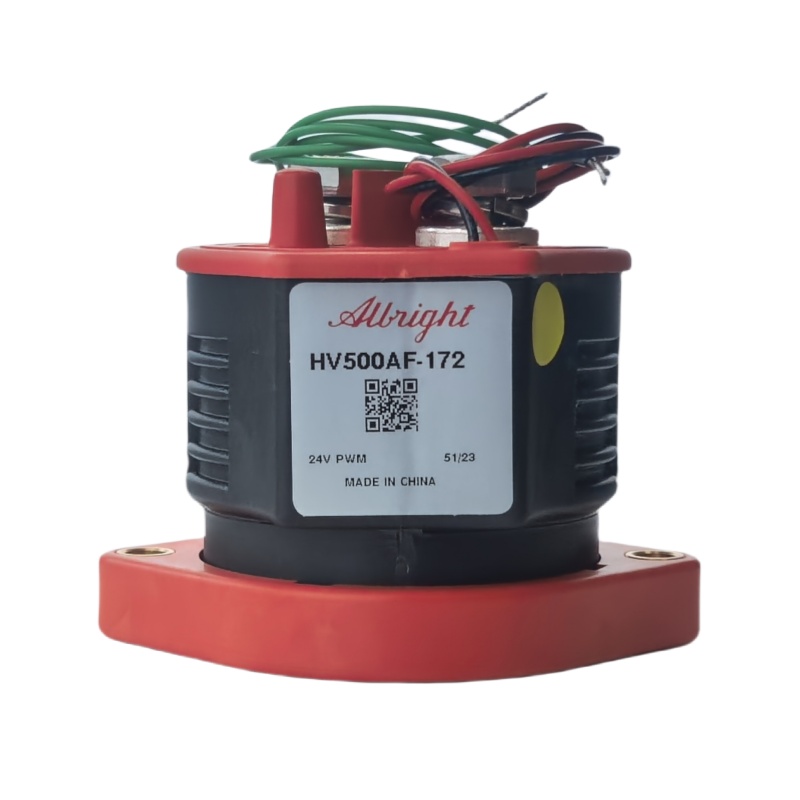

Product Picture
