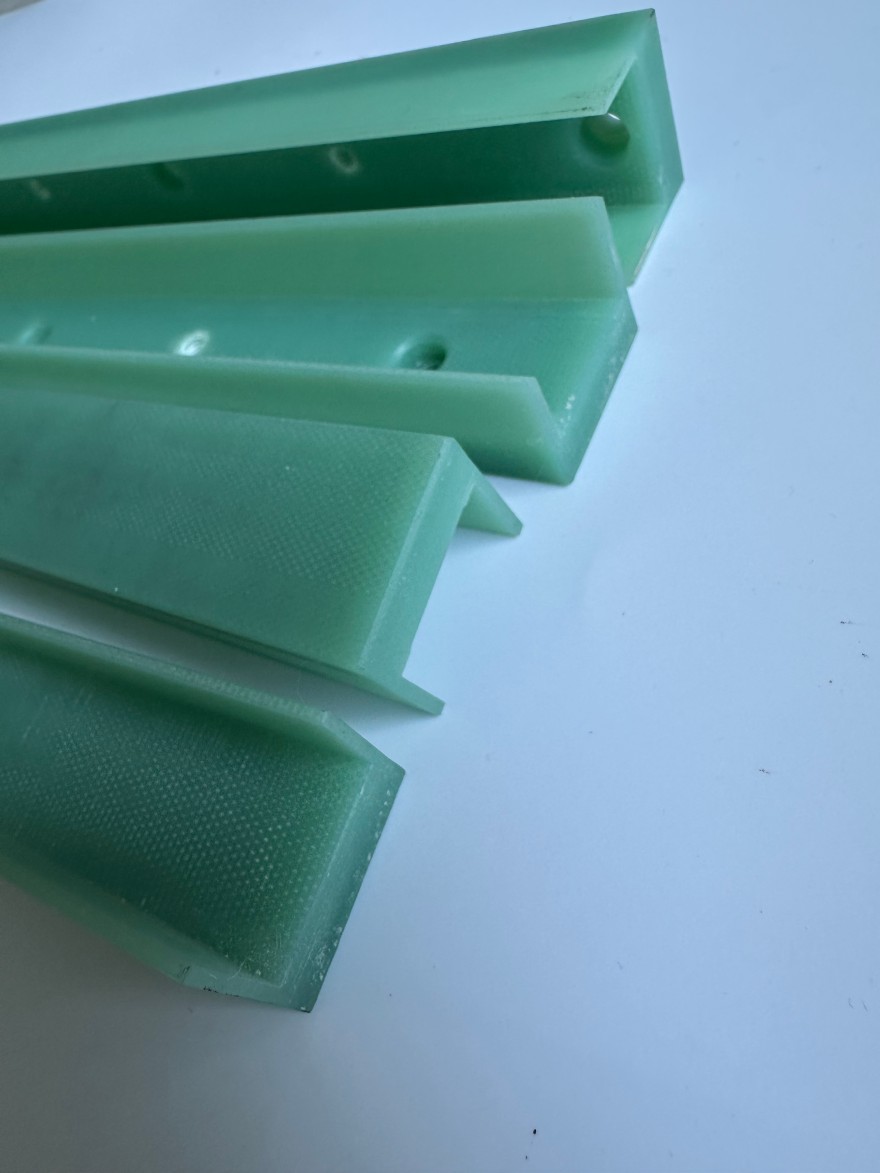

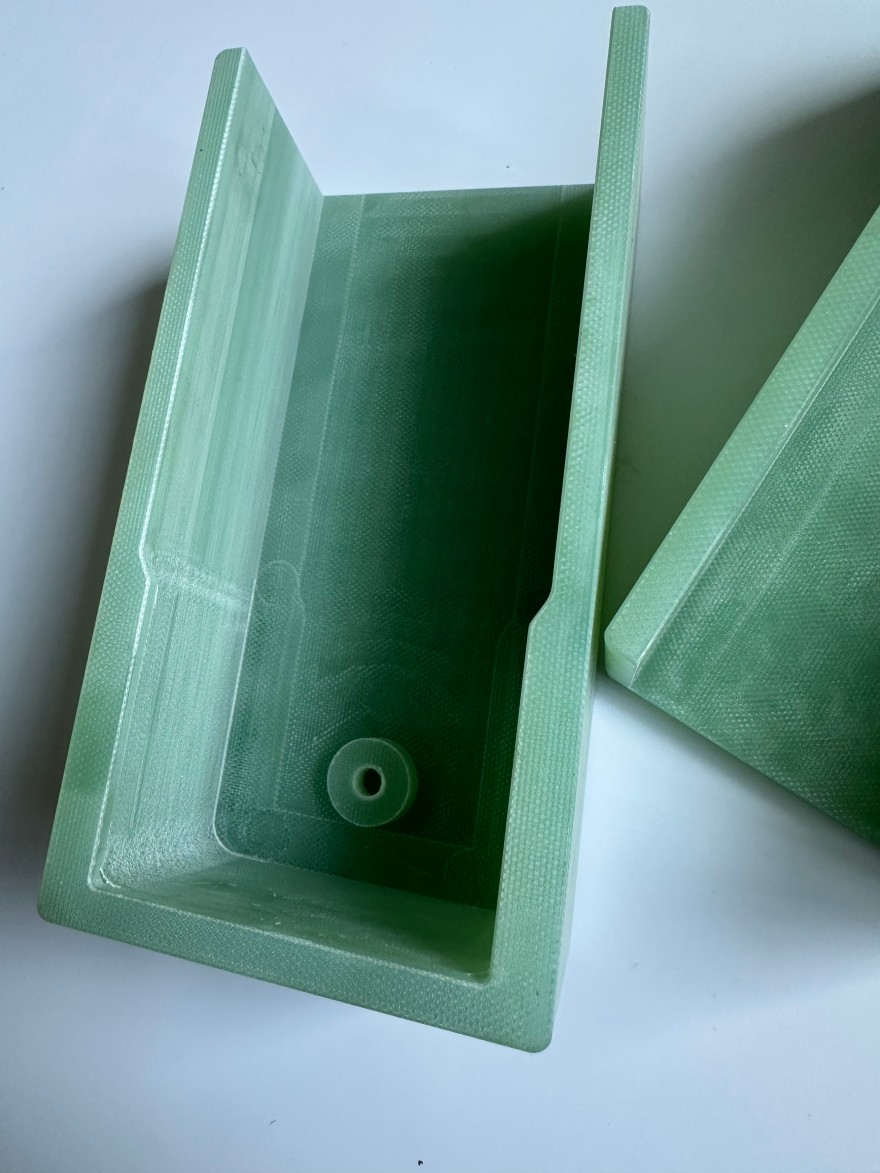

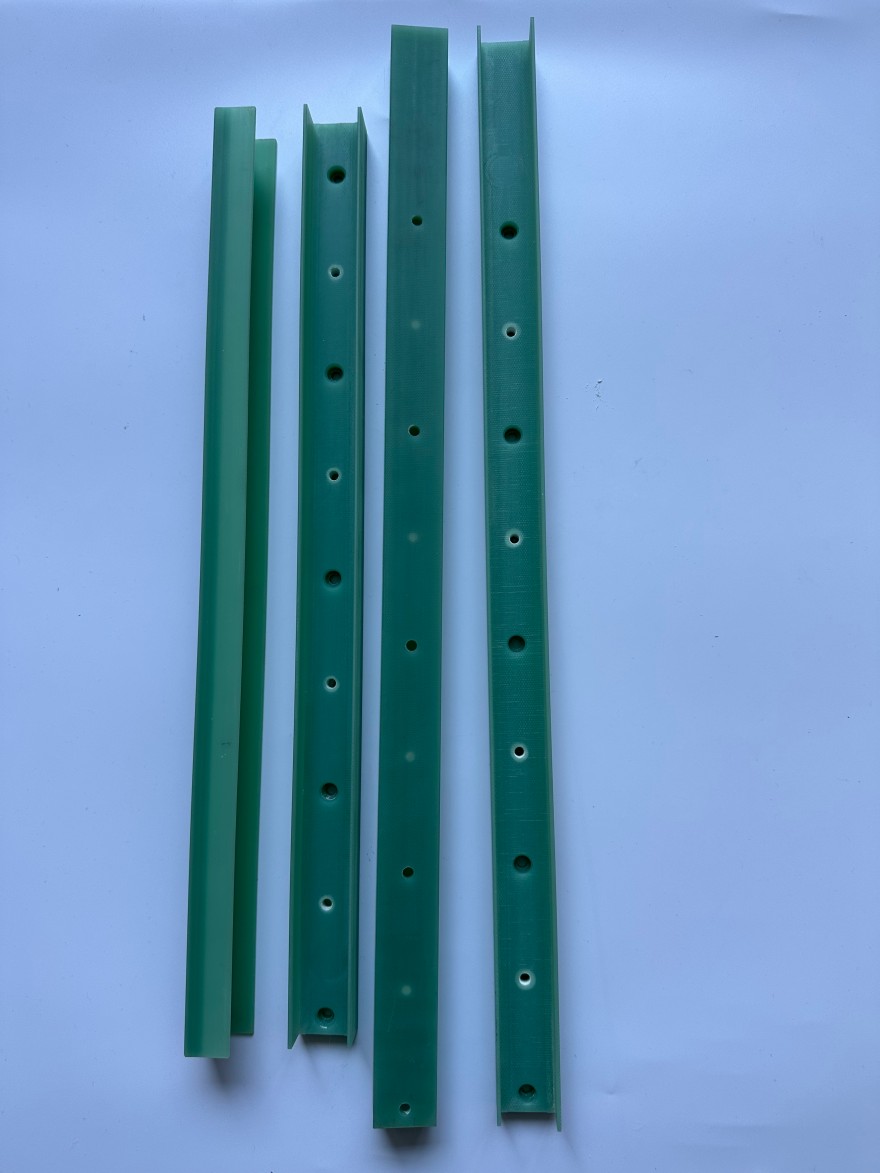

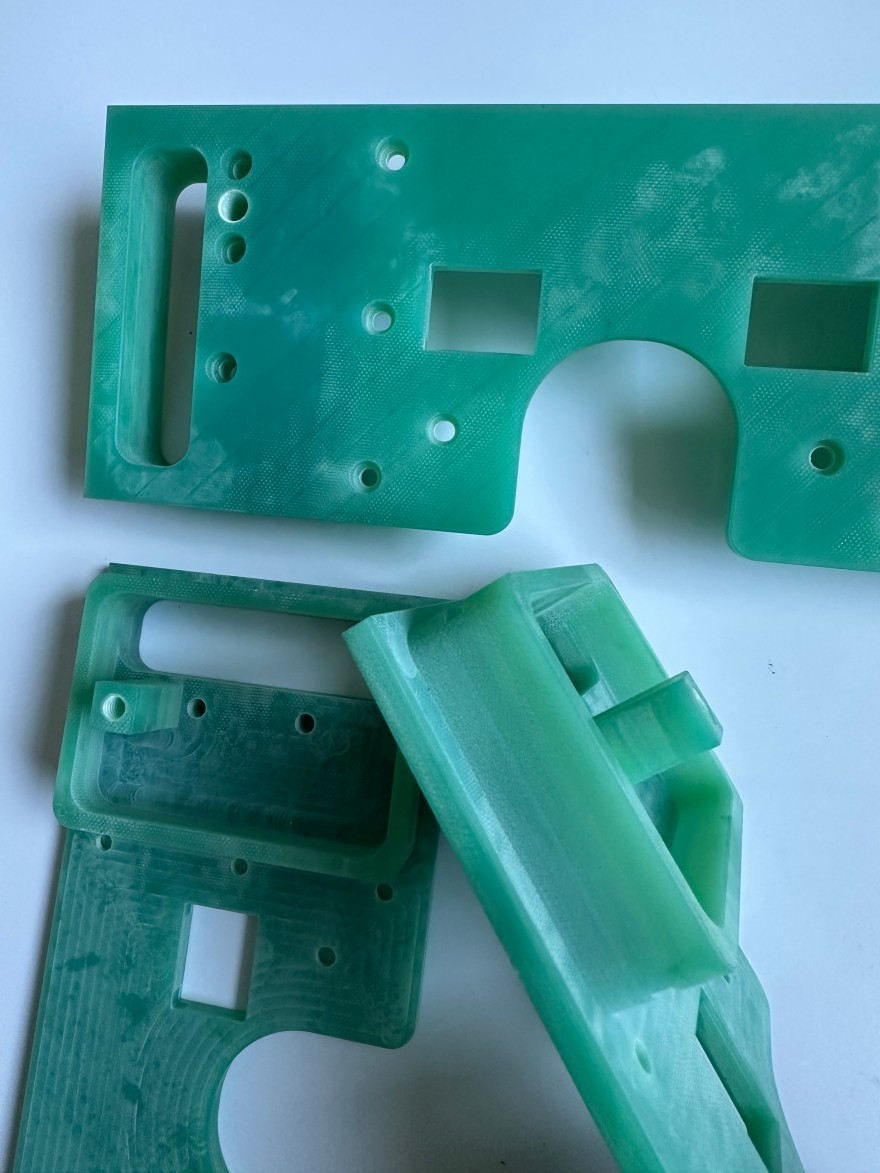

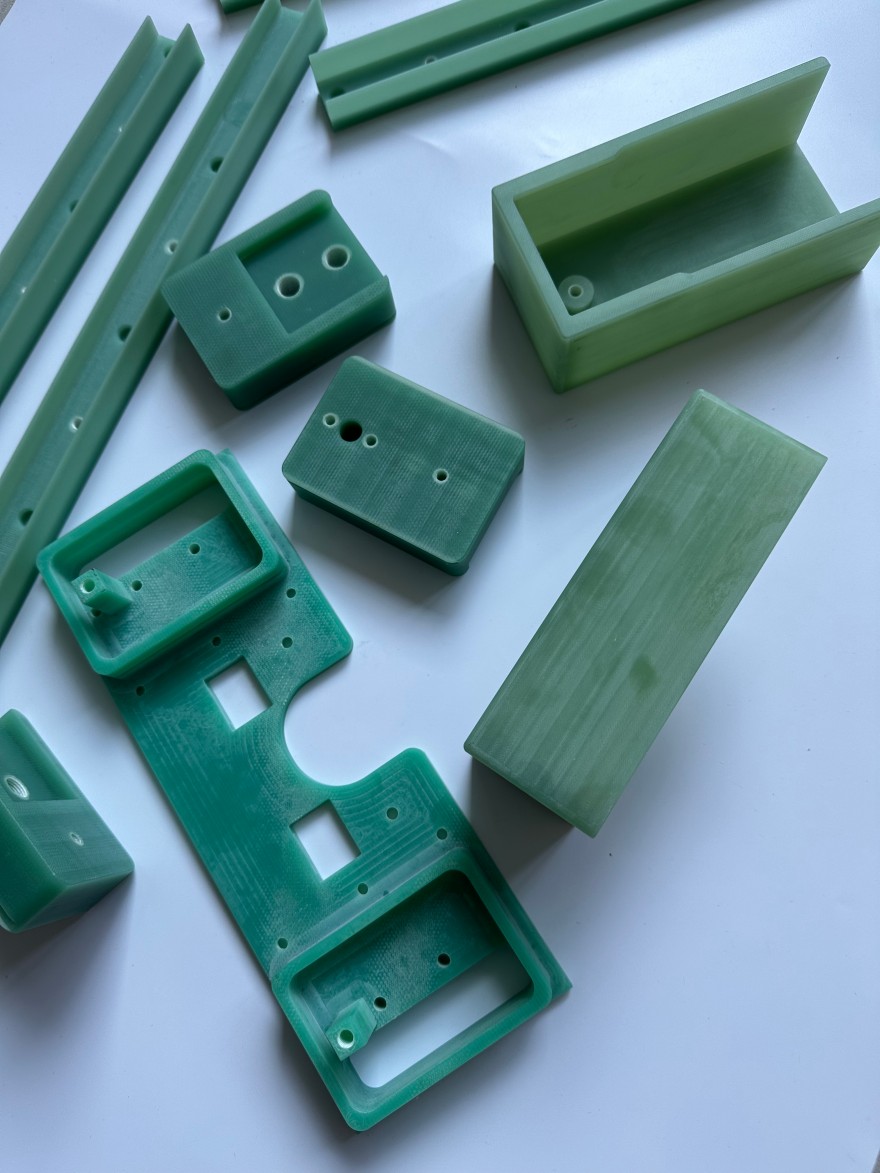

FR4 glass fiber CNC processing parts

2 week ago

1 0 

6 year

Product details

FR4 insulating boards serve as the cornerstone of industrial equipment safety, owing to their exceptional insulation properties, mechanical strength and temperature resistance. Customised production precisely matches dimensions, voltage ratings and other parameters to meet diverse requirements ranging from circuit boards to new energy equipment. Selecting manufacturers with technical expertise, rigorous quality control and efficient service is paramount to safeguarding equipment performance and safety.

Within industrial sectors such as electronics, electrical engineering, new energy, and rail transport, insulating materials serve as pivotal components ensuring the safe operation of equipment. Among these, FR4 insulating boards have become essential materials for circuit boards, transformers, motors, and similar devices due to their outstanding insulation properties, mechanical strength, and temperature resistance. However, varying application scenarios demand distinct parameters for insulating boards—including dimensions, thickness, and voltage ratings—whereby the role of bespoke FR4 insulating board manufacturers becomes paramount. This article will guide you through the core knowledge of this field from three dimensions: material properties, customisation processes, and key selection criteria.

I. Material Properties of FR4 Insulation Boards: Why They Have Become an Industrial "Essential"

The substrate of FR4 insulating boards comprises glass fibre reinforced epoxy resin. The designation "FR" denotes "Flame Retardant", while the "4" signifies the material's fire resistance rating. This composite material achieves a plate structure combining strength and toughness through the interwoven glass fibre structure and the curing reaction of the epoxy resin. Specifically, its core advantages manifest in three key aspects:

1. Stable insulation properties: FR4 exhibits a volume resistivity exceeding 10¹⁵ Ω·cm, capable of withstanding thousands of volts for extended periods in dry conditions. Even in high-humidity environments, its insulation decay rate remains significantly lower than conventional plastics, effectively preventing circuit short-circuits or leakage risks.

2. High mechanical strength: The incorporation of glass fibres elevates the board's flexural strength to over 340 MPa, enabling it to withstand machining processes (such as drilling and cutting) without cracking. This makes it suitable as a substrate for structural support components or precision elements.

3. Wide Temperature Tolerance: Standard FR4 boards maintain performance between -55°C and 155°C during prolonged use. Modified variants can withstand temperatures exceeding 200°C, meeting demanding requirements in applications such as new energy batteries and high-temperature motors.

II. Customisation Process for FR4 Insulation Boards: Key Steps from Requirement to Finished Product

Unlike standardised products, bespoke manufacturing requires adjustments to material formulations, process parameters, and even production equipment according to specific client requirements. A typical customisation process comprises the following four stages:

1. Requirements Communication and Drawing Confirmation: Clients must provide parameters including panel dimensions (length, width, thickness), tolerance requirements, voltage rating, and operating environment (e.g., humidity, temperature). For complex structures, 3D drawings or samples may also be required. For instance, insulation panels for high-voltage transformers necessitate increased creepage distance design, while panels within new energy battery packs require balancing lightweight construction with flame retardancy.

2. Material Selection and Formulation Adjustment: Base FR4 materials or modified variants (e.g., high-Tg, halogen-free, ceramic-filled) are chosen according to requirements. For instance, high-frequency communication equipment necessitates modified FR4 with low dielectric constant to minimise signal loss, while rail transit equipment requires materials with high CTI (Comparative Tracking Index) to enhance resistance to electrical tracking.

3. Precision Machining and Quality Inspection: Customised laminates undergo CNC cutting, drilling, and milling processes with machining tolerances as tight as ±0.05mm. Finished products must pass multiple standards including withstand voltage testing (e.g., 5000V AC withstand voltage), flame retardancy testing (UL94 V-0 rating), and dimensional tolerance checks to ensure compliance with industry specifications.

4. Packaging and Logistics: Customised sheets are typically packaged in moisture-proof solutions (e.g., vacuum-sealed aluminium foil bags with desiccants) and transported via dedicated logistics channels to prevent impact damage or moisture exposure during transit.

III.FR4 epoxy fibreglass rod, as a meticulously composite rod formed from epoxy resin and fibreglass, holds a significant position across multiple industrial sectors due to its exceptional properties. The following provides a detailed exposition of its processing techniques and advantages:

Processing Techniques

1. Raw Material Preparation

The manufacture of FR4 epoxy fibreglass rod commences with rigorous raw material selection. Epoxy resin, serving as the bonding matrix, must exhibit excellent adhesion, chemical resistance, and electrical insulation. Glass fibre, with its high strength and modulus, is crucial as the reinforcing material. The quality of both directly determines the final product's performance.

‌2. Fibre Impregnation‌

Passing selected glass fibres through a resin bath to ensure thorough impregnation with epoxy resin is vital for achieving uniform rod properties. The application of continuous impregnation ensures uniform resin coverage along the entire length of the glass fibres, laying a solid foundation for subsequent moulding processes.

‌3. Moulding Processes‌

‌Pultrusion‌: Resin-impregnated glass fibres are drawn through a heated mould where the resin cures, forming continuous rods. This method offers high production efficiency, suitability for mass production, and delivers rods with high dimensional accuracy and customisable lengths.

‌Compression Moulding‌: For rods with complex geometries and stringent dimensional accuracy requirements, compression moulding is the preferred choice. Prepreg is placed within a mould and cured under specific temperature and pressure conditions. Through precise mould control, FR4 epoxy glass fibre rods of various specifications and shapes can be produced.

‌4. Post-Processing‌

Post-moulding rods undergo cutting, grinding, and other finishing processes to meet diverse application requirements. Cutting equipment, such as sawing machines, enables precise length trimming; grinding enhances surface finish for improved aesthetics.

IV.Advantages

‌1. Exceptional Mechanical Properties‌

FR4 epoxy fibreglass rods exhibit high strength, high modulus, and excellent toughness, withstanding significant external forces without deformation. This makes them ideal structural support components, ensuring product reliability and durability.

‌2. Superior Electrical Properties‌

These rods possess outstanding electrical insulation, effectively preventing current leakage and short circuits to safeguard the normal operation of electronic equipment. Concurrently, their low dielectric constant and dielectric loss factor reduce signal attenuation during transmission, thereby enhancing signal quality.

‌3. Strong Chemical Stability‌

FR4 epoxy fibreglass rods demonstrate good resistance to most chemical substances, exhibiting low susceptibility to corrosion by acids, alkalis, and similar agents, thereby extending product lifespan. Within industries such as chemical processing and food production, they serve as vital corrosion-resistant components.

‌4. Lightweight and Excellent Machinability‌

Compared to metallic materials, FR4 epoxy fibreglass rods possess low density and light weight, contributing to reduced equipment mass. Their favourable machinability allows fabrication into diverse shapes and dimensions via various processing methods, meeting varied requirements.

Fields of Application

FR4 epoxy fibreglass rods find extensive application across electronics, machinery, aerospace, and other sectors. Within electronics, they serve as circuit board support pillars and insulating spacers; in machinery, they function as structural supports; while in aerospace, they are utilised for manufacturing lightweight, high-strength components. With technological advancements, their application prospects continue to broaden significantly.

When faced with numerous customisation service providers in the market, clients should conduct a comprehensive assessment from the following perspectives:

1. Technical Capability and Equipment Standards: Prioritise manufacturers possessing independent R&D teams and advanced production equipment (such as high-precision CNC machining centres and fully automated laminating presses). These entities can swiftly respond to complex requirements and deliver technical solutions. For instance, certain manufacturers can achieve stable production of ultra-thin sheets down to 0.1mm, or utilise laser cutting technology for micro-hole processing.

2. Quality control systems: Verify whether the manufacturer holds ISO9001 quality management system certification and possesses comprehensive testing equipment (e.g., withstand voltage testers, impedance analysers) alongside established inspection protocols. Reputable manufacturers routinely conduct destructive sampling tests on each production batch to ensure performance compliance.

3. Service Responsiveness: Customised production necessitates frequent technical consultations, making the manufacturer's service attitude and response speed paramount. Test their delivery lead times (typically 3-7 days), issue resolution efficiency, and after-sales support through small-batch trial orders.
