Product details

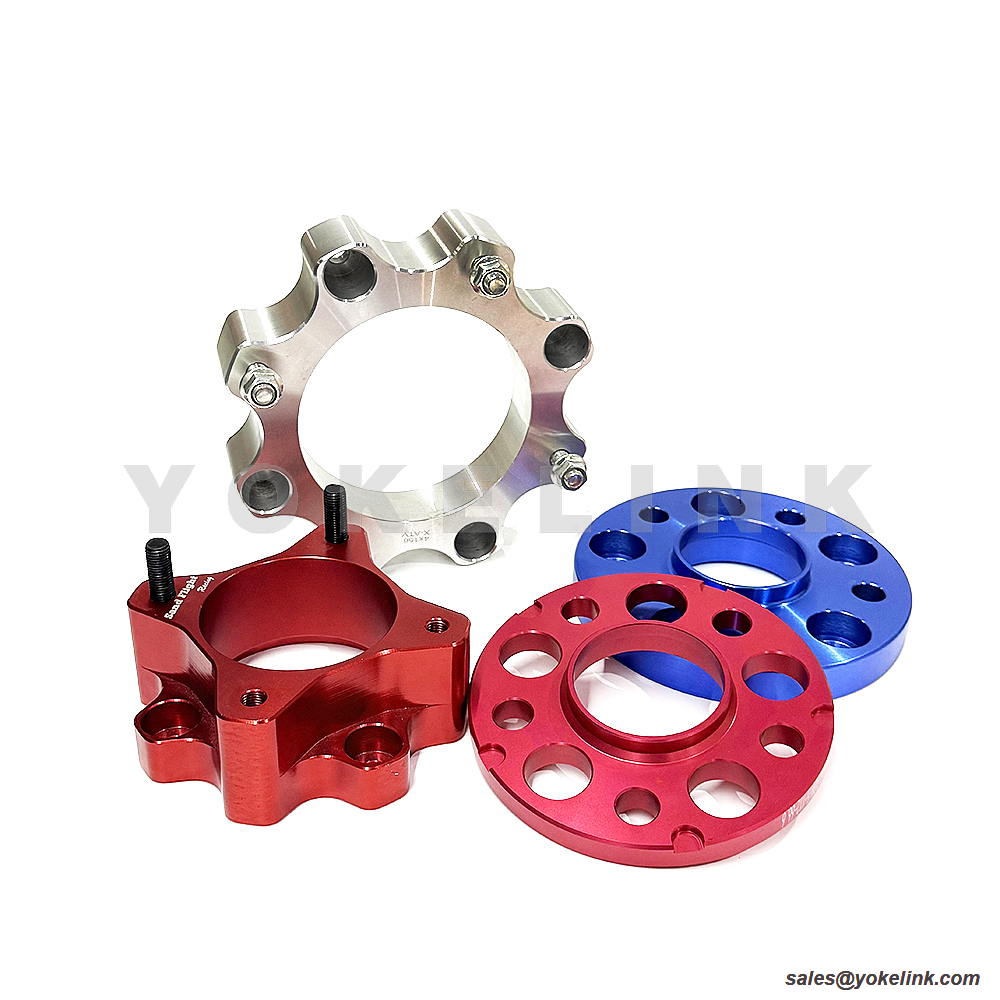

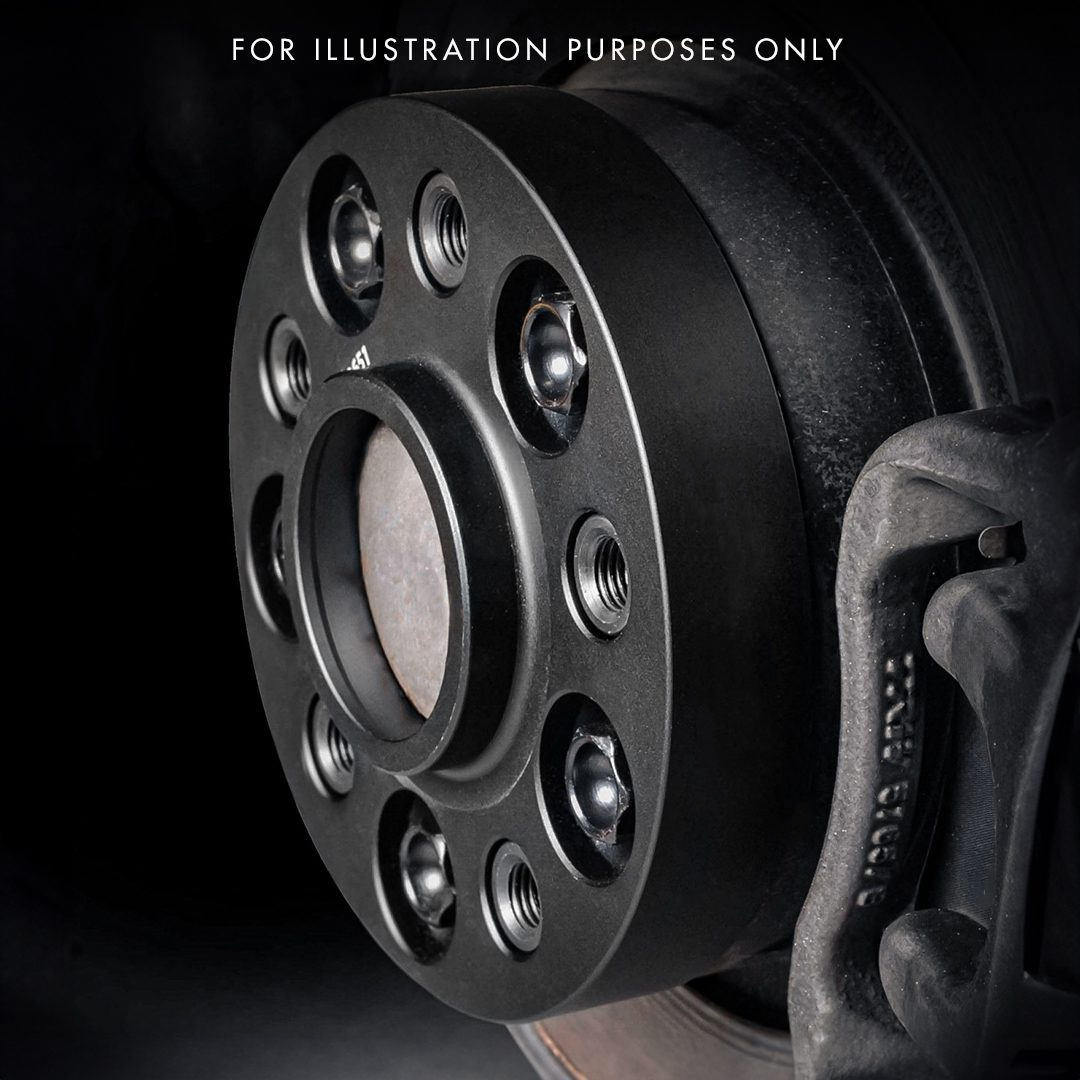

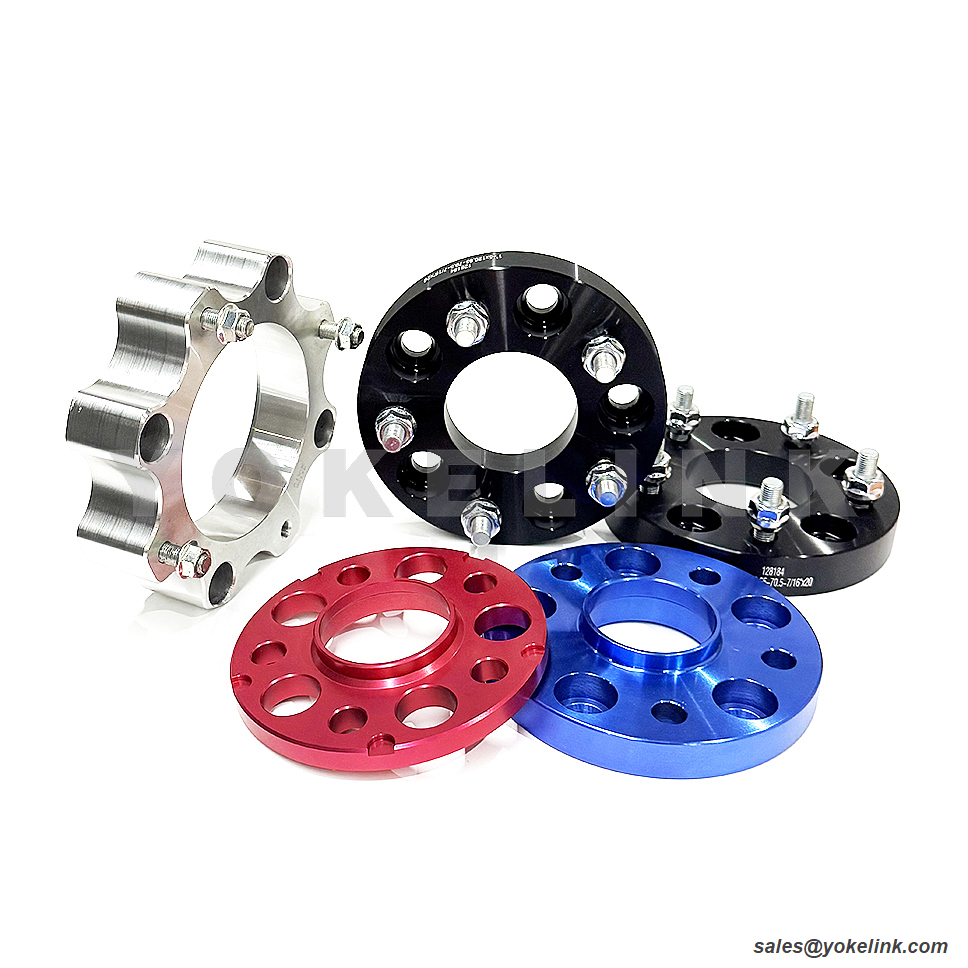

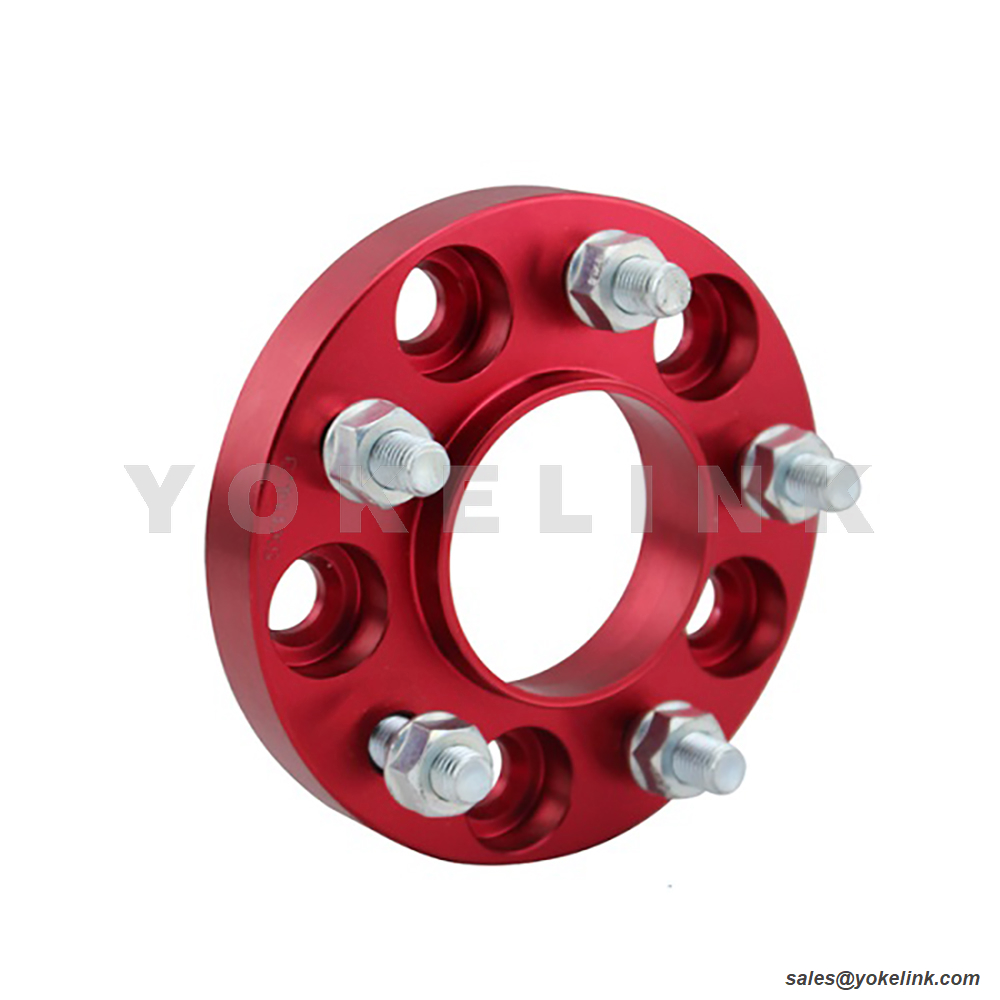

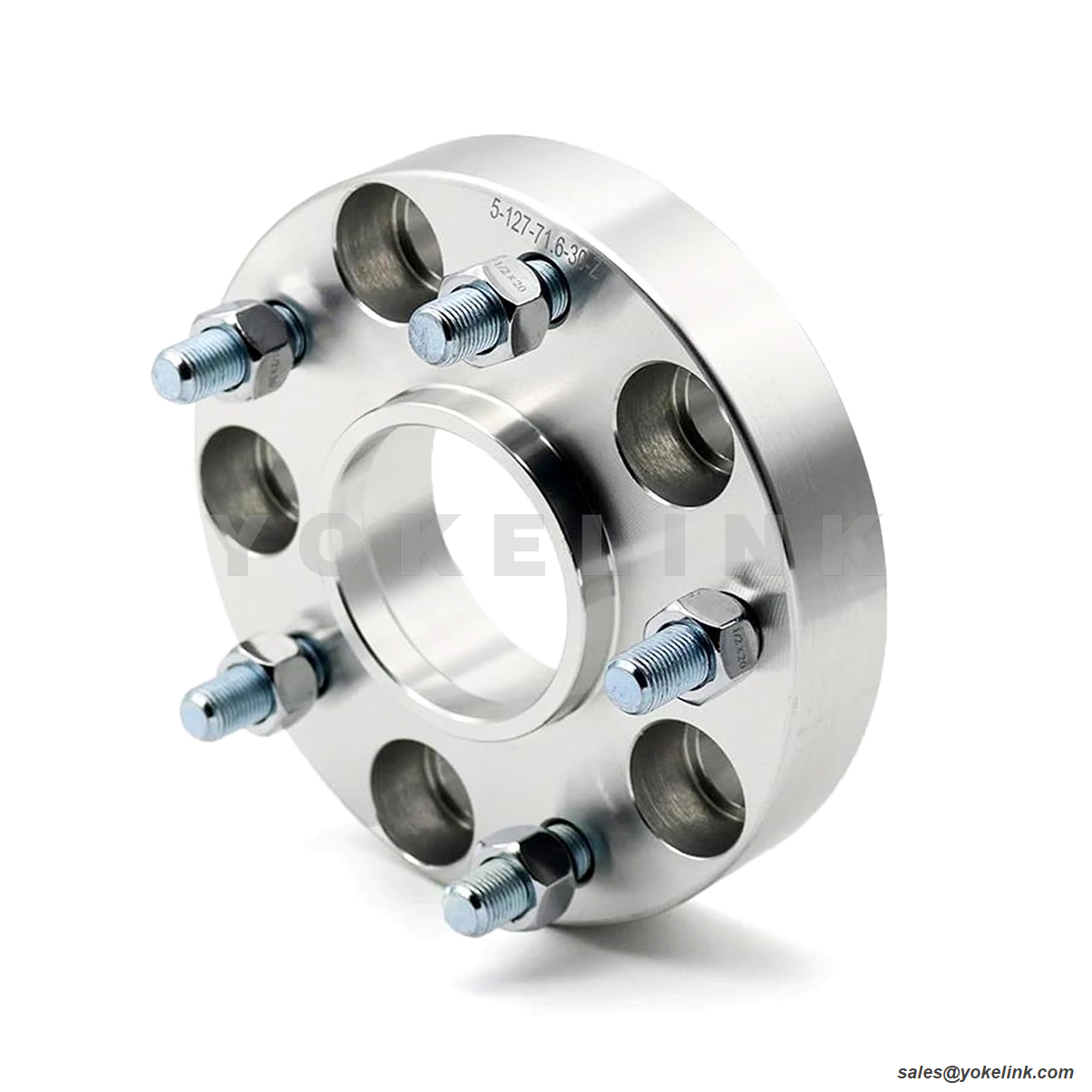

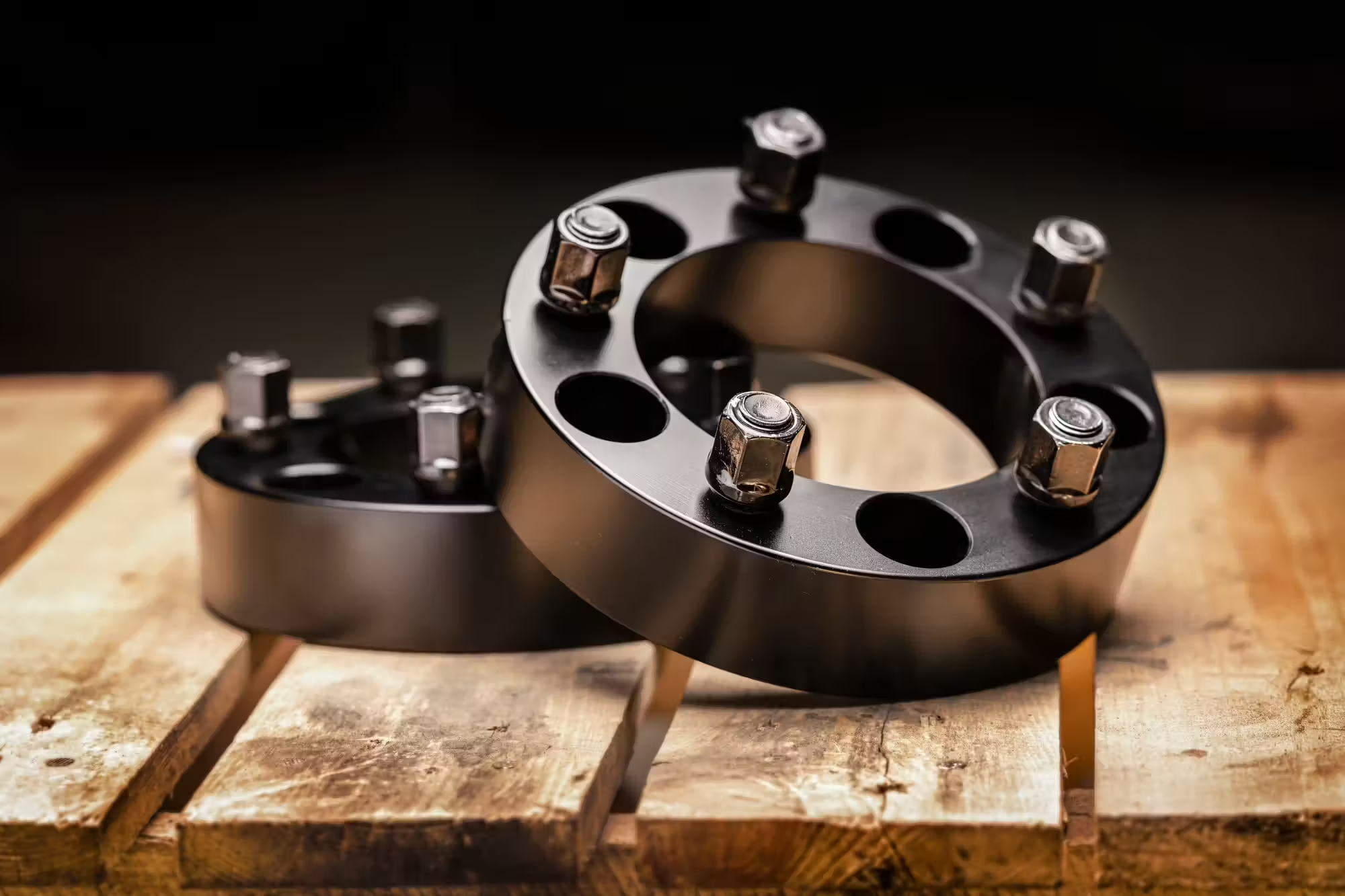

Wheel spacers are disc-shaped metal fittings installed between the wheel hub and the axle of a car. They are mostly made of forged aluminum alloy and are mainly divided into two types: hub-centric and lug-centric. Their main function is to widen the track width, improve vehicle handling stability and sporty appearance, and provide installation space for modified wheels or larger tires.

Core Functions	Widened wheelbase for optimized appearance and handling
Main Material	Primarily forged aluminum alloy, high strength
Type	Center hole/bolt positioning for easy installation
Key Specifications	Multiple thicknesses available to match vehicle specifications
Core Advantages	Lightweight, corrosion-resistant, excellent fit
Safety Features	Precision machining; requires proper installation and re-inspection

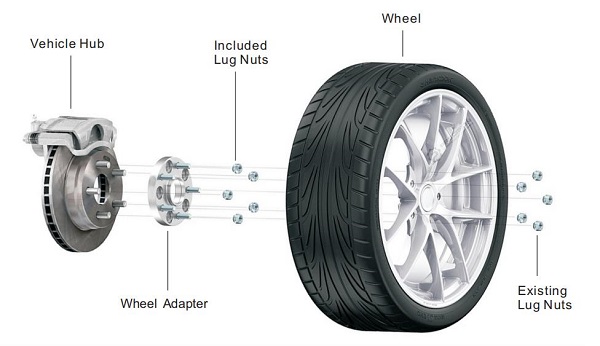

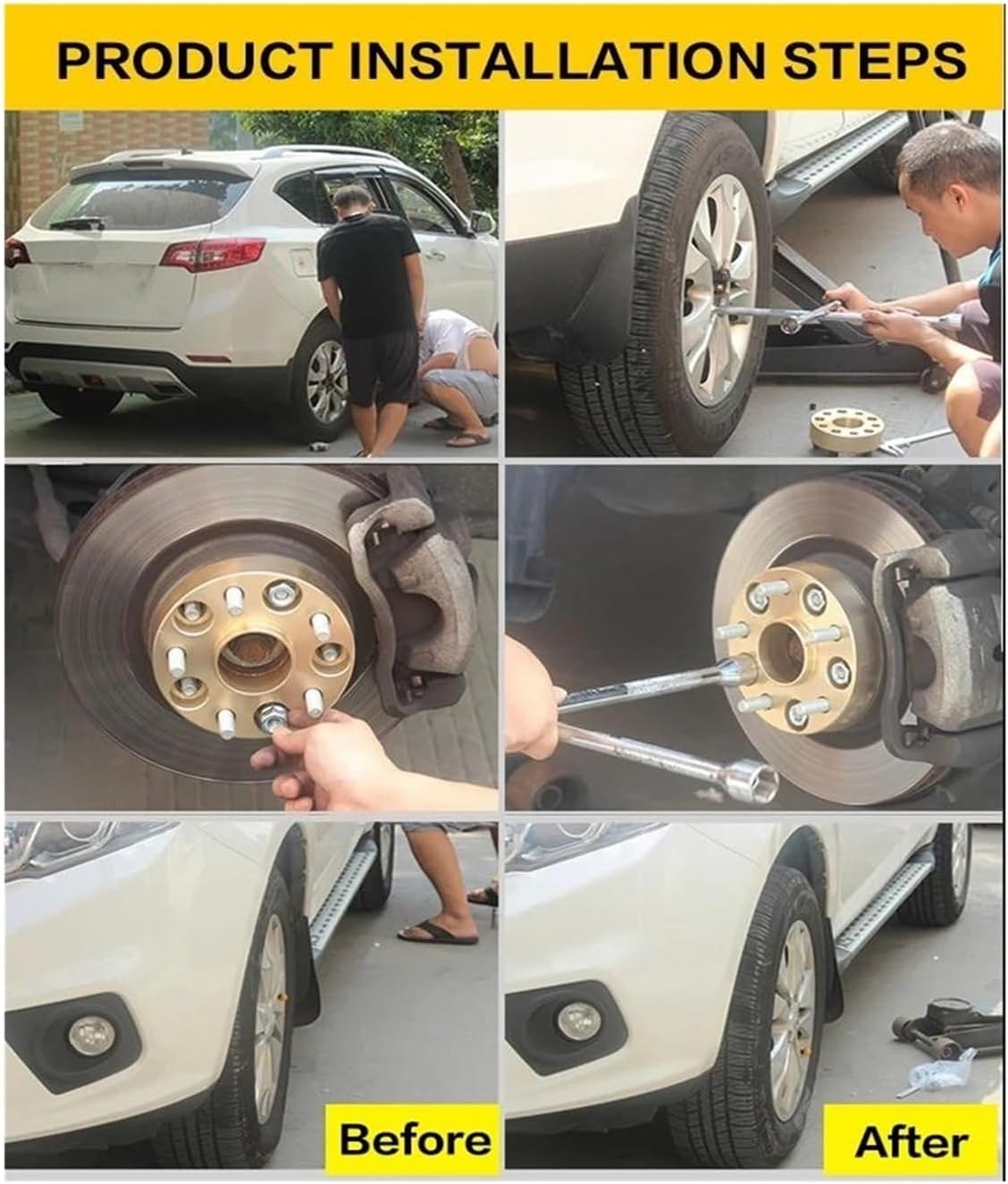

Wheel Spacers Installation Steps

Vehicle Preparation: Use a jack to lift the vehicle, remove the wheels, and clean the rust and oil from the wheel hub axle head and wheel hub contact surface.

Spacer Installation: Align the wheel hub gasket with the center hole of the axle head and smoothly attach it to the axle head surface; for bolt-fixed gaskets, tighten the fixing bolts first.

Wheel Reinstallation: Reinstall the wheel onto the gasket bolts and hand-tighten the nuts for initial fixation, ensuring the wheel and gasket are fully in contact.

Tightening Check: Lower the vehicle and use a torque wrench to tighten the nuts diagonally to the vehicle's specified torque; after driving 50-100 kilometers, recheck the torque.

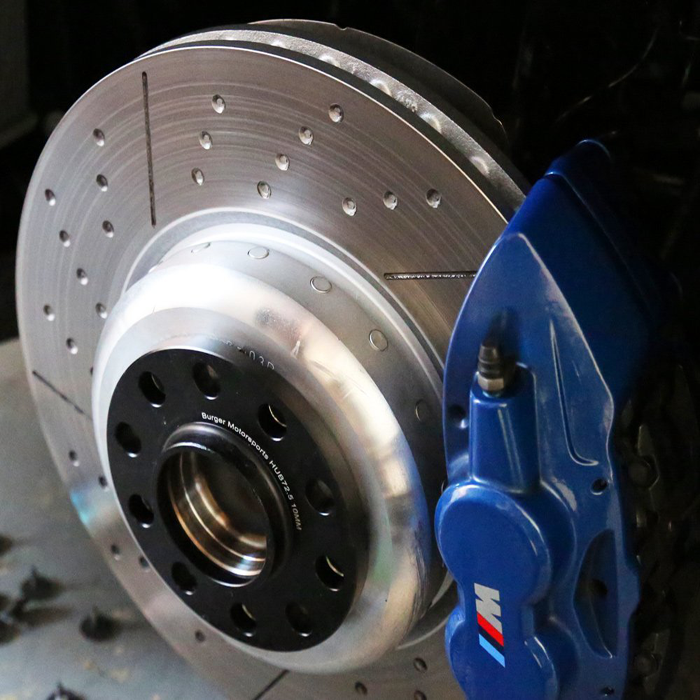

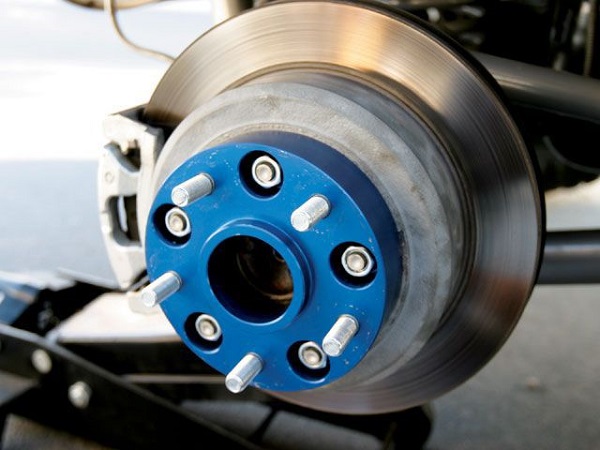

Wheel Spacers Applications：

Wheel spacers are primarily used in the automotive modification industry, suitable for sedans, SUVs, off-road vehicles, and racing cars: They solve installation interference problems associated with large wheels, wide tires, or modified brake calipers; widen the track to improve vehicle cornering stability and driving posture; and optimize the vehicle's visual appearance, enhancing its sporty feel.

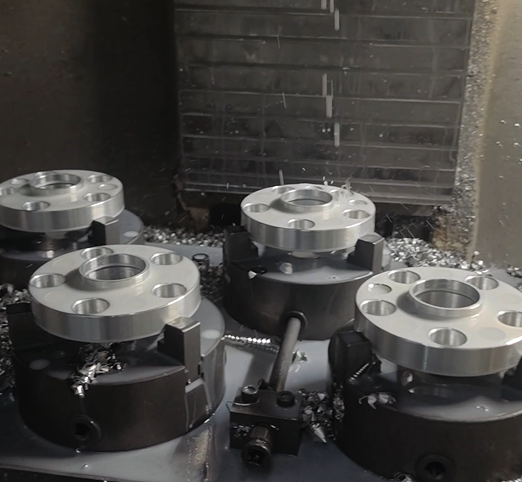

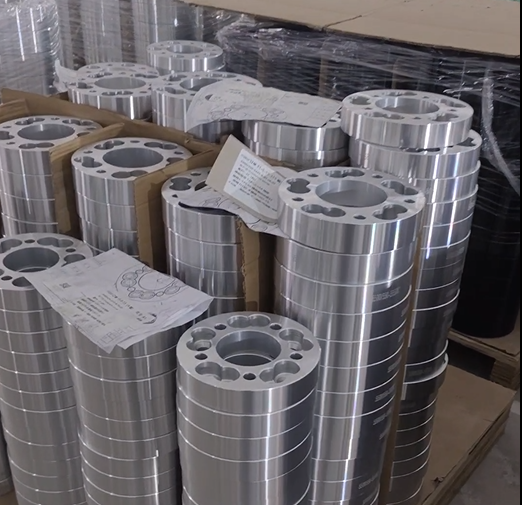

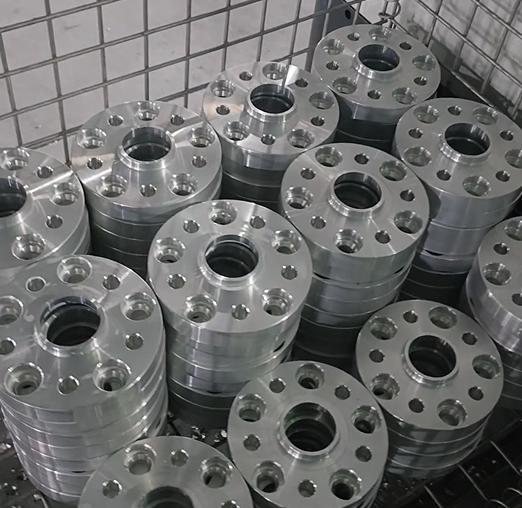

Wheel Spacers Production Steps

First, select raw materials such as aluminum alloys, then forge/roll them into blanks, followed by CNC precision cutting and drilling. Next, perform surface treatment and coating, and finally, after passing dimensional inspection and performance testing, package and ship the product.

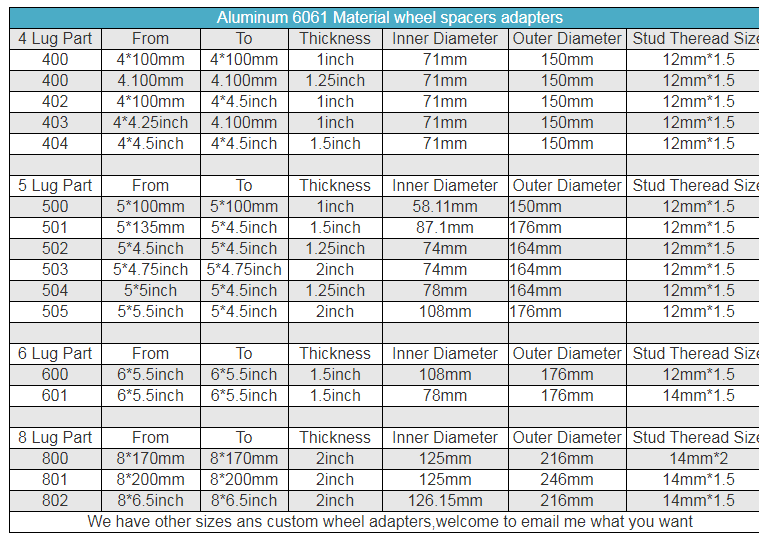

Wheel Spacers Specification

Buy Wheel Spacers from Yokelink

Revitalize your car's look and performance, starting with a premium wheel! Made from select high-strength forged aluminum alloy, the lightweight design reduces unsprung mass, resulting in faster acceleration and more agile handling. The trendy multi-spoke design, combined with a refined anodizing process, ensures corrosion resistance and colorfastness, balancing aesthetics and durability. Precisely matched bolt pattern and center bore diameter make it suitable for various car models, including sedans and SUVs, allowing for direct wheel replacement without complex modifications.
