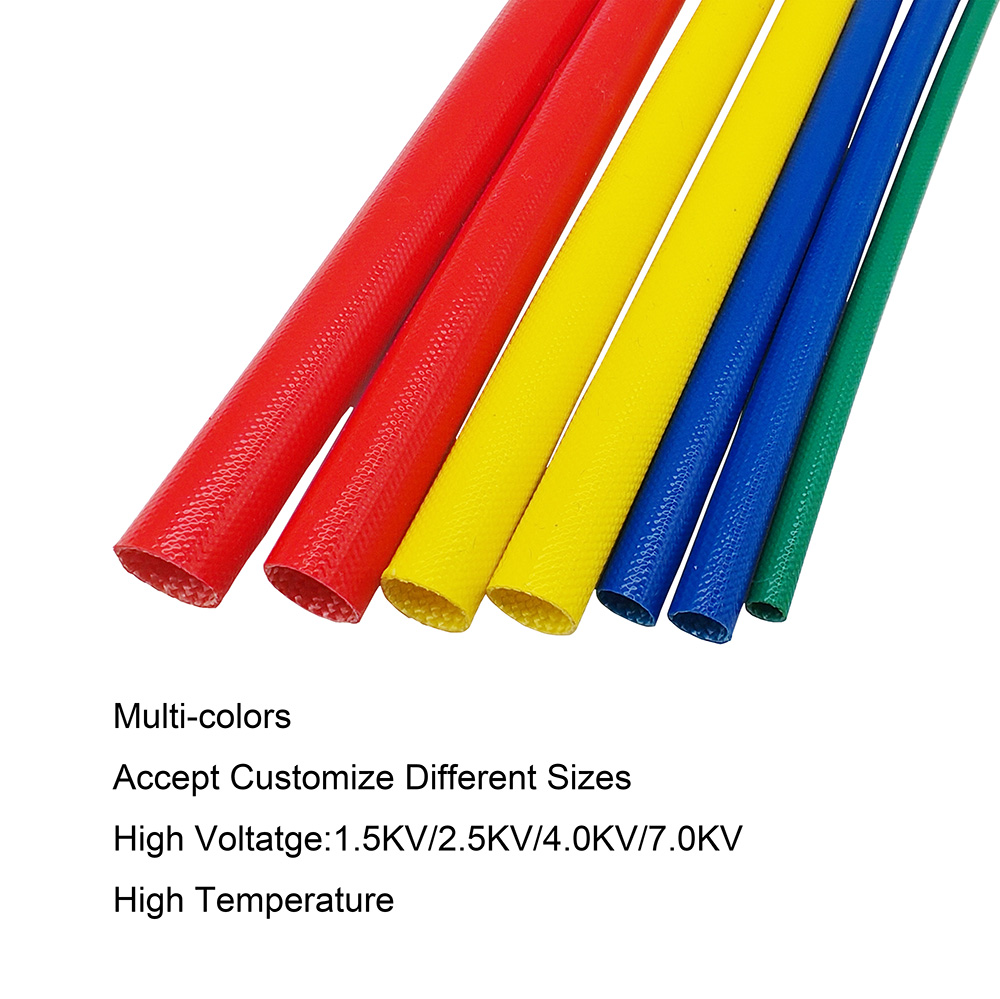

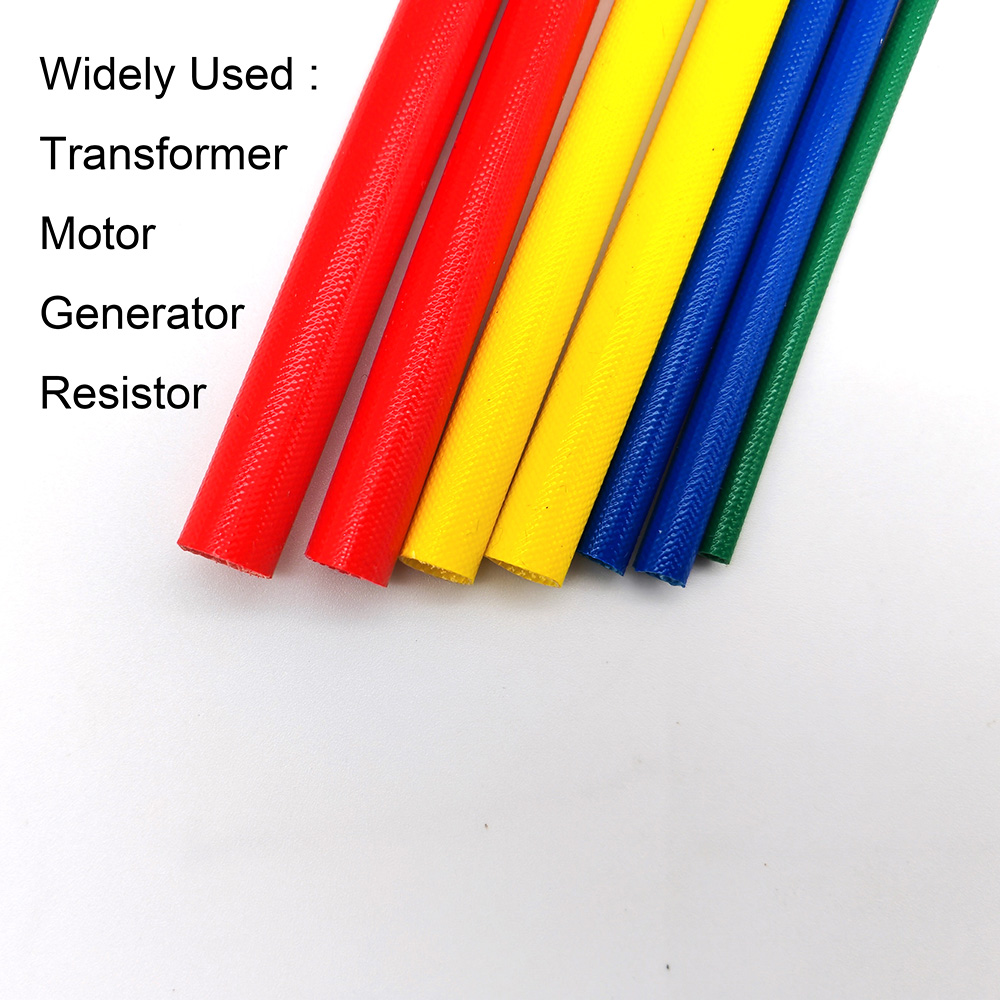

Fiberglass sleeve

2 month ago

6 0 

Dongguan Gushang Electronic Technology Co.,LTD

6 month

Product details

Fiberglass Sleeve is a high-performance insulation product designed to provide superior protection and durability for various electrical applications. This Insulation Fiberglass Sleeve is specifically engineered to meet the demanding requirements of industrial, commercial, and automotive environments where reliable insulation is essential. As an Insulation Sleeve for Motor, it ensures safe and efficient operation by preventing electrical short circuits, heat damage, and mechanical wear. The product is made from high-quality fiberglass material, known for its excellent thermal resistance, chemical stability, and mechanical strength. It is ideal for use in environments where exposure to high temperatures, moisture, or corrosive substances is common. The Electrical Fiberglass Sleeve offers a seamless solution for insulating wires, cables, and other components, making it a vital component in many electrical systems. The key features of this Insulation Fiberglass Sleeve include exceptional thermal resistance, which allows it to withstand high temperatures without degrading. Its non-conductive properties make it safe for use in electrical applications, reducing the risk of electrical shocks and ensuring user safety. The product is also resistant to a wide range of chemicals, including oils, solvents, and acids, making it suitable for use in harsh industrial conditions. Additionally, the Fiberglass Sleeve provides excellent mechanical strength, protecting the underlying components from physical damage.

Specification Sheet
Part No.	Specification （mm）	Inner Diameter（mm）	Voltage
Part No.	Specification （mm）	Inner Diameter（mm）	1500V	2500V
GSKJ-SGS-008	Φ0.8	0.8+0.2	0.28±0.05	0.35±0.05
GSKJ-SGS-010	Φ1.0	1.0+0.2	0.28±0.05	0.35±0.05
GSKJ-SGS-015	Φ1.5	1.5+0.2	0.28±0.05	0.35±0.05
GSKJ-SGS-020	Φ2.0	2.0+0.2	0.28±0.05	0.35±0.05
GSKJ-SGS-025	Φ2.5	2.5+0.2	0.30±0.05	0.35±0.05
GSKJ-SGS-030	Φ3.0	3.0+0.2	0.30±0.05	0.35±0.05
GSKJ-SGS-035	Φ3.5	3.5+0.3	0.38±0.05	0.42±0.05
GSKJ-SGS-040	Φ4.0	4.0+0.3	0.38±0.05	0.42±0.05
GSKJ-SGS-045	Φ4.5	4.5+0.3	0.38±0.05	0.42±0.05
GSKJ-SGS-050	Φ5.0	5.0+0.3	0.38±0.05	0.42±0.05
GSKJ-SGS-060	Φ6.0	6.0+0.5	0.43±0.05	0.45±0.05
GSKJ-SGS-070	Φ7.0	7.0+0.5	0.43±0.05	0.45±0.05
GSKJ-SGS-075	Φ7.5	7.5+0.5	0.43±0.05	0.45±0.05
GSKJ-SGS-080	Φ8.0	8.0+0.5	0.43±0.05	0.45±0.05
GSKJ-SGS-090	Φ9.0	9.0+0.5	0.43±0.05	0.45±0.05
GSKJ-SGS-100	Φ10	10+0.7	0.47±0.05	0.53±0.05
GSKJ-SGS-110	Φ11	10+0.7	0.47±0.05	0.53±0.05
GSKJ-SGS-120	Φ12	12+0.7	0.47±0.05	0.53±0.05
