X-Axis Simplified Adjustment Unit - Feed Screw

X-Axis Simplified Adjustment Units are components designed to provide precise adjustments along the X-axis of machinery and equipment. These units allow users to easily fine-tune the position of tools, fixtures, or workpieces for improved accuracy and efficiency. They are essential in CNC machining and assembly processes, ensuring that parts are correctly aligned to enhance overall production quality and consistency.

Model Number	Table Size(mm)	Travel(mm)	Load capacity	Minimum Scale	Straightness	One revolution of displacement	Weight(kg)
30A-DT40	30x20	40	39.2N(4kgf)	1 mm	0.01 mm	0.08 mm	0.11
30A-DT70	30x20	70					0.14
30A-DT100	30x20	100					0.17

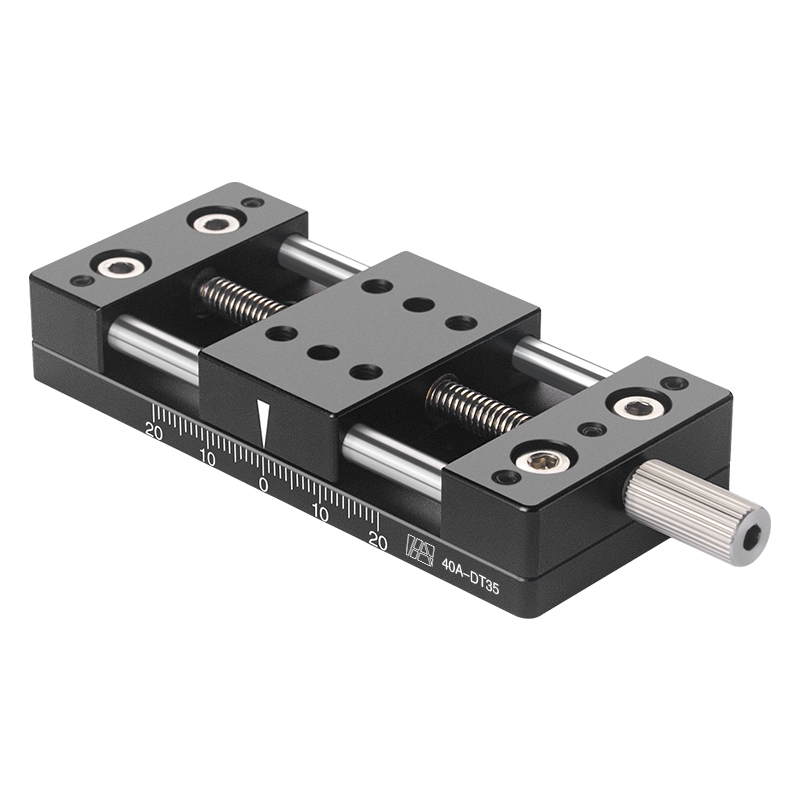

40A-DT35	40x25	35	39.2N(4kgf)			1 mm	0.14

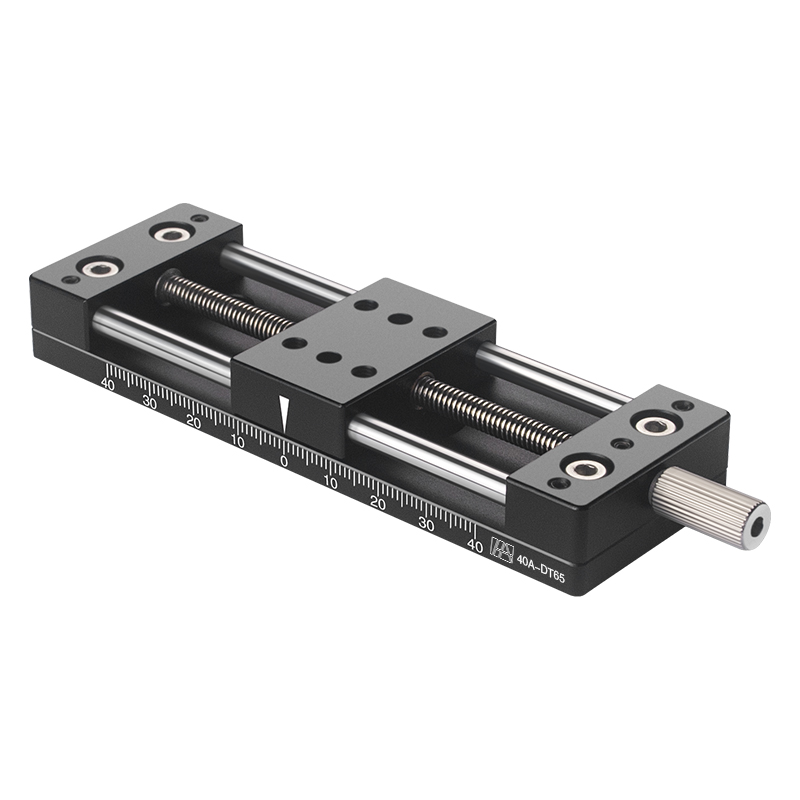

40A-DT65	40x25	65					0.17
40A-DT95	40x25	95					0.21
60A-DT50	60x40	50	78.4N(8kgf)			1.5 mm	0.32
60A-DT80	60x40	80	68.6N(7kgf)				0.36

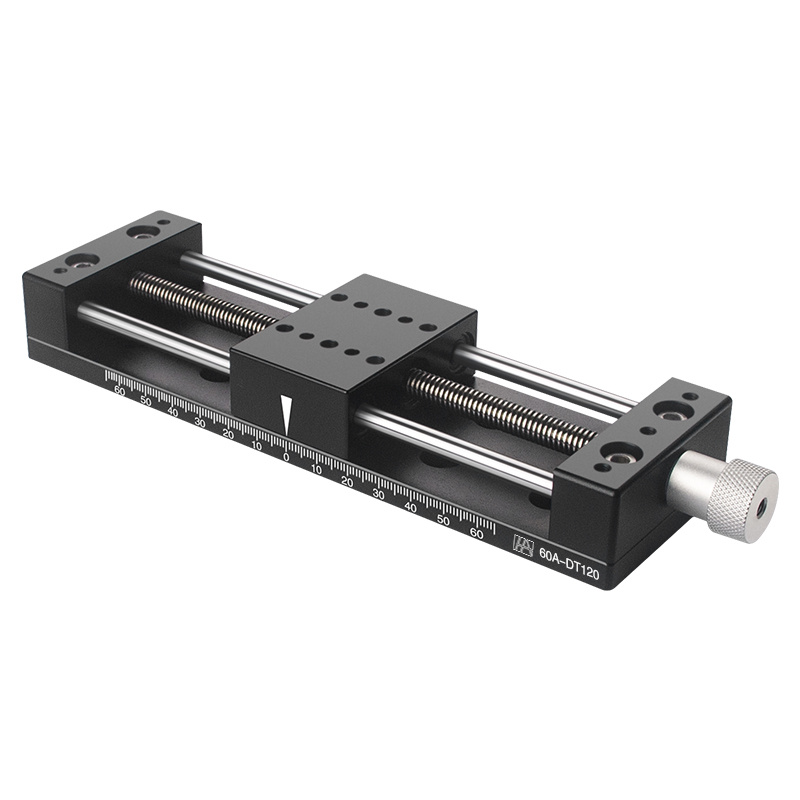

60A-DT120	60x40	120	58.8N(6kgf)				0.42

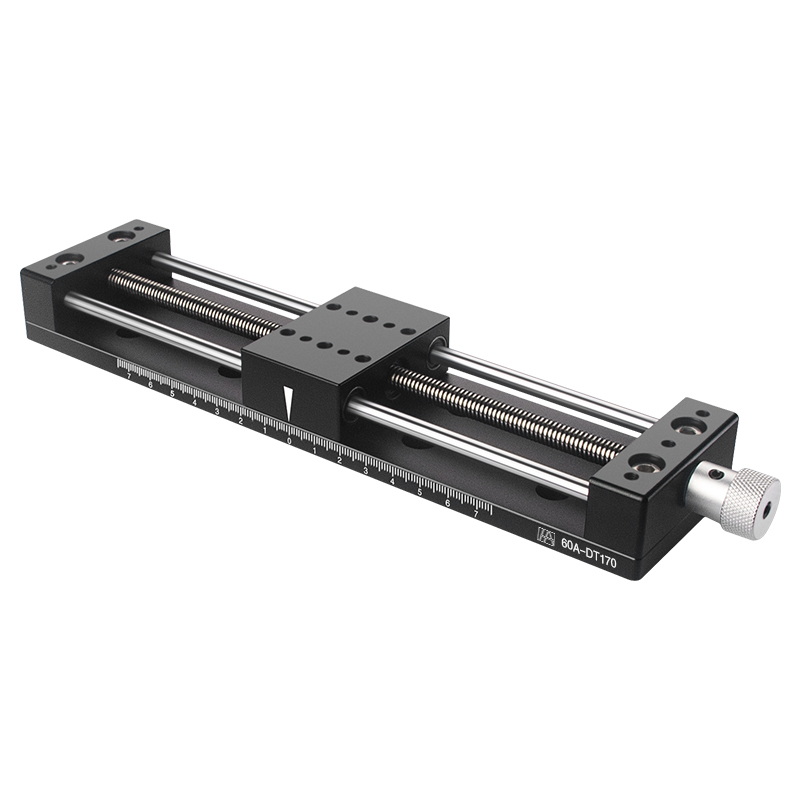

60A-DT170	60x40	170	49N(5kgf)		0.02 mm		0.79

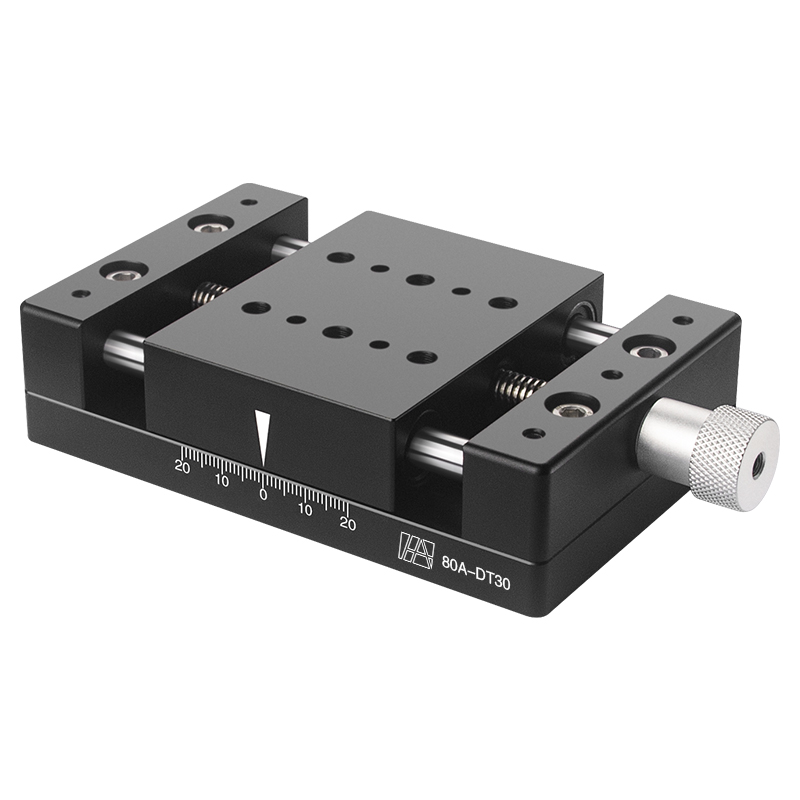

80A-DT30	80x60	30	98N(10kgf)		0.01 mm	1.5 mm	0.62
80A-DT60	80x60	60					0.76
80A-DT100	80x60	100					0.9
