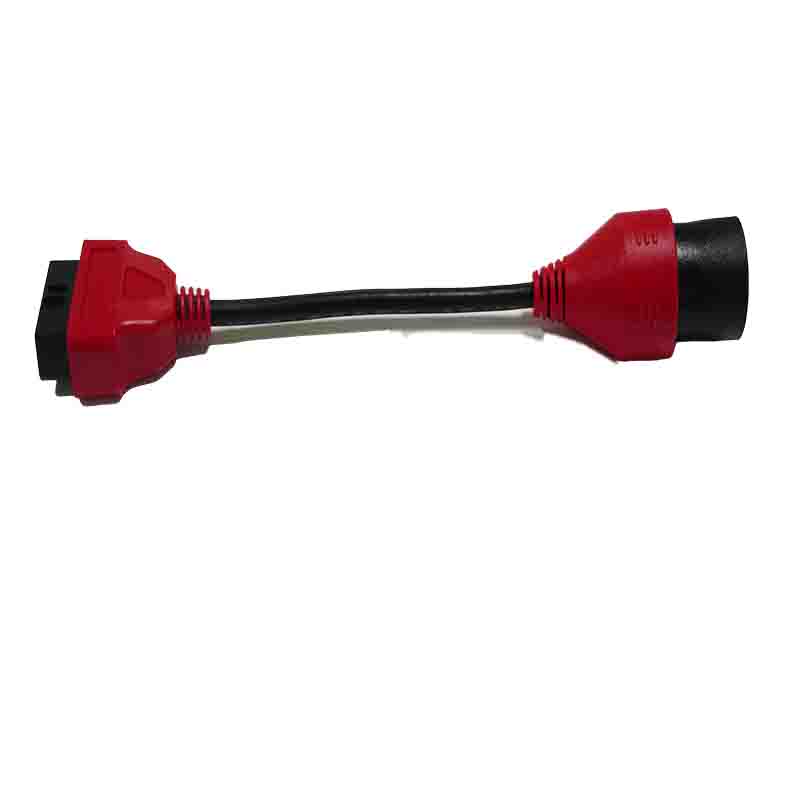

Tailored exclusively for FORD and MAZDA vehicles equipped with the 17-pin diagnostic interface, the Red OBDII-16P Female to 17P Male Connector (L=280mm) serves as an indispensable connectivity bridge between standard OBDII diagnostic tools and legacy or specific models of these two brands. This adapter effectively resolves the compatibility gap between modern 16-pin OBDII scanners and the 17-pin data link connectors (DLC) found in numerous FORD and MAZDA vehicles, enabling seamless diagnostic access for maintenance and repair professionals.

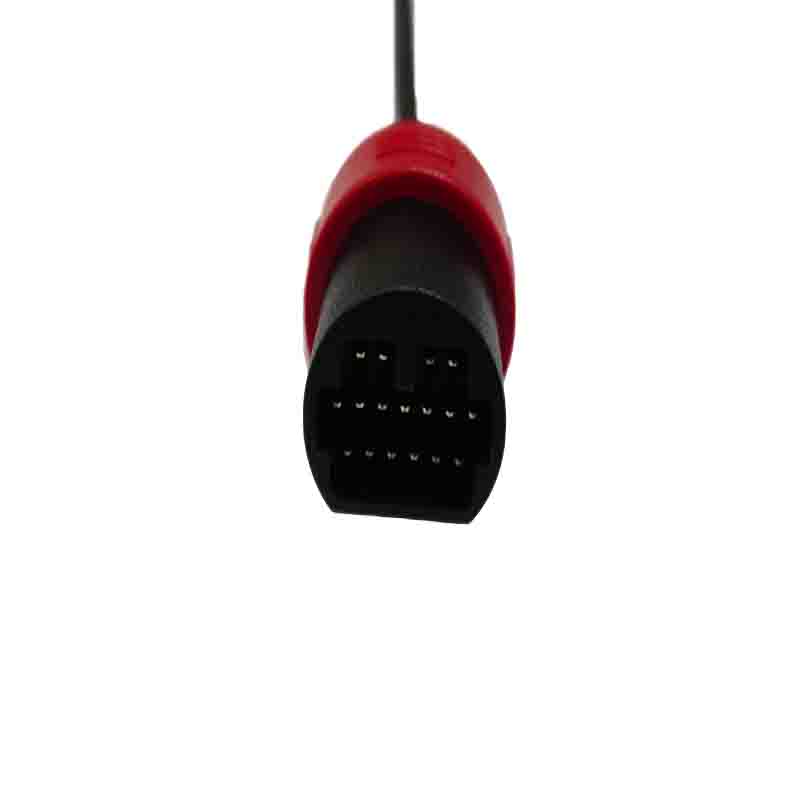

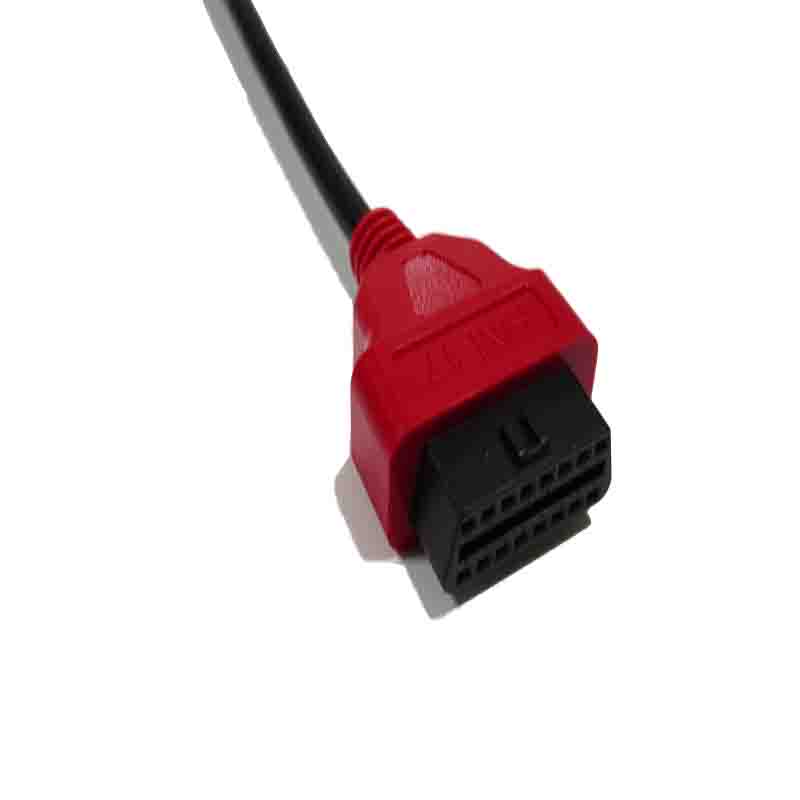

At the heart of this product’s functionality is its precise pin configuration that aligns with FORD and MAZDA’s diagnostic protocols. The OBDII-16P female connector complies with SAE J1962 and ISO 15031-3 standards, ensuring reliable connections for critical signals such as CAN High/Low, K-Line, and power/ground terminals. It seamlessly converts to a 17P male connector that directly mates with the dedicated DLC of compatible FORD and MAZDA models, unlocking full diagnostic capabilities including reading/clearing diagnostic trouble codes (DTCs), monitoring real-time vehicle parameters (e.g., engine RPM, coolant temperature), performing actuator tests, and resetting service intervals. This adapter is particularly vital for older FORD and MAZDA models that lack standard 16-pin OBDII ports, allowing technicians to use modern diagnostic equipment without compromising functionality.
Constructed for durability in harsh automotive environments, the connector features a robust red housing made from flame-retardant PBT thermoplastic, offering excellent resistance to high temperatures (-40℃ to +125℃), vibration, and chemical exposure. The 280mm cable is engineered with 18 AWG oxygen-free copper conductors and PVC insulation, ensuring low contact resistance (<100mΩ) and stable signal transmission with minimal interference. This length provides optimal flexibility during diagnostics, allowing technicians to operate tools comfortably without restricting access to the vehicle’s interior or straining the connection.
Boasting broad compatibility, this adapter works with a wide range of FORD and MAZDA models, including classic and modern variants such as FORD Fiesta, Focus, Mondeo, and MAZDA 3, 6, CX-5. It is fully compatible with popular diagnostic devices like Foxwell scanners, AVDI Commander for FORD-MAZDA, and FCom USB interfaces, supporting key protocols including ISO 9141-2, J1850 PWM, and CAN. The plug-and-play design eliminates the need for complex wiring or software configuration, while the bright red housing enhances visibility in busy workshop settings, simplifying quick identification and connection.
In summary, the FORD-MAZDA 17P-Specific Red OBDII-16P Female to 17P Male Connector (L=280mm) combines precision engineering, rugged construction, and wide-ranging compatibility to deliver a reliable diagnostic solution. Whether for routine maintenance, complex repairs, or advanced system tuning, this adapter ensures unobstructed access to FORD and MAZDA’s on-board systems, saving time and improving diagnostic accuracy for automotive professionals. It also comes with RoHS certification, guaranteeing compliance with international environmental standards.
