Low Noise Silicone Dispensing Machine

7 month ago

104 0 

Guangdong Mingzheng Equipment Manufacturing Co., Ltd.

8 month

Product details

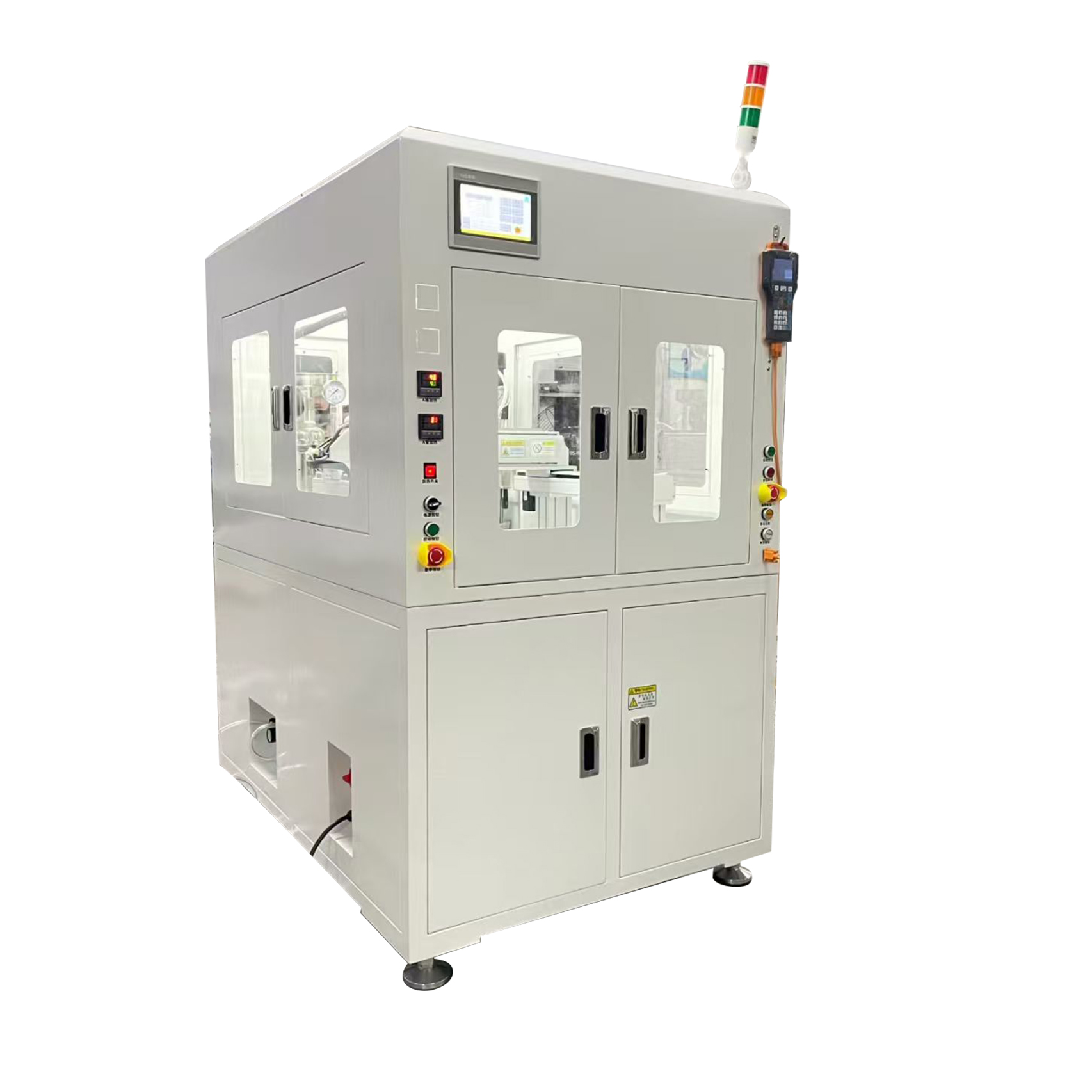

Enclosed Inline 3 Axis Dispensing Machine

Stable Inline Dispensing for High-Volume Manufacturing

The Enclosed Inline 3 Axis Dispensing Machine is built for factories that need reliable dispensing performance in continuous production. Instead of moving products between different stations, this system connects directly with the existing conveyor line and completes dispensing while products are transferred automatically.

Parameter	Detail
Equipment Name	Inline 3-Axis Linear Module Dispensing Machine
Motion Structure	XYZ 3-axis independent drive, ball screw / timing belt dual transmission optional
Repeat Positioning Accuracy	±0.01mm
Max Movement Speed	800mm/s
Customizable Travel Range	300×300mm ~ 800×800mm
Module Treatment	Stress relief aging process, no deformation under long high-speed running
Conveying System	Anti-static belt/roller conveyor, servo dynamic tracking dispensing, no workpiece stop required
Single-Component Glue Supply	Pressure tank + retractable valve, air pressure 20–800KPa adjustable
Two-Component AB Glue Supply	High-precision plunger pump + static mixer, mixing ratio adjustable 1:1 ~ 10:1, bubble-free
Operation Mode	Touch screen HMI + handheld teaching pendant, graphical path programming, multi-product file storage
Safety Configuration	Fully enclosed protective housing, photoelectric safety sensors, multi-point emergency stop buttons
Optional Extension Function	Automatic needle cleaning module
Target Application Scenarios	3C electronics, SMT mounting, home appliance mass standardized production lines

Using a high-rigidity XYZ motion platform, the machine provides smooth movement and accurate positioning during repeated operations. The X, Y, and Z axes work independently with linear guides and precision transmission structures, achieving repeat positioning accuracy up to ±0.01mm.As a Synchronous Conveyor Automatic Dispensing Line, it reduces manual handling steps and keeps the production rhythm stable.

Precise Glue Control and Easy Process Switching

A stable dispensing result depends on both motion accuracy and glue management. This equipment can be configured with different dispensing valves and supply systems according to adhesive characteristics, including silicone, epoxy, UV glue, and other liquid materials. For silicone-related applications, the machine can be integrated with Silicone Dispensing Systems to achieve smooth and controlled material flow, while the pressure control and back-suction function help reduce dripping and glue stringing.

The built-in control system supports touchscreen operation and handheld teaching programming. Operators can quickly set dispensing paths such as points, lines, and curves, then save different process files for future production. Compared with traditional manual methods, the 3 Axis Benchtop Dispensing Equipment design provides faster setup, better repeatability, and easier product changeover.

Why Choose Mingzheng

Mingzheng From standard models to customized production lines, our team focuses on helping customers improve efficiency, reduce labor dependence, and maintain stable product quality.For manufacturers looking for After-Sales Supported Inline Dispensing Systems, Mingzheng provides support from equipment planning and customization to installation and technical service.
