Product details

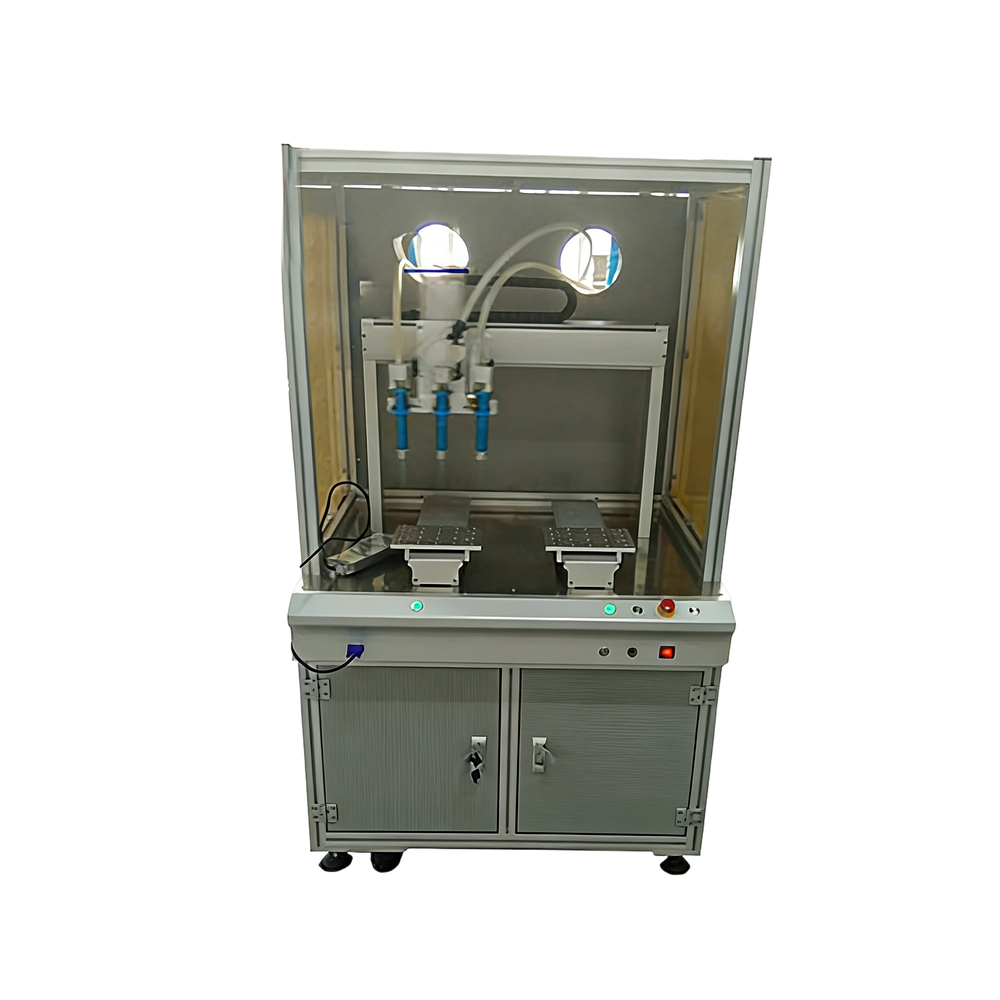

Inline 3-Axis Dispensing Machine

Stable Inline Dispensing with Precise XYZ Motion Control

The Inline 3-Axis Dispensing Machine is designed for factories that need consistent glue application in continuous production. By combining XYZ three-axis movement with conveyor synchronization, the machine allows products to move through the production line while completing accurate dispensing operations.

Parameter	Detail
Equipment Name	Inline 3-Axis Dispensing Machine
Motion Mode	XYZ three-axis servo linkage, ball screw transmission
Max Repeat Positioning Accuracy	±0.02mm
Supported Trajectory	Dot, straight line, arc and complex continuous curves
Glue Control System	Pressure/servo-driven dispensing valve, real-time pressure monitoring, vacuum back-suction anti-drip
Programming Method	Handheld teaching pendant coordinate marking, automatic trajectory generation
Adjustable Process Parameters	Dispensing speed, Z descent height, pre-dispense delay, close-glue delay, idle movement speed
Program Storage Capacity	Hundreds of independent product process files, one-click recall
Debug Tools	Needle calibration, height limit lock, origin reset, dry-run simulation test
Defect Prevention	Avoid glue stringing, needle collision, glue path deviation, dripping and needle clogging

The X and Y axes control the dispensing path on the working surface, while the Z axis adjusts the height of the dispensing needle. Driven by servo motors and precision transmission components, the system achieves repeat positioning accuracy up to ±0.02mm. As an Inline 3-Axis High Precision Dispensing Equipment, it can complete different dispensing paths including points, straight lines, circles, and curves, making it suitable for various industrial bonding and sealing applications.

Smart Programming and Reliable Glue Control

The machine uses a simple teaching programming system that allows operators to set dispensing routes directly through the controller. Production files can be saved, edited, and quickly called when changing products, reducing setup time for different orders. Parameters such as dispensing speed, needle height, glue delay time, and movement speed can be adjusted according to specific process requirements.

With vacuum suction technology, the equipment helps prevent glue dripping, stringing, and nozzle blockage after dispensing. For applications requiring stable liquid material handling, it can be combined with silicone dispensing equipment or other customized dispensing solutions to handle silicone, UV glue, epoxy resin, and similar industrial fluids. The system can also be configured as an automatic glue dispenser according to production requirements.

Why Choose Mingzheng

Mingzheng develops automation equipment based on real manufacturing needs, focusing on accuracy, efficiency, and easy operation. Compared with traditional manual methods, this dispensing machine improves product consistency, reduces material waste, and helps factories maintain stable quality during long-term production.

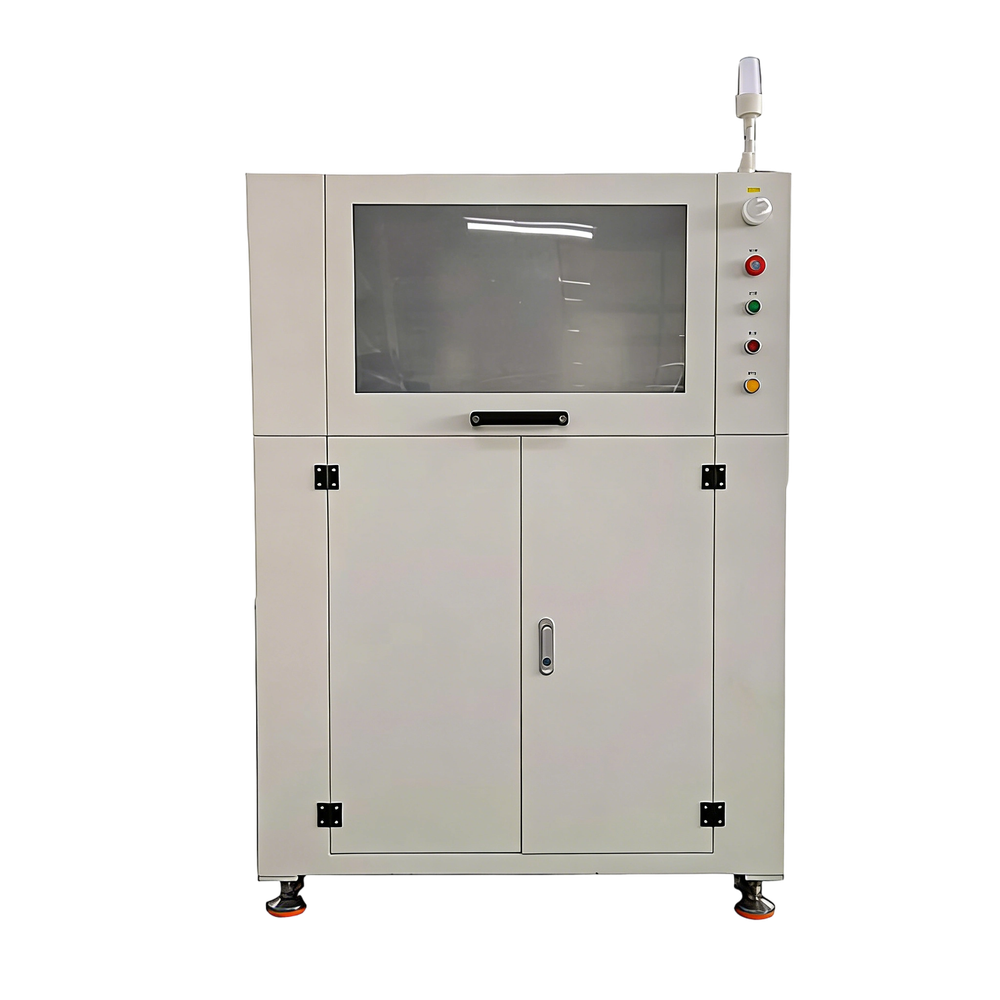

For companies needing a Closed Cabinet Inline 3 Axis Dispensing Machine, Mingzheng provides complete support from equipment design and manufacturing to installation and after-sales service. With practical automation solutions, we help customers build more efficient and reliable production processes.
