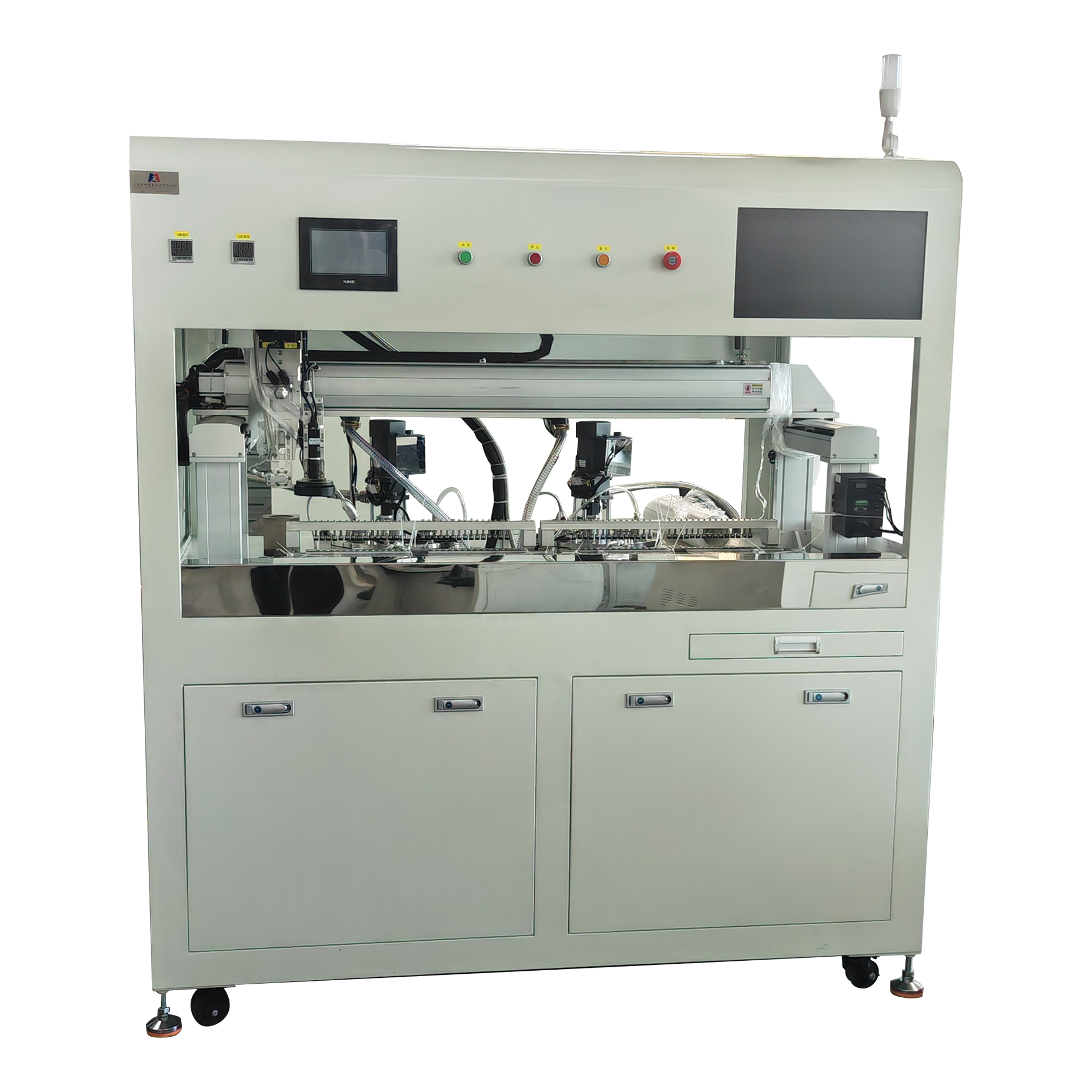

3 Axis Automatic AB Epoxy Resin Dispensing Machine
Accurate AB Ratio Control for Consistent Potting
The 3 Axis AB Epoxy Resin Dispenser is built for production lines that use two-component epoxy, PU, polyurethane or silicone adhesives. It uses separate A and B material paths and supports fixed mixing ratios from 10:1 to 1:1. Operators can enter the required ratio on the industrial touchscreen, save different settings and call them up when changing products. The system also calculates the matching B material amount automatically, so there is no need to work out the ratio by hand each time.
| Parameter | Specification |
| Model | MZ-AB-03 |
| Travel X/Y/Z | 500/300/100mm (customizable) |
| Z-axis Load | 6KG |
| Moving Speed | X&Y:500mm/s, Z:400mm/s |
| Mixing Ratio | 10:1 ~ 1:1 adjustable |
| Mixing Type | Dynamic / static mixing valve |
| Potting Accuracy | ±0.02g |
| Metering Valve | Screw valve |
| A/B Tank Capacity | 30L each, with heating, stirring & vacuum defoaming |
| Discharge Rate | 3~30g/s, digitally adjustable |
| Dispensing Head | 1~4 heads optional |
| Tank Heating Range | Ambient ~ 60℃ |
| Input Air Pressure | 0.4–0.8MPa |
| Working Air Pressure | 0.4–0.6MPa |
| Total Power | 6000W, normal operation:1000W |
| Repeat Positioning Accuracy | ±0.05mm |
| Dimension | 1320×1200×2055mm |
| Weight | ~400kg |
| Motor | Stepper motor |
| Transmission | Ball screw + linear guide rail |
| Control | PLC + HMI touch screen |
| Power Supply | AC220V |
| Working Environment | Temp:5~40℃, Humidity:20~90% non-condensing |
The A and B tanks hold 30L each. The A tank supports heating, stirring and vacuum functions, while the B tank provides stirring and vacuum functions. Heating can be set from room temperature to 60°C, and vacuum treatment helps remove air before dispensing. Depending on the adhesive, the machine can use a screw metering valve with either a dynamic or static mixing valve. This makes it suitable as 2 part epoxy dispensing equipment for materials with different flow characteristics.
Three-Axis Movement for Flexible Dispensing
As a floor-standing Automatic Two Component Potting Machine, the MZ-AB-03 has an X/Y/Z travel of 500/300/100 mm, with customized travel available for different workpieces. Its ball screw and precision linear guide provide stable movement, while the stepper motor system supports point-to-point and continuous line dispensing. The Z axis can carry up to 6 kg, and movement speed reaches 500 mm/s on X/Y and 400 mm/s on Z.
The machine supports point, line and full-surface potting, with one to four dispensing heads available according to production needs. Output can be digitally adjusted from 3 to 30 g/s based on adhesive properties, and dispensing accuracy reaches ±0.02 g. For manufacturers looking for a CNC dispensing machine that can handle different product shapes and dispensing paths, this setup offers useful flexibility without making operation complicated.
Easier Production Management and Cleaner Dispensing
The touchscreen stores multiple recipes, allowing operators to switch between products without entering every parameter again. Dispensing amount and time can be adjusted directly, while production counting and total glue output records make it easier to check capacity and material use. Fast start and stop control also helps achieve a clean cut-off with less dripping, stringing and adhesive waste. The machine can work with other automatic glue dispenser systems when a larger automated line is required.
For long-term operation, the equipment includes liquid-level monitoring and alarms for low material or ratio problems. An anti-curing design is also available with automatic cleaning or circulation functions to reduce the risk of adhesive blocking the lines. With PLC control, a touchscreen interface and a 220V power supply, this Floor standing AB Glue Potting Equipment can be used for connectors, electronic components, LED modules, circuit boards, optical lenses, switches and mechanical sealing applications.
Why Choose Mingzheng
Mingzheng builds AB dispensing equipment around the actual adhesive and product being processed. For the MZ-AB-03, the metering valve, mixing method, dispensing heads, working range and other settings can be adjusted according to the customer's material and potting process.
This makes the machine easier to fit into an existing production line instead of forcing every project into one fixed configuration. From equipment manufacturing and setup to commissioning, Mingzheng can support customers through the complete dispensing process.
