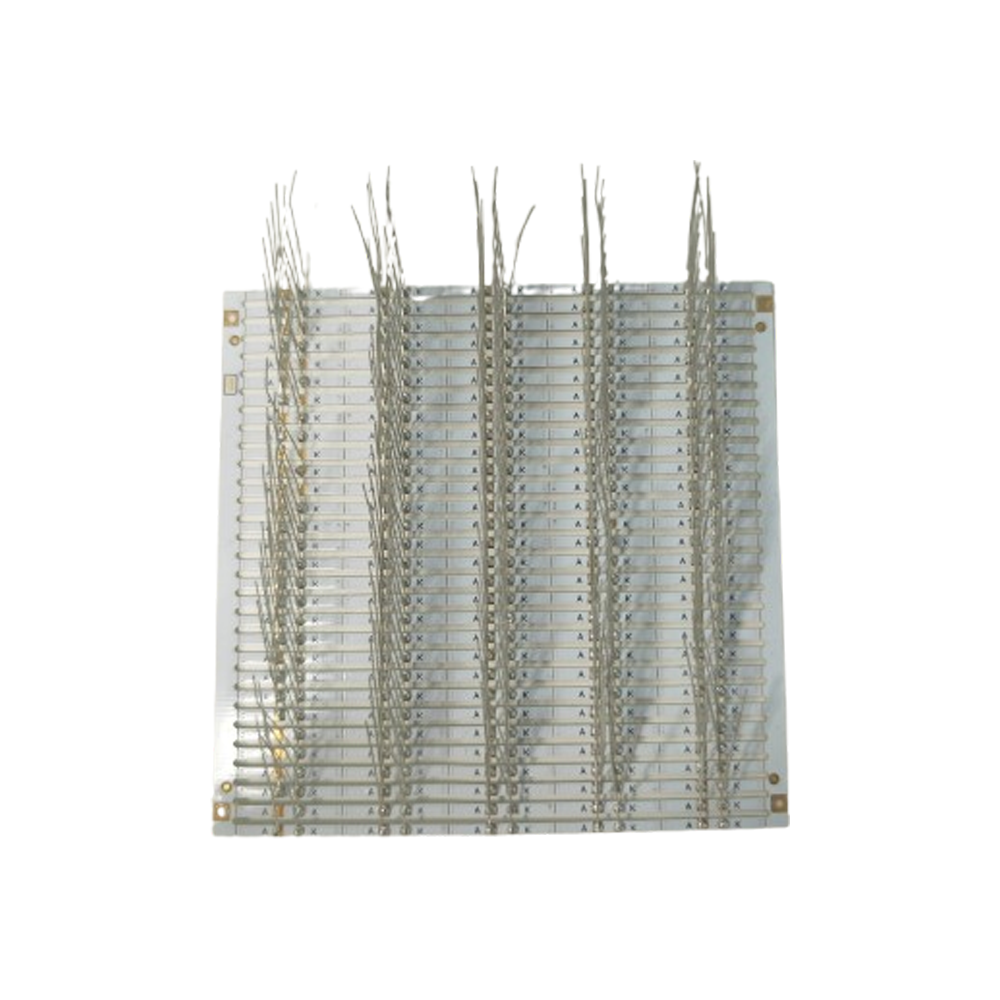

LED backlight welding wire machine

7 month ago

109 0 

Guangdong Mingzheng Equipment Manufacturing Co., Ltd.

8 month

Product details

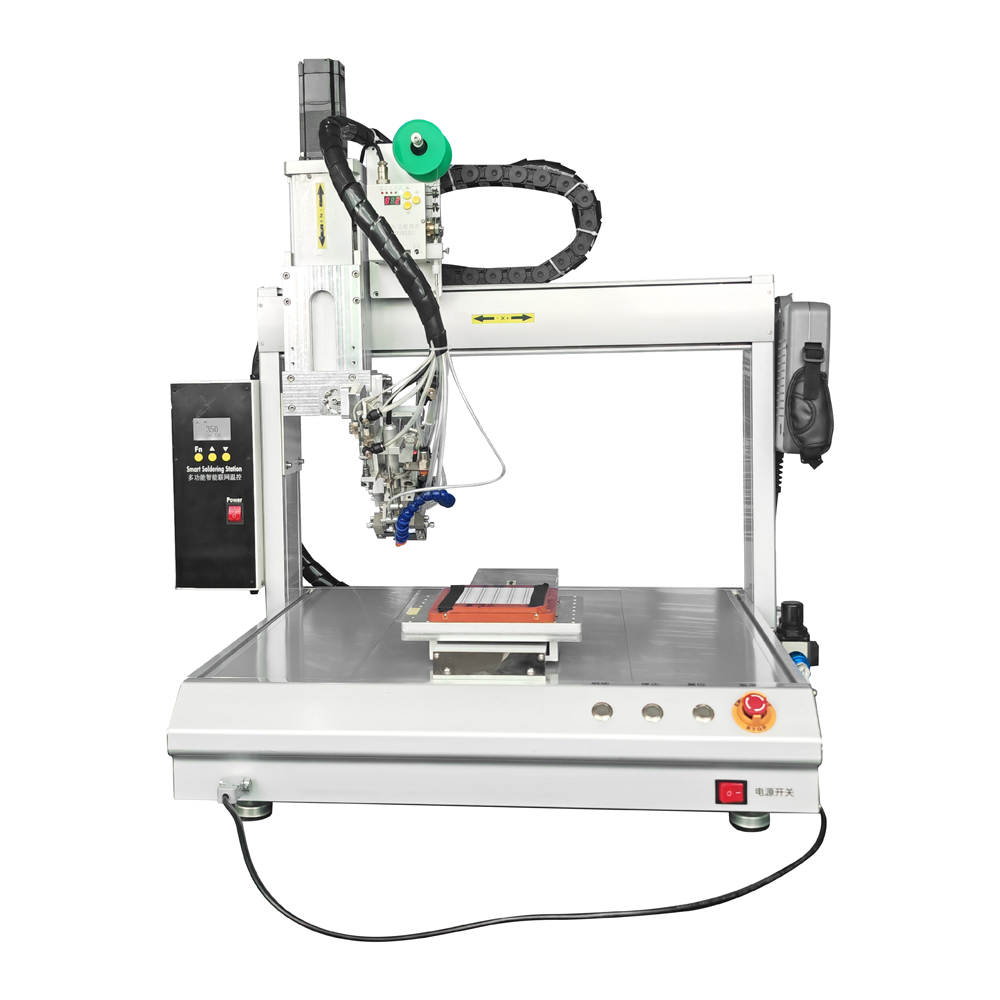

Energy Saving Benchtop 3 Axis Soldering Machine

Compact Automatic Soldering Solution for Precision Electronic Assembly

The Energy Saving Benchtop 3 Axis Soldering Machine is designed for manufacturers who need accurate soldering performance in a compact working space. Unlike traditional manual soldering methods, this equipment uses XYZ three-axis movement to control the soldering tip position, soldering temperature and tin feeding process automatically. It helps reduce operator skill dependence while improving solder joint consistency, making it suitable for small electronic components, PCB boards and precision assembly production.

Parameter	Detail
Equipment Name	Desktop 3-Axis Automatic Soldering Machine
Motion Structure	XYZ high-rigidity linear module, servo/stepper motor drive
Repeat Positioning Accuracy	±0.02mm
Temperature Adjustment Range	Room temperature ~ 500℃
Solder Feeding Mode	Step-type automatic wire feeder, independent adjustment of feeding volume & speed
Operation Terminals	Handheld teaching pendant + touch screen dual control
Program Storage Capacity	Hundreds of groups of independent soldering process programs
Supported Soldering Processes	Spot soldering, drag soldering, continuous soldering
Optional Configuration	Automatic flux supply, automatic tip cleaning, visual positioning compensation module
Frame Material	Lightweight aluminum alloy desktop frame, space-saving tabletop layout
Applicable Workpieces	PCB circuit boards, miniature electronic components and other small parts
Production Efficiency	3–5 times higher than manual soldering

The machine adopts a rigid linear motion structure driven by servo or stepper motors, providing stable movement and positioning accuracy up to ±0.02mm. The soldering head can move freely in three directions according to the programmed path, allowing the equipment to complete spot soldering, drag soldering and continuous soldering operations.

Smart Temperature Control and Flexible Soldering Operation

Equipped with an intelligent heating system, this Compact Benchtop Soldering Equipment supports precise temperature adjustment from room temperature to 500℃. The system maintains stable heat output during continuous operation, helping avoid problems caused by unstable manual soldering, such as cold joints, insufficient solder and excessive tin. The automatic solder feeding mechanism allows independent adjustment of feeding speed and solder amount, ensuring each solder point receives consistent material.

The machine is controlled through a handheld programmer and touch screen interface, with a simple teaching system that allows operators to create and save multiple soldering programs. As a practical Desktop Soldering Robot solution, it supports fast product switching and can store hundreds of process files.

Why Choose This Benchtop Automatic Soldering System?

As an advanced Energy Saving Desktop Soldering Systems solution, the machine reduces energy consumption through precise heating control and avoids unnecessary solder waste through accurate tin feeding. It can also be integrated with other automatic soldering system solutions to create a more efficient production workflow.

For manufacturers looking for a reliable auto soldering machine, this three-axis benchtop model offers a balance of accuracy, flexibility and cost efficiency. It is widely used in electronics assembly, cable processing, PCB manufacturing and small-batch precision soldering applications where stable quality and easy operation are required.
