Product details

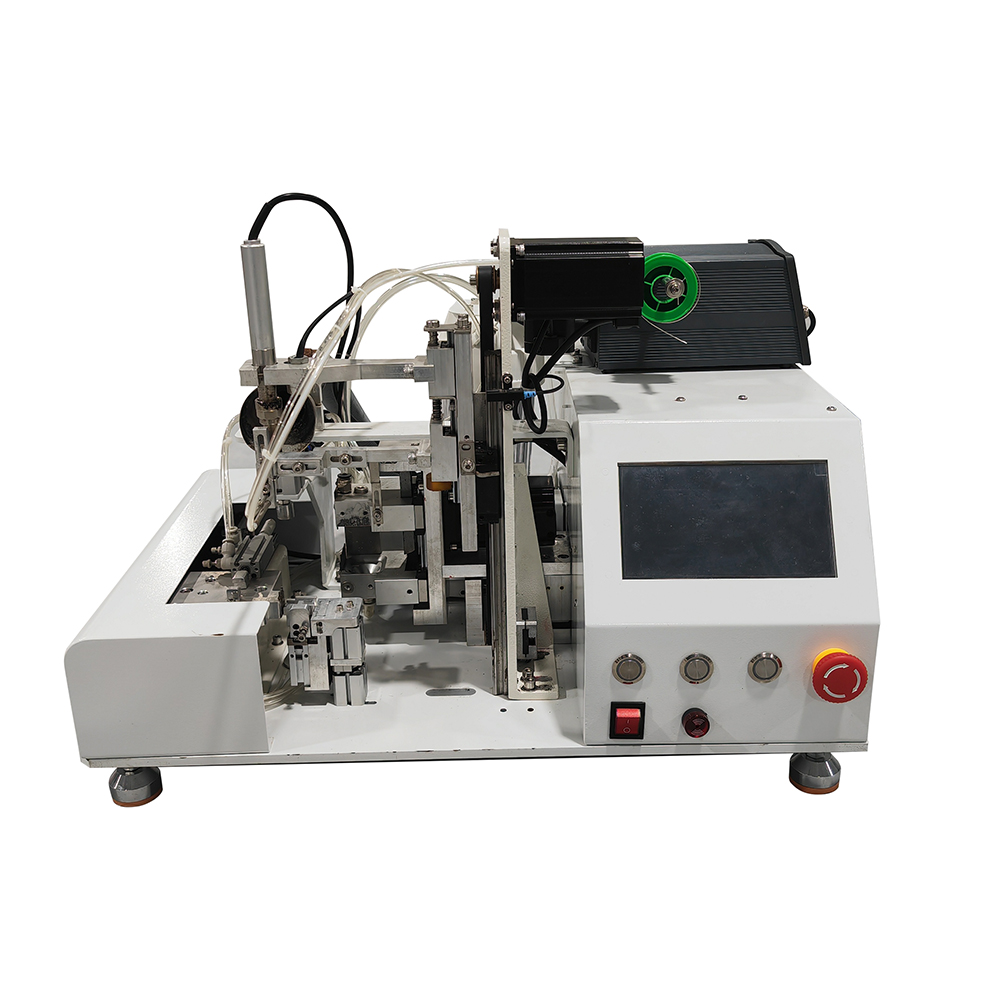

Desktop Automatic USB Soldering Machine

Reliable USB Wire Soldering with Faster Production Speed

The Desktop Automatic USB Soldering Machine is designed for manufacturers who need stable and efficient welding solutions for USB cables. It is specially developed for USB-A, USB-C, and Micro USB connectors, helping factories improve soldering quality while reducing dependence on manual work.

Parameter	Detail
Equipment Name	Automatic USB Data Cable Soldering Machine

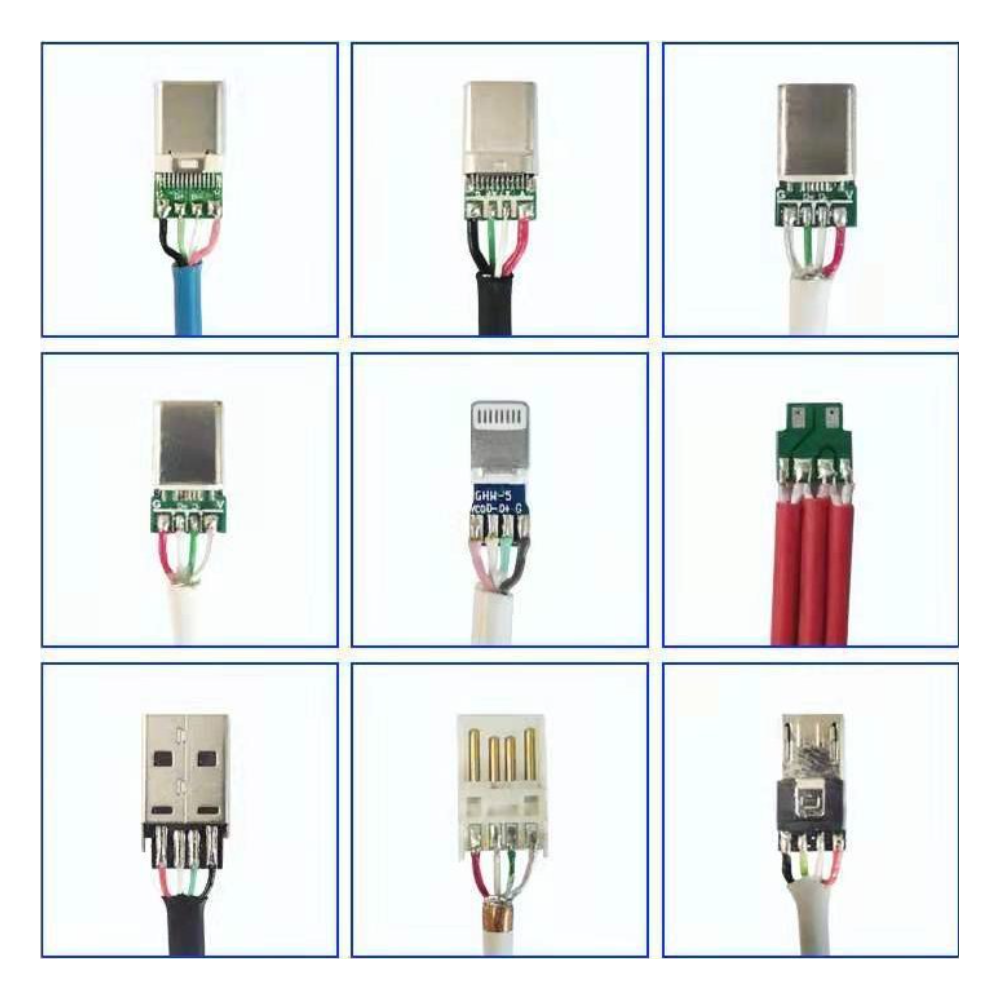

Compatible Connectors	USB-A, Micro USB, USB-C, Lightning; USB2.0 / USB3.0 full series
Positioning Accuracy	±0.02mm
Soldering Temperature Range	200℃ ~ 500℃, temp control accuracy ±2℃
Single Joint Soldering Time	1–2s
Min Solder Feeding Length	0.1mm
Hourly Output	400–600 pcs/hour, efficiency 5–8× manual work
Cold Solder Defect Rate	≤0.1%
Plugging Lifespan of Finished USB	≥10,000 cycles
Labor Replacement Capacity	1 machine replaces 6–8 skilled workers, only 1 loader/unloader required
Solder Wire Utilization	Increased by over 30% versus manual soldering
Control System	Industrial single-chip microcomputer, full parameter automatic control
Applicable Wires	Power wires, data cables, shielded wires of various cross-sections
Main Industries	Consumer electronics, industrial automation wiring harness, smart home accessories

Compared with traditional hand soldering, this Automatic USB Soldering Machine provides better control of soldering temperature, solder amount, and welding time. The customized positioning fixture keeps the USB connector and cable core accurately aligned, while the intelligent heating system ensures smooth solder joints with good conductivity and appearance. As a type of Precision PCB Soldering Equipment, it helps manufacturers reduce problems such as cold solder joints, uneven tin coverage, and inconsistent welding results.

Smart Temperature Control and Easy Operation

The equipment uses a high-frequency heating system with adjustable temperature control from 200℃ to 500℃ and temperature accuracy within ±2℃. The soldering tip heats up quickly and recovers temperature efficiently, allowing each soldering point to be completed within a short cycle time. The step-driven solder feeding system can adjust solder speed and feeding amount according to different wire sizes, helping avoid excessive solder and material waste.

The Desktop Soldering Robot supports simple programming and parameter adjustment, allowing operators to quickly set soldering positions and process requirements. With stable motion control and repeat positioning accuracy of ±0.02mm, it can maintain consistent performance during continuous production. For factories that require a complete automatic soldering system, this equipment can also be customized with additional functions to match different USB cable manufacturing processes.

Why Choose Mingzheng

Mingzheng focuses on developing automation equipment that solves real production challenges. For USB cable manufacturers, this automatic soldering robot solution reduces manual operation, improves solder joint consistency, and supports long-term stable production.

As a trusted supplier of High Speed USB Data Cable Soldering Line solutions, Mingzheng provides complete support from equipment customization and installation to technical service, helping companies build more efficient electronic assembly processes.
