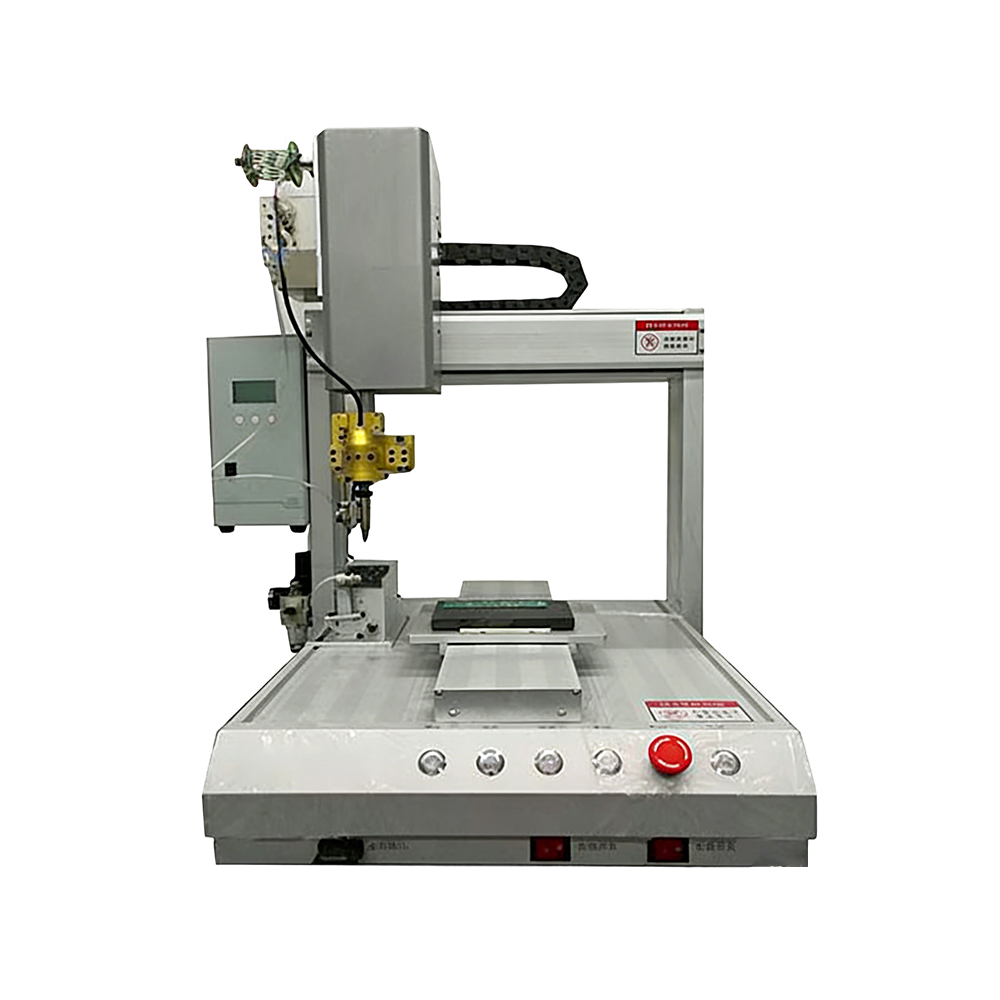

Coordinate Platform Soldering Machine

Precise Soldering Starts with Repeatable Motion

Soldering quality depends on more than temperature. The position of the soldering tip, the movement path, and the contact time all affect the final joint. When these steps are completed by hand, product consistency can vary from one operator to another. Mingzheng Coordinate Platform Soldering Machine delivers accurate, repeatable motion that keeps every soldering point under controlled conditions, making it an ideal Automatic Spot Soldering Machine for precision manufacturing.

Parameter	Details

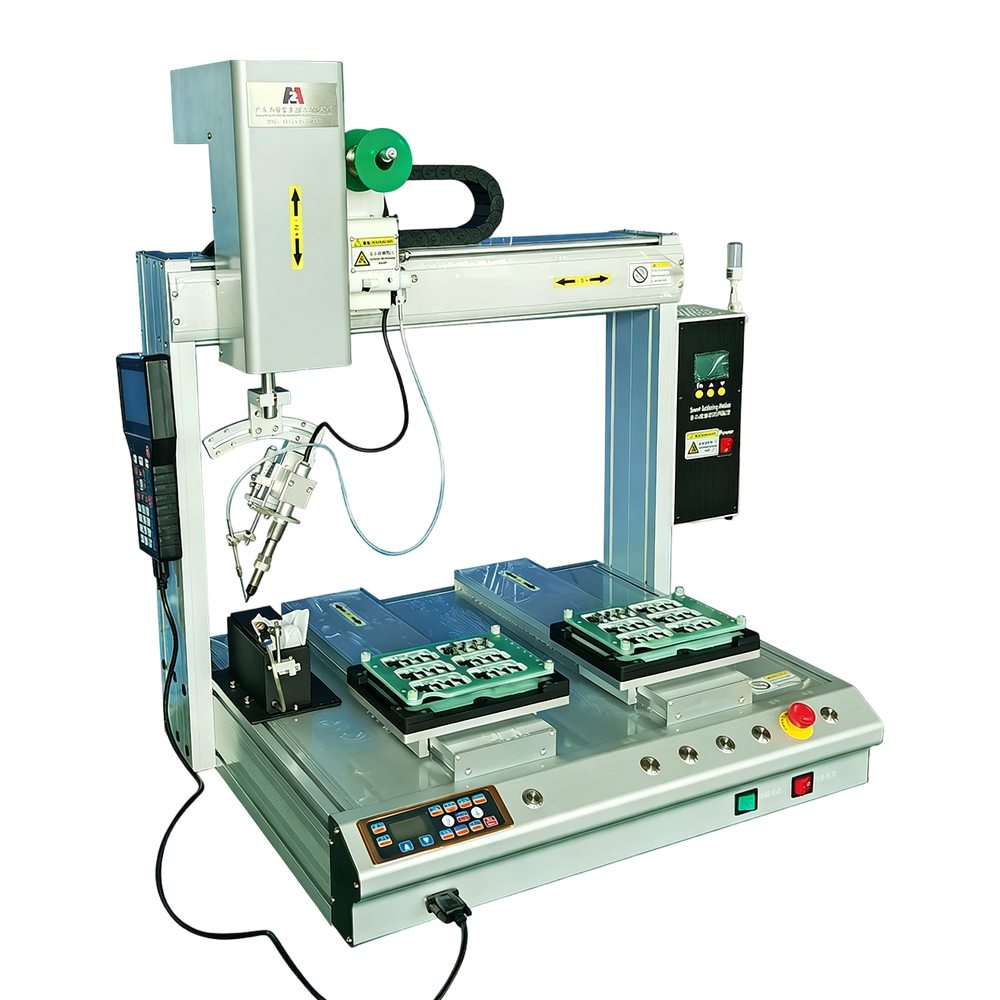

Model	MZ-HX01 Single-head Dual-station Automatic Soldering Machine
Travel Stroke	X:500mm / Y1:300mm / Y2:300mm / Z:100mm / R:360mm
Speed Range	0–800 mm/s
Repeat Positioning Accuracy	±0.02mm
Max Load	10KG
Working Mode	Dual-station left-right alternate operation
Drive System	Closed-loop motor + timing belt; ball screw optional
Program Storage	999 groups of programs
Control System	Handheld teaching pendant
Power Supply	AC220V

Using programmable X-Y-Z movement, the machine follows the same path for every cycle, helping manufacturers maintain stable solder joints across small electronic components, connectors, sensors, PCB assemblies, and wiring harnesses.

Flexible Programming for Multiple Product Models

Changing from one product to another should not require rebuilding the entire production process. This automated point soldering machine supports fast program switching, allowing manufacturers to store different soldering paths and process parameters for various product models.

The equipment can operate independently or become part of a larger automated soldering system, making it suitable for manufacturers expanding from manual production to intelligent automation. It also integrates smoothly with feeding devices, positioning fixtures, and inspection stations to improve production continuity without increasing labor requirements.

Built for Reliable Production and Future Expansion

As manufacturing demands continue to evolve, equipment must remain adaptable. This machine features a modular platform that allows future upgrades such as vision positioning, automatic loading, barcode traceability, and data collection. Whether used as a standalone Desktop Soldering Robot or integrated into a complete auto soldering machine production cell, it provides manufacturers with greater flexibility for future process improvements.

For companies seeking efficient, repeatable soldering without sacrificing production flexibility, this system offers a practical long-term solution.

Engineered by Mingzheng for Intelligent Soldering Solutions

Mingzheng we develop automation equipment around real manufacturing processes rather than standard machine designs. Our engineering team combines mechanical design, motion control, and process optimization to build soldering solutions that match each customer's products and production goals.

From standalone workstations to fully integrated automation lines, Mingzheng provides customized intelligent manufacturing solutions for customers worldwide. Our Coordinate Platform Soldering Machine reflects our commitment to precision engineering, dependable quality, and continuous innovation, helping manufacturers improve soldering consistency, increase productivity, and build more competitive production systems.
