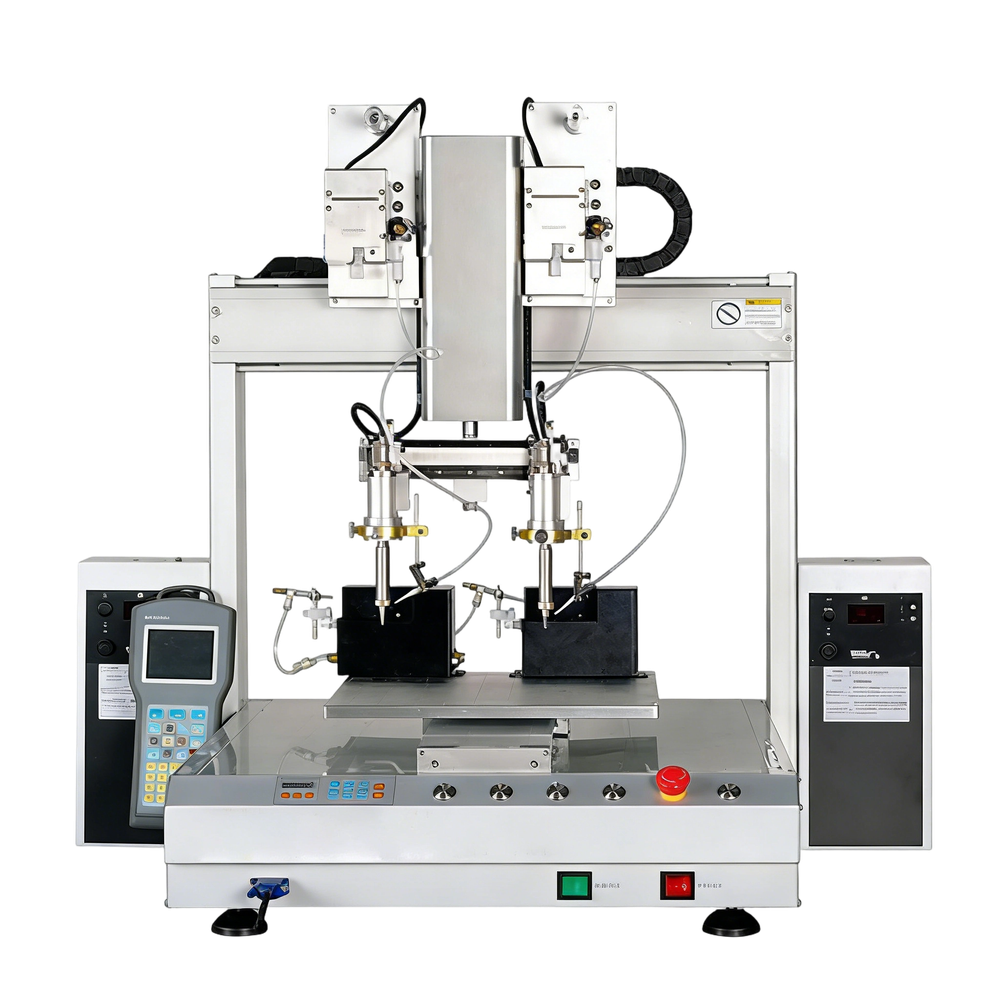

High Performance 5Axis Dual Head Benchtop Soldering Robot
Double Productivity with Dual Head and Dual Platform Soldering Design
For electronic manufacturers, soldering efficiency is not only about faster movement. The real challenge is keeping speed, accuracy, and soldering quality balanced when production volume increases. Traditional manual soldering requires experienced operators and becomes difficult to maintain consistent results during long working hours. Mingzheng High Performance 5Axis Dual Head Benchtop Soldering Robot is designed to solve this challenge by combining dual-head soldering, dual-platform operation, and precise five-axis motion control into one compact system.
| Parameter | Detail |
| Model | Benchtop 5-axis Automatic Soldering Machine |
| Production Advantage | Dual soldering heads & dual alternating stations, double production efficiency |
| Programming | Handheld teaching box, online/offline program via coordinate input |
| Motion System | 5-axis linkage with precision stepping motors, high positioning repeat accuracy |
| Soldering Process | Support spot & drag soldering, fully adjustable process parameters for micro soldering |
| Temperature Control | Fast heating system, reach 300°C within 10s, ±1°C temperature tolerance |
| Soldering Tip | High-frequency heating core; high-temperature anti-oxidation tips with hundreds of styles |
| Wire Feeder | Stepper motor driven solder wire feeding & cutting, high feeding precision |
| Fixture | Custom welding jigs available for different workpieces |
| Applicable Workpieces | Connectors, PCB components, LED, earphone/data cables, fuses, wire harness parts |
| Industry Coverage | Consumer electronics, power supply, automotive electronics, communication, motors & appliances |
| Customization | Non-standard customization supported |
Dual Platform Automatic SMD Soldering Equipment it can solder two products at the same time while the operator prepares the next workpiece on the opposite platform. This alternating workflow reduces waiting time between loading and soldering, helping manufacturers achieve higher output within limited production space.
Five-Axis Motion Control for Complex Soldering Processes
Different electronic products require different soldering paths, angles, and techniques. A fixed movement system cannot handle complicated solder points effectively. This Robotic Point Drag Soldering Machine uses multi-axis linkage with precision stepper motors and advanced motion control algorithms to achieve accurate positioning and repeatable soldering performance.
The system supports both point soldering and drag soldering modes. Users can directly set soldering coordinates through the programming interface or complete teaching operations with the handheld controller.
The intelligent temperature control system heats up from room temperature to 300°C within approximately 10 seconds and restores temperature quickly during continuous soldering, keeping temperature fluctuation within ±1°C. Combined with high-frequency heating technology and precision solder feeding control, it helps improve solder joint consistency for fine electronic connections.
Flexible Automation for Diverse Electronic Manufacturing Needs
This Automatic Soldering Machine For LED PCB Connectors is developed for manufacturers that need flexibility across different products rather than a single fixed application. The machine can be equipped with customized soldering fixtures and different soldering iron tips according to product structure, allowing it to handle connectors, PCB components, LED wires, earphone cables, data cables, and other electronic assemblies.
Compared with a standard auto soldering machine, this system provides more room for process adjustment. It can work as a standalone workstation or be integrated into a larger automated soldering system together with feeding equipment, testing systems, and production lines.
Why Choose Mingzheng for Customized Soldering Solutions
Mingzheng we understand that every electronic product has different soldering requirements. A successful automation project is not only about providing a machine, but also about matching the equipment structure, programming method, fixture design, and soldering process with the customer's actual production conditions.
With experienced mechanical engineers, control system engineers, and automation development capabilities, Mingzheng provides complete support from process analysis and equipment design to manufacturing and implementation. We specialize in customized automated soldering equipment solutions for industries including electronics, automotive components, communication products, power supplies, and precision assemblies.
