Product details

Technical Description of Fully Automatic Capping Machine

Equipment Overview

This unit is designed for high-speed packaging lines, achieving fully automatic tightening operations for circular caps (including standard caps and spray caps). The whole machine adopts a modular steel structure, integrating cap arrangement, bottle feeding, grasping, sealing and output modules. It is suitable for various containers with bottle heights ranging from 80 to 300mm and bottle widths from 25 to 150mm, and can be directly connected to the filling line to achieve continuous production.

Technical parameters

Working speed: 30-50 bottles per minute (adjustable according to bottle type)

Capping range: Compatible with various circular caps with diameters ranging from 20 to 68mm (including special bayonets for spray caps)

Applicable containers: Straight or irregular-shaped bottles with a height of 80-300mm and a width of 25-150mm (customized fixtures are required)

Equipment dimensions: 1200×2000×1500mm (length × width × height)

Overall weight: approximately 70kg (The main body is made of steel structure. Note: According to the material density, the original.

The vibrating disc, in conjunction with the servo track, realizes the directional sorting and supply of bottle caps

The lid-grabbing mechanism is equipped with a torque sensor to ensure consistent tightening force

The PLC control system supports parameter storage and one-click formula invocation when changing models

The machine will automatically alarm and stop when there is a shortage of bottles, caps or abnormal torque

Application scenarios

It is applicable to industries such as daily chemicals, pharmaceuticals, and food, and meets the requirements of automated packaging for water-based solutions, emulsions, sprays and other products. The equipment can quickly switch between different bottle types and cap types by adjusting the fixture and the capping head, meeting the requirements of flexible production.

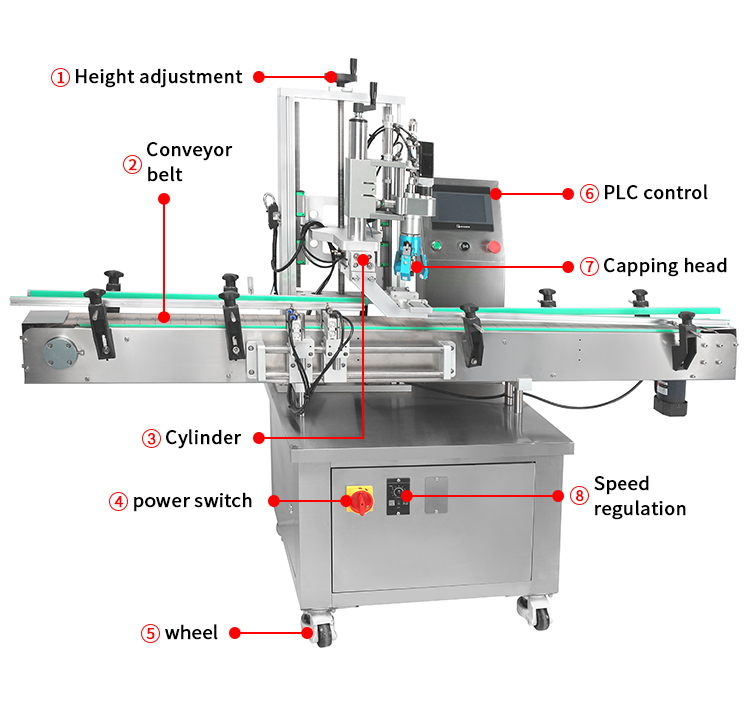

Introduction to Main Functions

1.Capping speed can beadjusted.Uses importedparts,stable performance anddoesn’ t hurt the bottle cap.

2.Hand wheel to adjust theheight of capping head baseon the bottle height.

3.PLC control panel,easy tooperate.

4.Connected to an aircompressor and no leakageof air,higher efficiency andquality.

5.Cylinder clamping bottles hasa good capping effect,stableperformance and isincompatible with all kinds ofpacking materials.

6.Capping force and diametercan be adjusted.Machine iseasy to clean.
