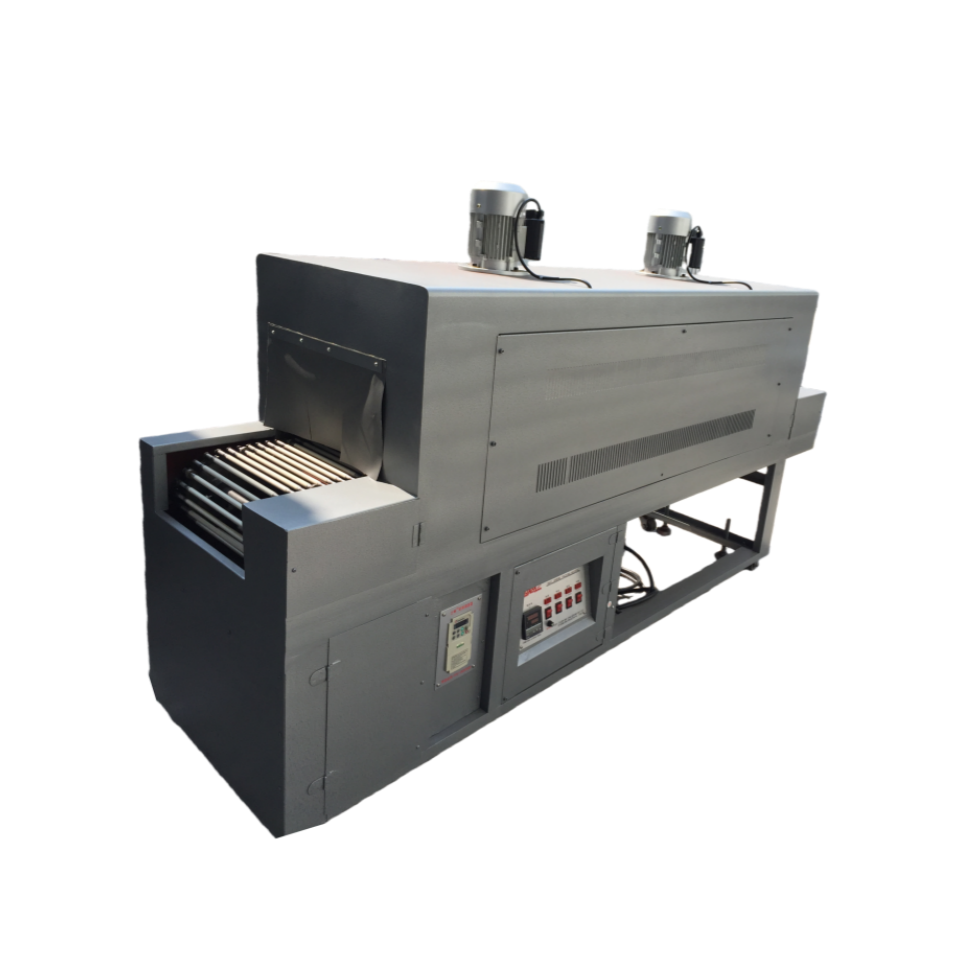

- 1. Two American “General” high-temperature resistant high-speed fans with adjustable airflow are installed above the heating chamber.
- 2. An automatic temperature control circuit is formed by imported “Mitsubishi or Fuji” AC contactors and domestic temperature controllers from renowned manufacturers, with a maximum temperature of ≤250°C.
- 3. Utilizes our factory's high-efficiency elliptical U-shaped side-insertion metal far-infrared heating tubes, powered by 380V three-phase four-wire supply, rated at 18kW.
- 4. Equipped with imported drive motors paired with “Shilin” variable frequency speed controllers, handling weights ≤30kg at adjustable speeds of 0-20m/min.
- 5. Utilizes national standard 4-inch chain with Φ6 chain sprocket holes. Conveyor shaft branches are made of Ф10 round steel, covered with red silicone tubing. All shaft branches rotate, with a center distance of approximately 26mm and a spatial distance of 18mm.
- 6. The control switch on the nameplate uses a Japanese “Kawamura” air protection switch.
- 7. The side cover beneath the heating chamber can be opened to clean up scattered debris inside the chamber, facilitating maintenance.
- Packing large items such as aluminum ladders to improve packaging efficiency.
- Used in aluminum ladder production, sales, logistics and other fields.
- 1. Machine external dimensions (L×W×H mm): 2600×700×1400;
- 2. Heating chamber channel dimensions (L×W×H mm): 2000×400×200;
- 3. Machine inlet and outlet ends each have 200mm clearance.
- Adaptable to packaging diverse categories, small batches, and multiple specifications of daily consumer goods
- Sealed packaging protects daily goods from dust, moisture, contamination, and counterfeiting, extending shelf life
- Plastic-sealed products maintain neat appearance, enhancing visual appeal and brand quality for supermarket displays and shipping
- Can integrate with heat shrinking packing machine to form automated packaging lines, reducing labor by over 50%
